USB DVI LCD Console with USB Peripheral Support
CL6700

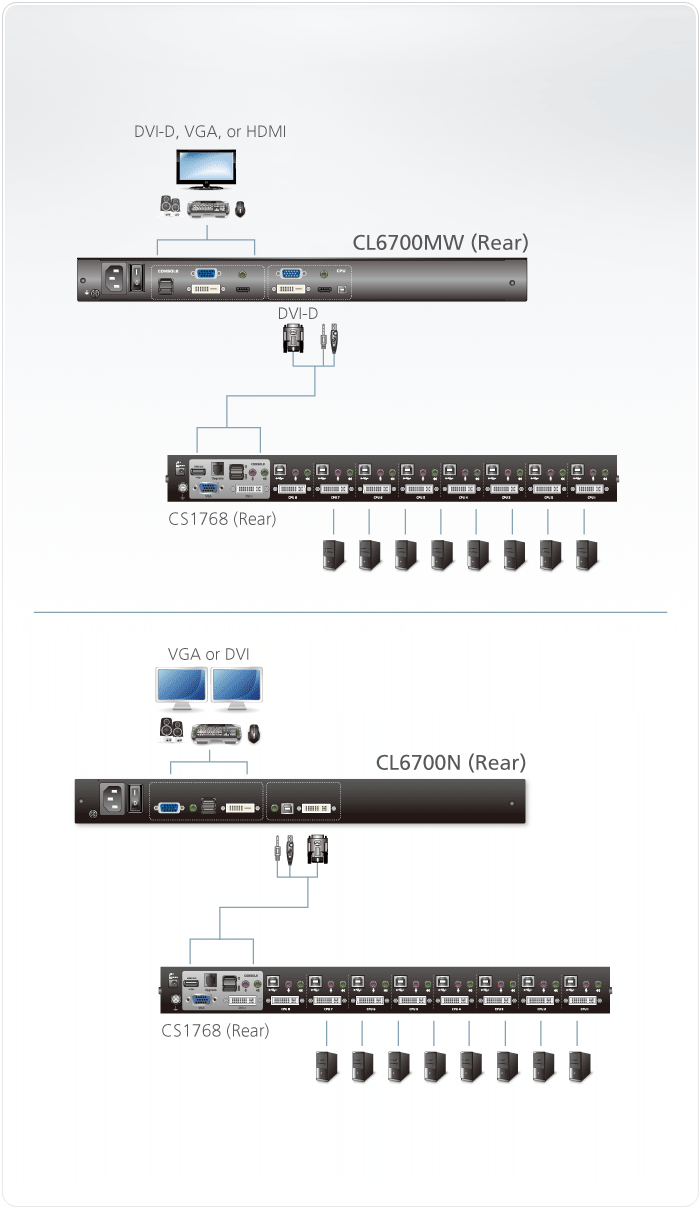

The CL6700 DVI LCD Console is a LCD KVM console featuring an integrated 19" DVI LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing with audio support. The CL6700 serves as the front end sliding console for compatible DVI KVM switches. This means users who already have a compatible KVM switch can take advantage of the space saving and efficiency benefi ts of the sliding console module without having to purchase a KVM switch module.
For added convenience, a port for an external USB mouse is provided on the unit’s front panel, while ports for an extra console (USB mouse, USB keyboard, DVI monitor and VGA monitor) for a second user are provided on the rear panel.

CL6700N: 19" LCD
ROHS Weee

Package Contents

  • 1x CL6700 DVI LCD Console with Standard Rack Mount Kit
  • 1x 2L-7D02U USB DVI KVM Cable Set
  • 1x LIN2-418K-E12G Power Cord
  • 1x LIN5-04A2-J14G Firmware Upgrade Cable
  • 1x User Instructions
  • Integrated KVM console with a 19" DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
  • Supports an external console with USB / DVI / VGA connectors
  • Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
  • Audio support (speakers)
  • Superior video quality – up to 1280 x 1024 @75 Hz; DDC, DDC2, DDC2B
  • Standard 105-key keyboard; Sun keyboard emulation
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Compatible with most ATEN DVI KVM Switches
  • Adjustable depth to fit within the rack
  • Firmware upgradeable
  • Console lock - enables the console drawer to remain securely locked away in position when not in use
  • DDC emulation - video settings of each computer are automatically adjusted for optimal output to the monitor
  • Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

    More information about "Easy Rack Mounting"...
Computer Connections1
Console SelectionHotkey
Connectors
External Console Ports2 x USB Type A Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
KVM Ports1 x USB Type B Female
1 x DVI-I Female (White)
1 x Mini Stereo Jack Female (Green)
External Mouse / Peripheral1 x USB Type A Female
Power1 x 3-prong AC Socket
Switches
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker
Firmware Upgrade1 x Slide
LCD Power1 x Pushbutton
LCD Adjustment4 x Pushbutton
LEDs
Power1 (Green)
Lock1 (Green)
Panel Spec
Screen Size19"
Pixel Pitch0.294 mm x 0.294 mm
Support Color16.7M colors
Contrast Ratio1000:1
Luminance250 cd/m²
Response time5 ms
Viewing Angle170° (H), 160° (V)
Emulation
Keyboard / MouseUSB
Video1280 x 1024@75Hz, DDC2B
Maximum Input Power Rating100-240V AC; 50-60Hz; 1A
Power Consumption120V/24.6W; 230V/25.4W
Environmental
Operating Temperature0–50°C
Storage Temperature-20–60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal
Weight12.22 kg ( 26.92 lb )
Dimensions (L x W x H)48.00 x 58.92 x 4.40 cm
(18.9 x 23.2 x 1.73 in.)



Desc.Ver.Release DateFile Name
Firmware Upgradev1.1.109 cl6700_v1.1.109.zip
