8-Channel Relay Expansion Box


VK248
MSRP: Quote Upon Request
  • An Ethernet-to-relay channel box ships with 8 channels of relay output
  • Supports Power over Ethernet (PoE) or DC power supply
  • Supports Telnet CLI (command-line interface) mode for third-party system integration
  • An expansion solution for connecting more relay channels to ATEN Control System

The VK248 provides Ethernet-to-relay channel connectivity with 8 channels of relay output. It allows users to remotely access relay devices from a PC or any system located anywhere. The complete Telnet CLI commands are fully integrated into users’ commercial and industrial applications.

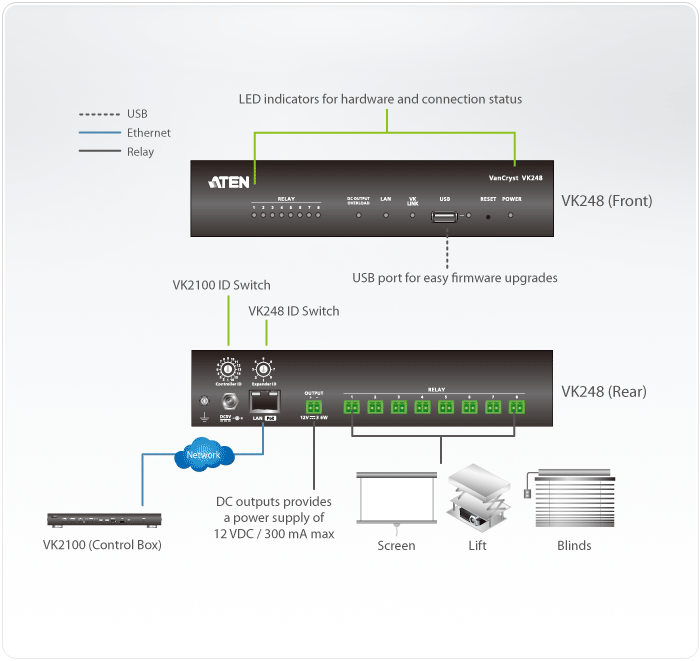

What’s more, the VK248 serves as a flexible expansion box of the ATEN Control System, enabling users to control additional equipment, such as screens, projector lifts and blinds, through an ATEN controller in any environments where more devices are required. With the advantage of Ethernet-based connection, the expansion box can be easily connected to controllers via LAN connection from a variety of locations across a network.

Accessories:
*The power adapter for this product is sold separately. For more information about this accessory, see Accessories.

Package Contents

  • 1x VK248 8-Channel Relay Expansion Box
  • 1x Mounting Kit
  • 9x Terminal Blocks
  • 1x User Instructions
  • An Ethernet-to-relay channel box ships with 8 channels of relay output
  • Supports Power over Ethernet (PoE) or DC power supply
  • WebUI provides VK248 system information, including firmware upgrade
  • Supports Telnet CLI (command-line interface) mode for third-party system integration
  • An expansion solution for connecting more relay channels to ATEN Control System
  • Flexible deployment via Ethernet connection
  • Works with a connected ATEN controller with ID Switch through instant configuration
Interfaces
Relay• 8 normally open relays (8 x 2-pole terminal block)
• Contact Rating: Max 24 VDC, 2A
Ethernet• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Switches
Controller ID1 x 16-segment Switch
Expander ID1 x 8-segment Switch
Reset Button1 x Semi-recessed Pushbutton
USB1 x USB Type A (Firmware upgrade only)
Power ConsumptionDC5V:2.82W:24BTU
DC48V:3.53W:27BTU
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Power
Output12 VDC, 300 mA
Physical Properties
HousingMetal
Weight0.65 kg ( 1.43 lb )
Dimensions (L x W x H)20.00 x 7.58 x 4.20 cm
(7.87 x 2.98 x 1.65 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





Desc.Ver.Release DateFile Name
Firmware Upgradev3.6.3552023-10-26 vk248-v3.6.355.zip
Firmware Upgradev3.4.3342023-03-28 vk248_v3.4.334.001.zip
Firmware Upgradev3.4.3332022-12-27 vk248_v3.4.333.001.zip
Firmware Upgradev3.1.3022021-12-02 vk248_v3.1.302.002.zip
Firmware Upgradev3.0.2942021-05-25 vk248_v3.0.294.002.zip
Firmware Upgradev2.8.2712020-11-13 vk248_v2.8.271.zip
Firmware Upgradev2.6.2542020-02-12 vk248_v2.6.254.001.zip
Firmware Upgradev2.6.2532020-01-17 vk248_v2.6.253.004.zip
Firmware Upgradev2.2.2132019-04-22 vk248_v2.2.213.001.zip
Firmware Upgradev2.1.2042017-12-08 vk248_v2.1.204.zip
Firmware Upgradev2.0.1912016-12-06 vk248_v2.0.191.zip
OSDesc.Ver.Release DateFile Name
ATEN Certified Drivers
Drivers for ATEN Control System
Search for drivers
Firmware Upgrade Tool
Firmware upgrade toolv1.2.1132021-12-21 FirmwareUpgradeTool_Setup_v1.2.113.zip
Firmware upgrade toolv1.1.1062018-01-09 FirmwareUpgradeTool_Setup_v1.1.106.zip
Firmware upgrade toolv1.1.1042017-10-18 FirmwareUpgradeTool_Setup_v1.1.104.zip
Firmware upgrade toolv1.0.0662016-12-09 FirmwareUpgradeTool_Setup_V1.0.066.zip
IP Installer & Utility
IP Installerv1.4.1322014-09-23 IPInstaller_v1.4.132.zip
AMX® Module *v1.02023-03-14 AMX-Module-for-ATEN-Control-System-v1.0.zip
Crestron® Module *v1.02023-03-14 Crestron-Module-for-ATEN-Control-System-v1.0.zip
