HDMI over IP Receiver


VE8900R
MSRP: Quote Upon Request
  • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
  • Delivers HDMI visually lossless high-quality video up to 1080p @ 60 Hz
  • Daisy Chaining - Connects multiple displays through a single port
  • Video Wall Support
HDMI
ROHS
Weee

The ATEN VE8900R Video over IP Receiver delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch*.


The VE8900R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

  • Limitless scalability and flexibility

  • No complicated IP setup

  • No additional server PCs or software required

  • Go further for less with daisy chaining


Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers

*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide: http://assets.aten.com/product/manual/Implementation_Guide.pdf


Package Contents

  • 1x VE8900R HDMI over IP Receiver
  • 1x RS-232 Terminal block
  • 1x 5V Power adapter
  • 1x User instructions
  • Lightweight Compression with Ultra-low Latency
    • Delivers visually lossless high-quality video up to 1080p
    • Ensures stunning quality video using ATEN advanced video lossless compression technology
    • EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens



  • Limitless Scalability and Flexibility
  • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
  • Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications

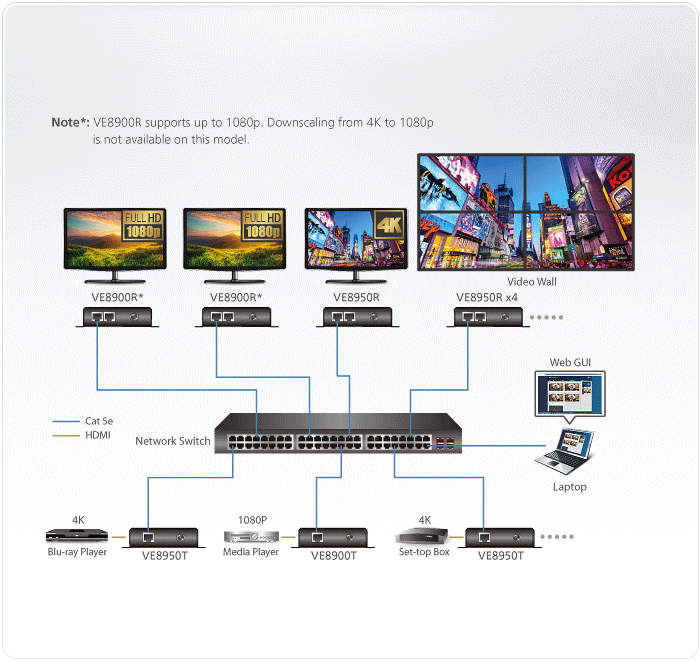

  • Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices*



diagram


  • No Complicated IP Setup
    • Simple configuration that requires no extensive IT experience or extra learning
    • Effortlessly switches among input sources via top panel pushbuttons





  • No Additional Server PCs or Software Required
    • Supports web GUI for device management
    • No additional server PCs, control boxes, or software/drivers are needed



  • Go Further For Less with Daisy Chaining*
    • Connects multiple displays through a single port to utilize every port of the network switch and maximize their value
    • Easily expandable – cabling and system deployment is easy with no huge network switches and fewer cables needed
    • Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports, university campuses, stations, shopping malls, and exhibition centers
      * Depending on your network architecture, we recommend daisy chaining up to 30 units. Please contact ATEN representatives for more details.



Daisy Chaining
* Use daisy chains to configure a video wall or expand the AV system hundreds of meters

  • Video Wall Support
    • Supports up to 8 x 8 video wall (64 displays)*
    • Supports horizontal or vertical (90° rotation) display orientation
    • Easily switches layout profiles, preview and drag-and-drop video sources via the intuitive web GUI
      *Depends on your network architecture, please contact ATEN representatives for more details.



  • Embedded / De-embedded Audio Support
    • Audio stream can be extracted from the HDMI stream and delivered as a separate audio signal



  • Multiple Control Channels
    • Multiple control methods – the system can be managed via Ethernet or top-panel pushbuttons
    • USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals
    • Bi-directional IR Channel – IR transmission is processed one way at a time
    • RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and bar code scanners


Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ώ
Video
Max. Data RateAverage: 150 ~ 500Mbps
ComplianceHDMI
HDCP Compatible
Max. Resolutions / DistanceUp to 1080p@100m (Cat 5e/6, point to point)
Audio
Output1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Control
IR1 x Mini Stereo Jack Female (Black)
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
USB2 x USB Type A Female (Black)
Pushbuttons
ID Number Selection3 x Push buttons
Connectors
Power1 x DC Jack (Black) with locking
Power ConsumptionDC5V:4.28W:41BTU
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.49 kg ( 1.08 lb )
Dimensions (L x W x H) with bracket14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.




DescriptionVer.Release DateFile Name
Firmware Upgradev1.0.091 VE89x0_v1.0.091.exe.zip
Firmware Upgradev1.0.091 VE89x0_v1.0.091.fw.zip
Firmware Upgradev1.0.089 ve89x0_v1.0.089.exe.zip
Firmware Upgradev1.0.089 ve89x0_v1.0.089.fw.zip
ОSDescriptionVer.Release DateFile Name
Firmware Upgrade Tool
Firmware upgrade toolv1.1.106 FirmwareUpgradeTool_Setup_V1.1.106.zip
IP Installer & Utility
IP Installerv1.4.134 IPInstaller_v1.4.134.zip
