DVI/Audio Extender (1920 x 1200@40m)

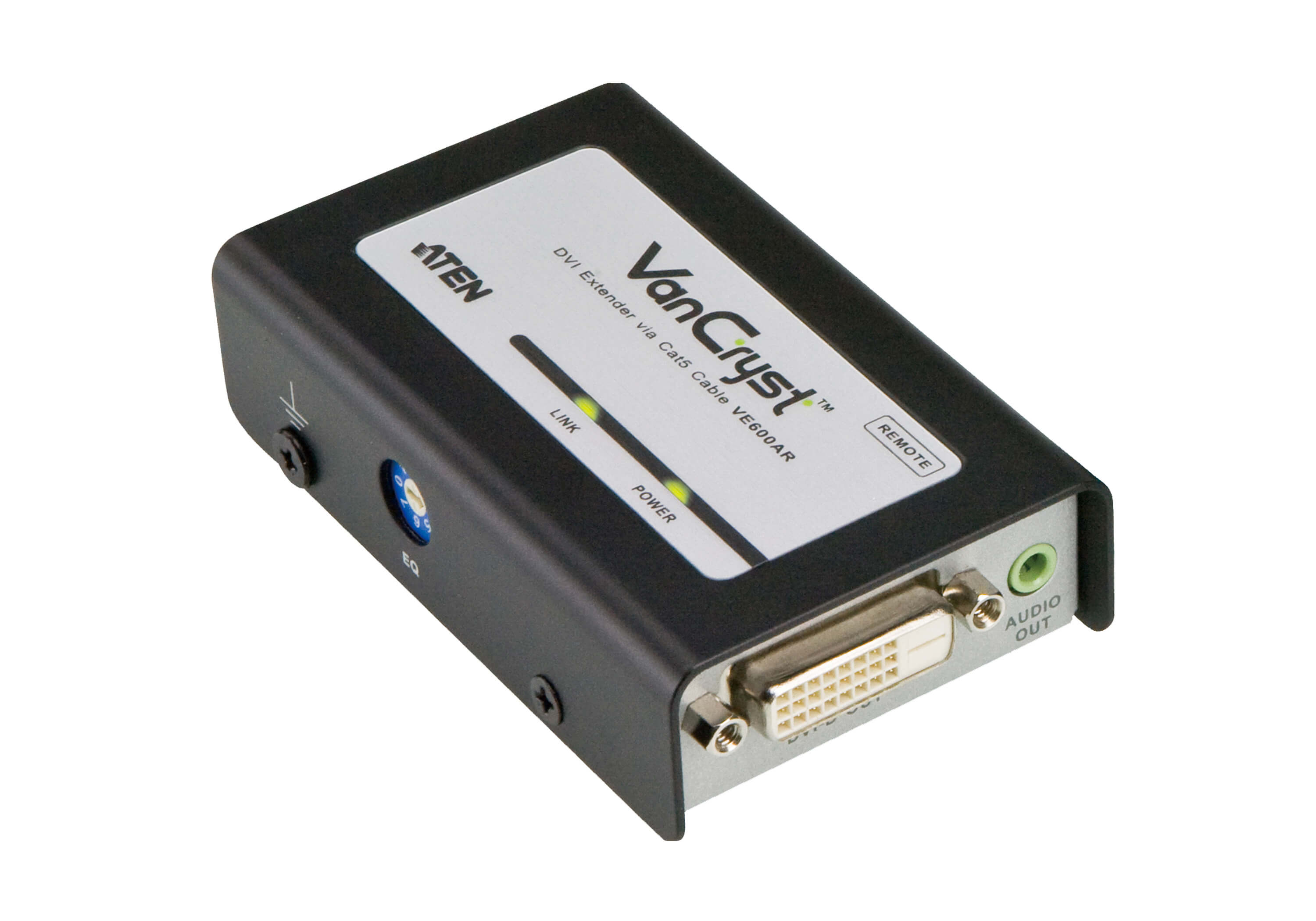

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.

Package Contents

  • 1x VE600A DVI Extender with Audio Local Unit
  • 1x VE600A DVI Extender with Audio Remote Unit
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions
  • Extends the distance between DVI source and DVI display device
  • Long distance transmission – up to 60 m

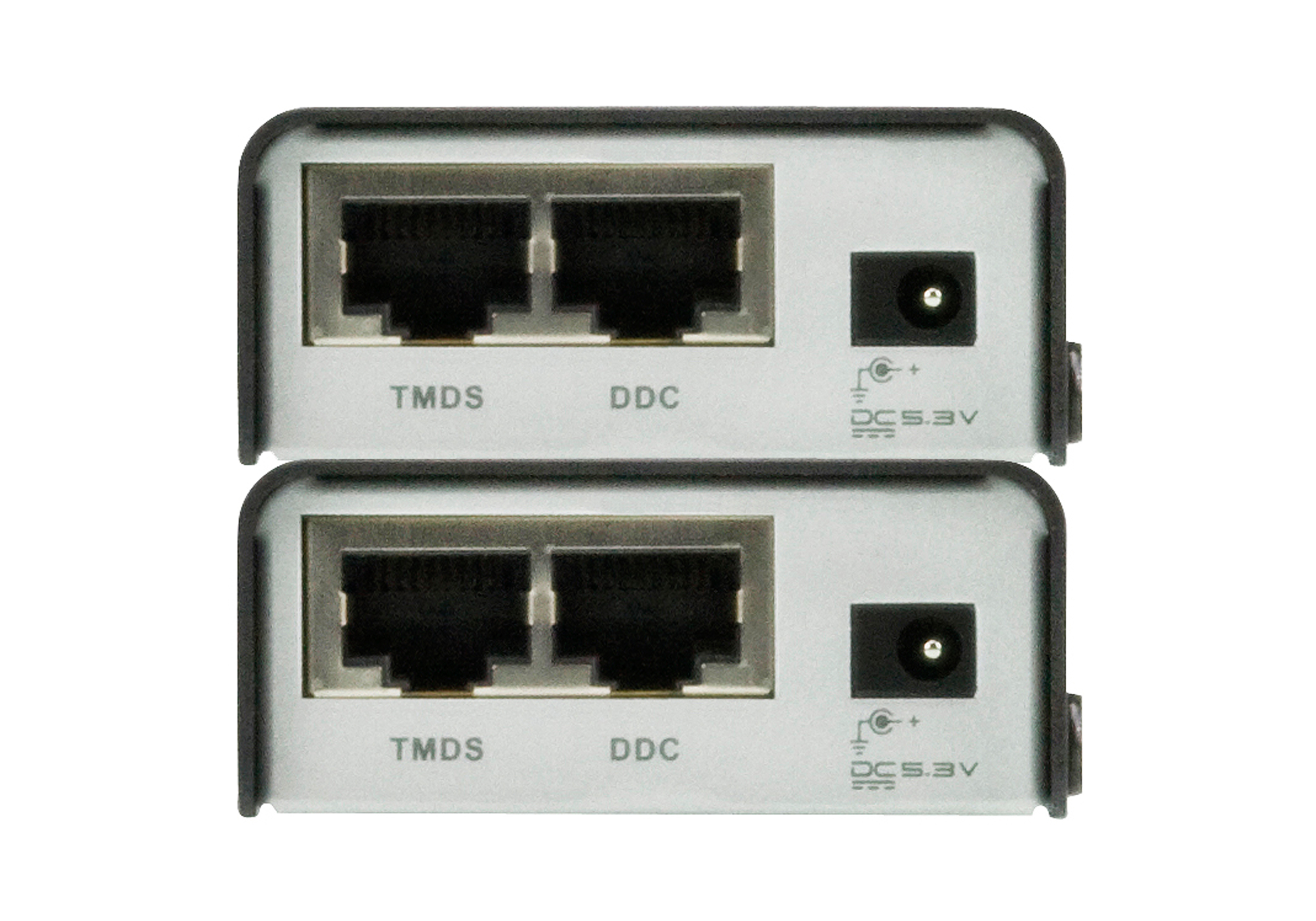

  • Uses Cat 5e cable to connect the local and remote units
  • Features ATEN EDID technology that allows transmission over one Cat 5e cable
  • Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
  • Audio enabled
  • Adjustable EQ compensation control
  • Supports widescreen formats
  • Rack mountable
  • HDCP Compatible

DVI Extender with Audio:

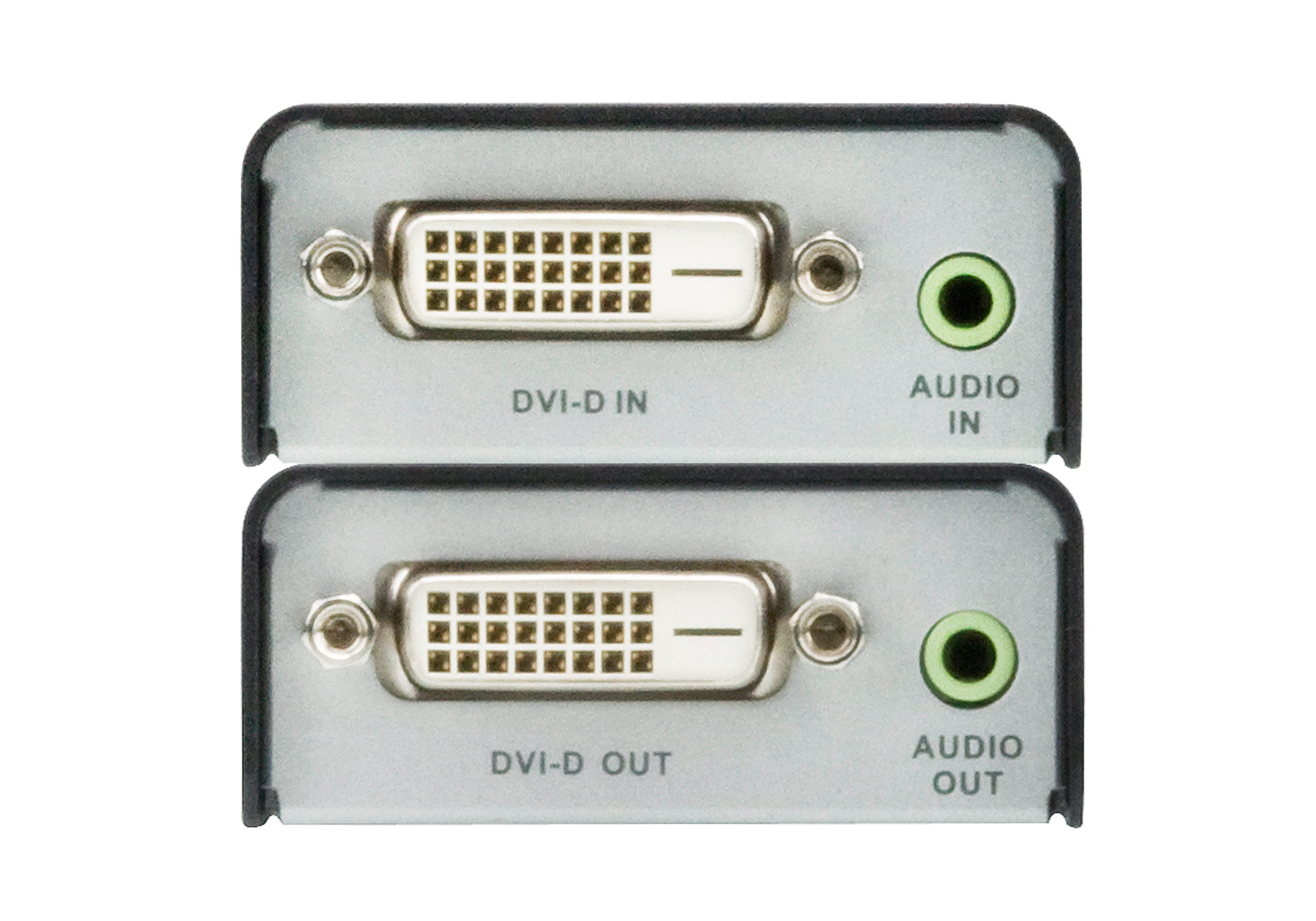

Video Input
Interfaces1 x DVI-D Female (White)N/A
Impedance100 ΏN/A
Max. Distance1.8 mN/A
Video Output
InterfacesN/A1 x DVI-D Female (White)
ImpedanceN/A100 Ώ
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz225 MHz
ComplianceHDCP CompatibleHDCP Compatible
Max. Resolutions / DistanceUp to 1080p@40m; 1080i@60mUp to 1080p@40m; 1080i@60m
Input1 x Mini Stereo Jack Female (Green)N/A
OutputN/A1 x Mini Stereo Jack Female (Green)
Connectors1 x DC Jack1 x DC Jack
Consumption5.3 VDC, 2.05W5.3 VDC, 1.45W
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
Weight0.17 kg ( 0.37 lb )0.17 kg ( 0.37 lb )
Dimensions (L x W x H)9.13 x 5.60 x 2.40 cm
(3.59 x 2.2 x 0.94 in.)
9.13 x 5.60 x 2.40 cm
(3.59 x 2.2 x 0.94 in.)
Carton Lot20 pcs20 pcs
