HDMI HDBaseT-Lite Transmitter with POH (4K@40m)
(HDBaseT Class B)

VE802T

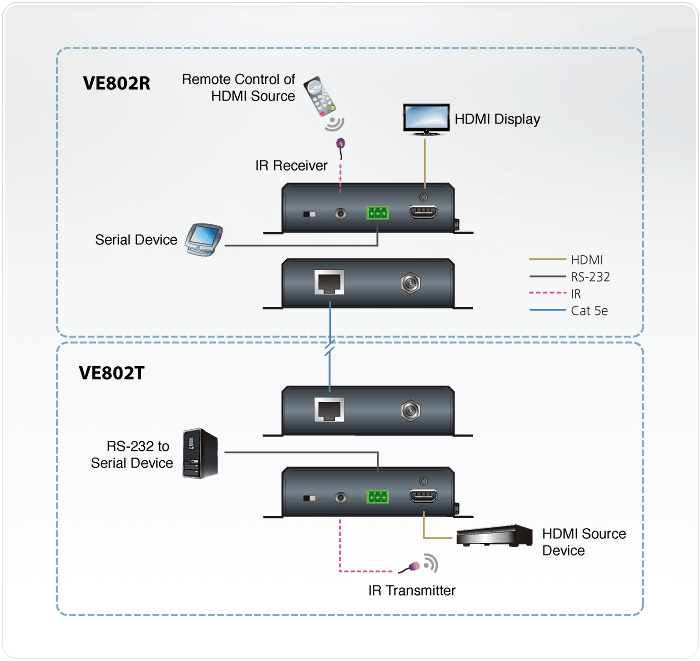

The VE802T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802T features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802T is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802T is perfect for a digital entertainment center or any installation that requires superior video quality.

* Compatible HDBaseT Reciver Units: VE802R
HDBaseT HDMI ROHS Weee

Package Contents

  • 1x VE802T HDMI HDBaseT-Lite Transmitter with POH
  • 1x Power Adapter
  • 1x IR Transmitter
  • 1x Terminal Block
  • 1x User Instructions
  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – IR transmission is processed one direction at a time
  • Rack- Mountable

HDMI HDBaseT-Lite Transmitter with POH
(HDBaseT Class B)


Video Input
Interfaces1 x HDMI Type A Female (Black)
Impedance100Ώ
Max. Distance1.8 m
Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100Ώ
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)
Control
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR1 x Mini Stereo Jack Female (Black)
Power
Connectors1 x DC Jack (Black) with locking
ConsumptionDC5V, 3.6W
Environmental
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.44 kg ( 0.97 lb )
Dimensions (L x W x H)14.48 x 12.30 x 3.00 cm
(5.7 x 4.84 x 1.18 in.)
