2-Port DVI/Audio Splitter
VS162

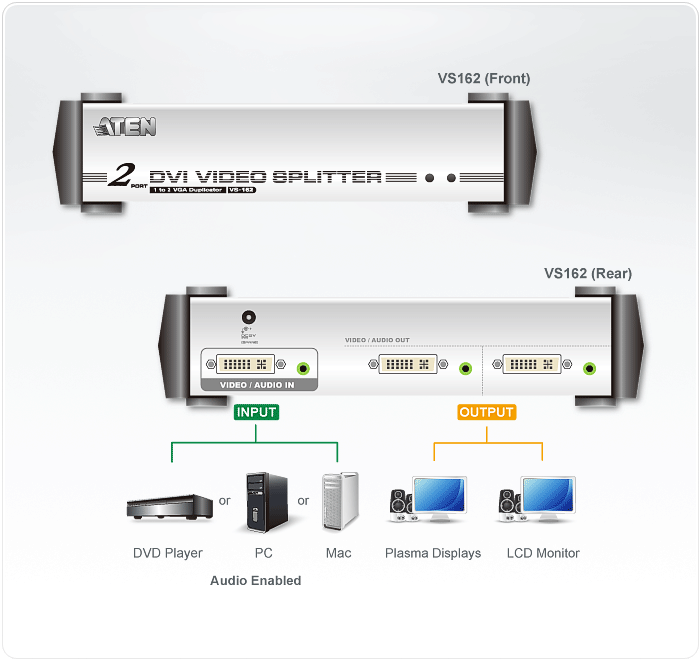

VS162 Video Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
ROHS Weee

Package Contents

  • 1x 2-Port DVI Video Splitter
  • 1x Power Adapter
  • 1x User Instructions
  • Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
  • Fully compliant with DVI-Digital and DVI-Analog.
  • Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
  • DDC/CI support – allow color, brightness, contrast and other adjustments via GUI for DDC/CI enabled LCD monitors
  • Speaker enabled for audio enjoyment.
  • Cascadable to 3 levels - provides up to 8 video signals.
  • Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
  • Installs in minutes.
  • Maintains highest single link video resolution (up to 1920 x 1200).
  • DDC, DDC2, DDC2B Compatible (Port 1 only).
  • HDCP Compliant.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Video Input
Interfaces1 x DVI-I Female (White)
Impedance100 Ώ
Max. Distance1.8 m
Video Output
Interfaces2 x DVI-I Female (White)
Impedance100 Ώ
Video
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz
ComplianceHDCP Compatible
Max. ResolutionUp to 1920 x 1200
Max. DistanceUp to 5 m
Audio
Input1 x Mini Stereo Jack Female (Green)
Output2 x Mini Stereo Jack Female (Green)
Power
Connectors1 x DC Jack
Consumption5.3 VDC, 2.4W
Environmental
Operating Temperature0-50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.62 kg ( 1.37 lb )
Dimensions (L x W x H)21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
Carton Lot5 pcs
