4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch


US434
  • Enables 4 computers to share 4 USB 3.2 Gen1 devices
  • Simple port selection via remote port selector for convenient switch placement
  • USB 3.2 Gen1 compliant, supporting data transfer rates of up to 5 Gbps
  • Micro USB power jack for additional power supply
MSRP: Quote Upon Request
ROHS Weee

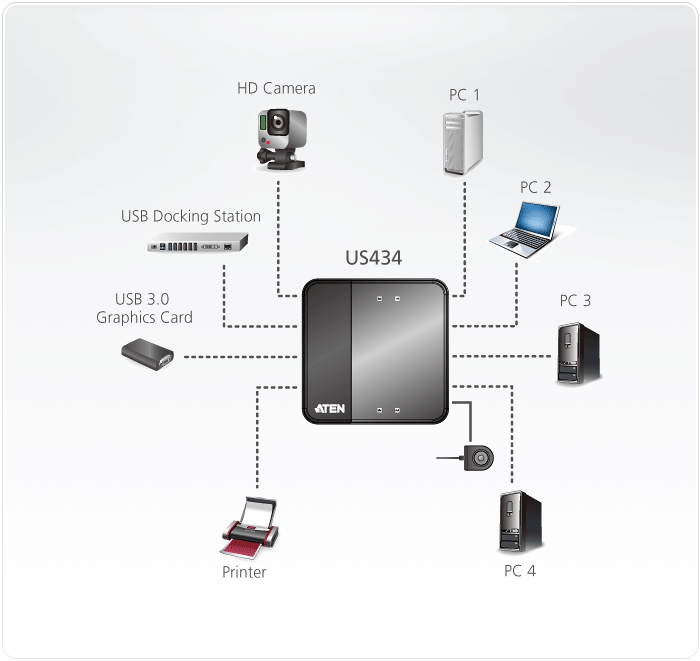

ATEN US434 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.

In addition, US434 also features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. With its compact and all-in-one design, you can create a space saving, convenient and productive work environment.

Package Contents

  • 1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
  • 4x USB 3.2 Gen1 Type-B to Type-A Cables
  • 1x Remote Port Selector
  • 1x User Instructions
  • Enables 4 computers to share 4 USB 3.2 Gen1 devices
  • Simple port selection via remote port selector for convenient switch placement
  • USB 3.2 Gen1 compliant, supporting data transfer rates of up to 5 Gbps
  • LEDs indicates which computer is active
  • Over-current protection
  • Multiplatform support – Windows, Linux and Mac
  • Bus-powered
  • Micro USB power jack for additional power supply
  • Hot pluggable, no driver or software required
Computer Connections4
Port SelectionRemote port selector
Connectors
Computer4 x USB Type B Female (Blue)
Device4 x USB Type A Female (Blue)
Power (Optional)1 x USB micro B Female (Black)
Cable Length
USB CableUSB 3.2 Gen 1 B to A Cable 1.2m x 2
USB 3.2 Gen 1 B to A Cable 1.8m x 2
Remote Port Selector1.8 m
LEDs
Selected4 (White)
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.13 kg ( 0.29 lb )
Dimensions (L x W x H)9.37 x 9.30 x 2.68 cm
(3.69 x 3.66 x 1.06 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
