2-Port USB VGA/Audio Cable KVM Switch (0.9m) Discontinued
Our total USB solution. Link two USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Mac and Sun.

Package Contents

  • 1x 2-Port USB KVM Switch with Attached Cables
  • 1x User Guide

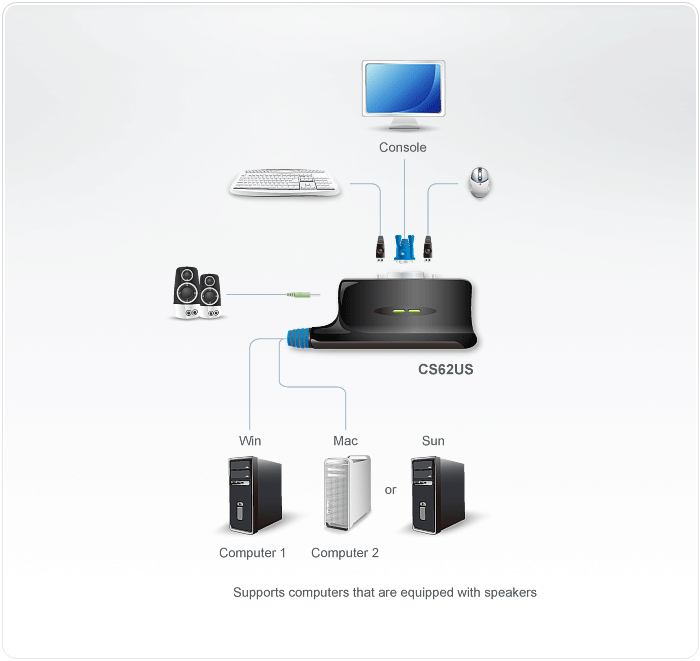

  • One USB console controls two USB computers
  • Compact design, built-in 0.9 m cables
  • Hotkey selection for OS and keyboard language
  • Computer Selection via hotkey and USB mouse NEW!
  • Multiplatform support - Windows, Linux, Mac, Sun
  • Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Console mouse port emulation/bypass feature supports most mouse driver NEW!
  • USB mouse port can be used for USB hub and USB peripheral sharing*
  • Supports gaming keyboards NEW!
  • Supports multifunction and wireless keyboards and mice NEW!
  • All-in-one design
  • With speaker support
  • Superior video quality – up to 2048 x 1536; DDC2B
  • Auto Scan function to monitor computer operation
  • Non-powered
  • Sun/Mac keyboard support and emulation*

    * 1. PC keyboard combinations emulate Sun/Mac keyboards
    2. Sun/Mac keyboards only work with their own computers

2-Port USB KVM Switch

Computer Connections2
Port SelectionHotkey, Mouse
Console Ports2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
KVM Ports2 x USB Type A Male (Black)
2 x HDB-15 Male (Blue)
2 x Mini Stereo Plug Male (Green)
Selected2 (Green)
Cable Length
Computer0.9 m (3 ft)
Keyboard / MouseUSB
Video2048 x 1536, DDC2B
Scan Interval5 seconds
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0-80% RH, Non-condensing
Physical Properties
Weight0.28 kg ( 0.62 lb )
Dimensions (L x W x H)8.75 x 6.08 x 2.80 cm
(3.44 x 2.39 x 1.1 in.)
