8-Port USB/PS2 KVM Switch w/ 8 USB cables


CS1308KIT

This Sku combines following items

CS1308 8-port USB/PS2 Combo KVM Switch
2L5201U 4 ft. USB KVM Cable
2L5202U 6 ft. USB KVM Cable
2L5203U 10 ft. USB KVM Cable

Package Contents

  • 1x CS1308 KVM Switch with Rack Mount Kit
  • 2x 2L5201U
  • 4x 2L5202U
  • 2x 2L5203U
  • 1x Console cable
  • 1x Firmware Upgrade cable
  • 1x Grounding wire
  • 1x Foot Pad set (4 pads)
  • 1x Power Adapter (AC Models)
  • 1x User Manual
  • 1x Quick Start Guide

Your cart

Total
Shipping and discount codes are added at checkout.

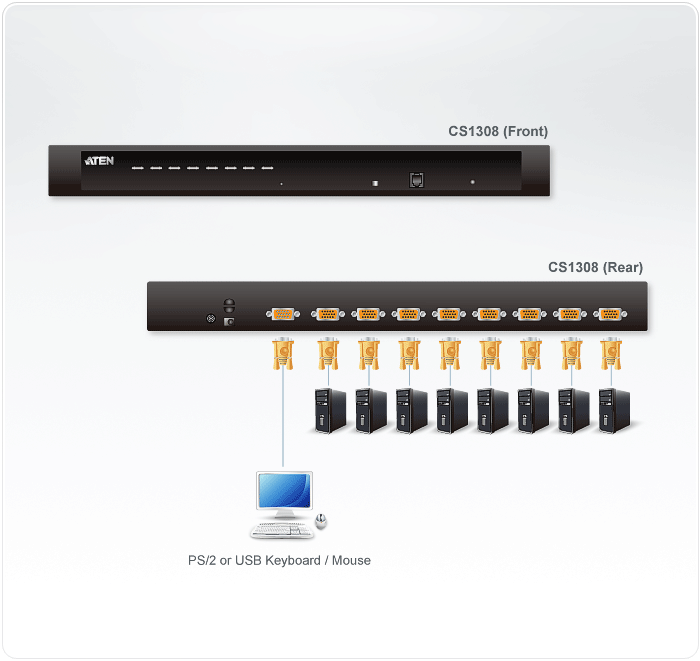

  • One USB-PS/2 console controls 8 computers
  • Cascade up to 2 levels - control up to 64 computers
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Supports multimedia USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable - add or remove computers without having to power down the switch



Computer ConnectionsDirect8
Max.64 (via Cascade)
Port SelectionOSD, Hotkeys, Pushbuttons
ConnectorsConsole PortKeyboard1 x SPHD-18 Male (Yellow)
Video
Mouse
KVM PortsKeyboard8 x SPHD-15 Female (Yellow)
Video
Mouse
FW Upgrade1 x RJ-11 Female (Black)
Power1 x DC Jack
SwitchesPort8 x Pushbutton
FW Upgrade1 x Slide
LEDsOn Line8 (Orange)
Selected8 (Green)
Power1 (Dark Green)
EmulationKeyboard/MousePS/2, USB
Video2048 x 1536; DDC2B
Scan Interval1-255 Seconds
Power ConsumptionDC 5.3 V; 5 W
EnvironmentOperating Temp.0-50˚C
Storage Temp.-20-60˚C
Humidity0-80% RH, Non-condensing
Physical PropertiesHousingMetal
Weight4.2 lbs. (1.89 kg)
Dimensions
(L x W x H)

17 x 6.3 x 1.7 in.

(43.30 x 16.00 x 4.40 cm)
