Photo Door Sensor


EA1440
  • The Photo Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
  • High sensitivity
  • Easy operation
ROHS
Weee

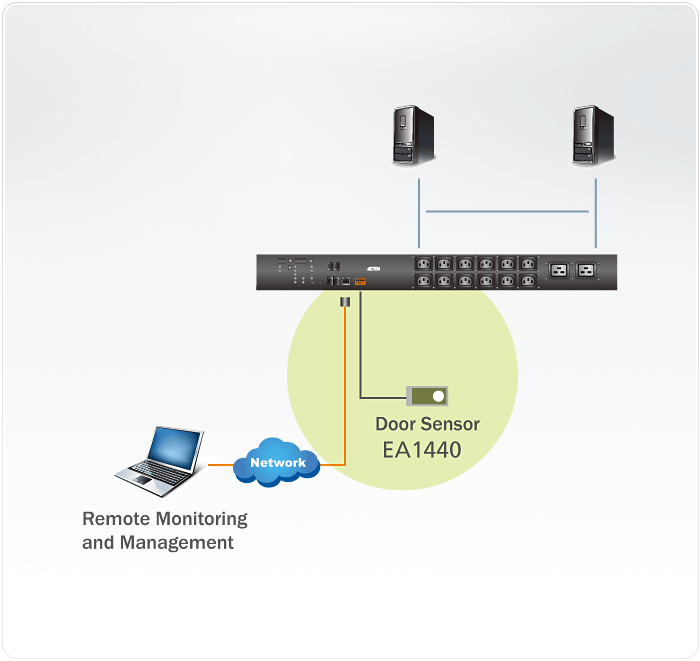

For the security of your data center, ATEN provides Photo Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.
* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.

포장 내용물

  • 1x Photo Door Sensor
  • 1x Adjustment Tool
  • 2x Screw
  • 1x Bracket
  • 1x Velcro
  • The Photo Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
  • High sensitivity
  • Easy operation
감지 거리10 cm
동작 온도10 - 30 VDC; Ripple<20% Peak to Peak
전류 소비30 mA(Max)
출력 방식NPN & PNP Two Output
출력 상태Normal open NO type
출력 전류150 mA(Max)
누수 전류0.8 mA(Max)
잔류 전압0.6 mA(Max)
보호 회로Short Circuit & Polarity Protection
센서 반응 시간1 ms(Max)
감도 조정270° Trimmer
이력현상10% of Sensing Distance Max
EmitterInfrared LED
조명Sunlight < 10,000Lux.; Lamplight < 5,000Lux.
제품 외관
재질Plastic
노트일부 랙 마운트 제품은,WxDxH의 표준 물리적 치수를 LxWxH 형식으로 사용하고 있습니다.
