2-포트 VGA 분배기 월 플레이트 (250MHz)
VS102

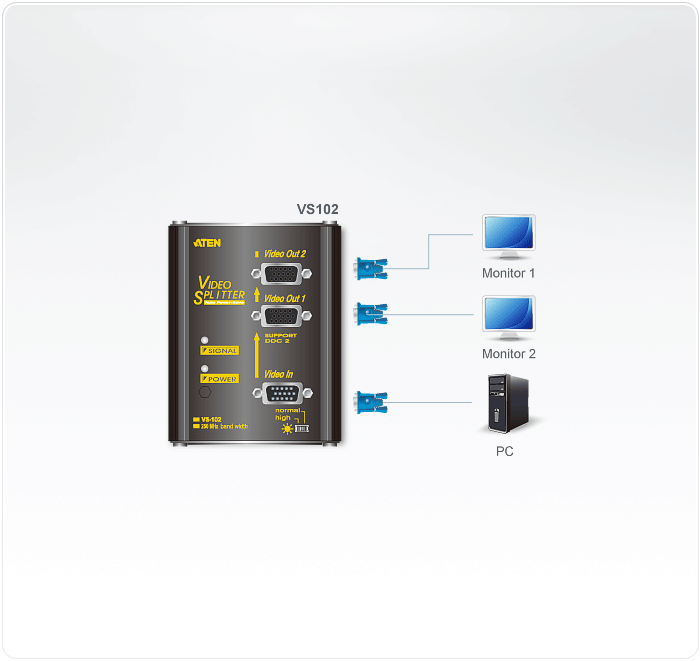

- One video input to 2 video outputs.
- Cascadable to 3 levels-provides up to 8 video signals.
- Supports up to 250 MHz bandwidth.
- High video resolution - up to 1920 x 1440.
VS102 video splitters provides video input signals to 2 video outputs each at 250 MHz after duplication. Users can boost video signals from the video gain knob within a transfer range up to 65m.
포장 내용물
- 1x 2-Port Video Splitter
- 1x Power Adapter
- 1x User Instructions
- One video input to 2 video outputs.
- Cascadable to 3 levels-provides up to 8 video signals.
- Supports up to 250 MHz bandwidth.
- Long distance transmission - up to 65 m.
- High video resolution - up to 1920 x 1440.
- DDC, DDC2, DDC2B Compatible (Port 1 only).
- Supports VGA, XGA, SVGA, UXGA and multisync monitors.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
- Compact design with convenient topside connection, lays flat on a desktop or mounts on the wall
비디오 입력 | |
인터페이스 | 1 x HDB-15 Male (Blue) |
적용 | 75 Ώ |
최대 거리 | 1.8 m |
비디오 출력 | |
인터페이스 | 2 x HDB-15 Female (Blue) |
적용 | 75 Ώ |
비디오 | |
최대 대역폭 | 250 MHz |
최대 해상도 | Up to 1920 x 1440 |
최대 거리 | Up to 65 m |
커넥터 | |
전원 | 1 x DC Jack |
소비 전력 | DC9V:1.22W:6BTU |
사용 환경 | |
사용 온도 | 0-50°C |
보관 온도 | -20 - 60°C |
습도 | 0 - 80% RH, Non-Condensing |
제품 외관 | |
재질 | Metal |
무게 | 0.19 kg ( 0.42 lb ) |
크기 (L X W X H) | 10.36 x 7.90 x 2.82 cm (4.08 x 3.11 x 1.11 in.) |
카튼 번호 | 20 pcs |
노트 | 일부 랙 마운트 제품은,WxDxH의 표준 물리적 치수를 LxWxH 형식으로 사용하고 있습니다. |
