8-Port 19" Dual Rail LCD KVM with 8 PS/2-USB KVM Cables


CL5808NCKIT
  • Integrated KVM console with 19" LCD in a Dual Rail housing
  • Space saving technology - up to two consoles (one bus) control up to 8 computers
  • Daisy-chain up to 31 additional units*– control up to 256 computers from two consoles (one bus)
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice

This Sku combines following items


CL5808N:  8-Port 19" LCD KVM Switch

2L5301UP 4 ft. USB/PS2 Combo KVM cable

2L5302UP 6 ft. USB/PS2 Combo KVM cable

2L5303UP 10 ft. USB/PS2 Combo KVM cable

Package Contents

  • 1x CL5808N
  • 2x 2L5301UP
  • 4x 2L5302UP
  • 2x 2L5303UP
  • 1x 5-in-1 Console Cable
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 1x Grounding Wire
  • 1x User Manual
  • 1x Quick Start Guide
  • 1x Standard Rack Mounting Kit
  • Integrated KVM console with 19" LCD in a Dual Rail housing
  • Space saving technology - up to two consoles (one bus) control up to 8 computers
  • Daisy-chain up to 31 additional units*– control up to 256 computers from two consoles (one bus)
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
  • Supports USB peripherals for computers connected to the top tier
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console Lock - enables the console drawer to remain securely locked away in position when not in use
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Supports multimedia USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere

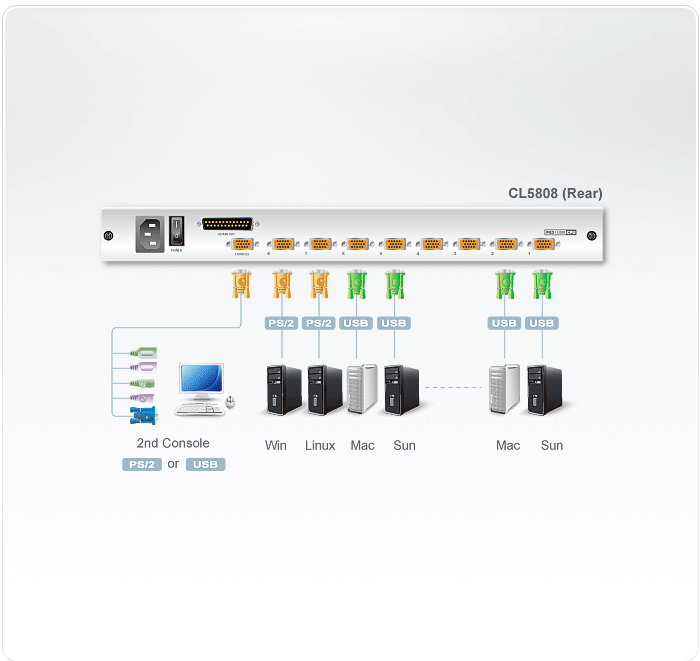

  • Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
  • Supports external USB mouse
  • Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
  • No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
  • Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
  • Port names automatically reconfigured when station sequence is changed
  • Two level password security - only authorized users can view and control computers
  • LCD power button helps save energy and prolong display's life
  • Supports one administrator and four user accounts with separate profiles
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
  • Hot pluggable - add or remove computers without having to power down the switch
  • Beeper on/off via hotkey and OSD
  • Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
  • *With compatible KVM Switches:ACS1208A, ACS1216A,CS1708A,CS1716A
