Switch KVM USB VGA/Audio cablato 2-porte (1,8 m)
CS62U

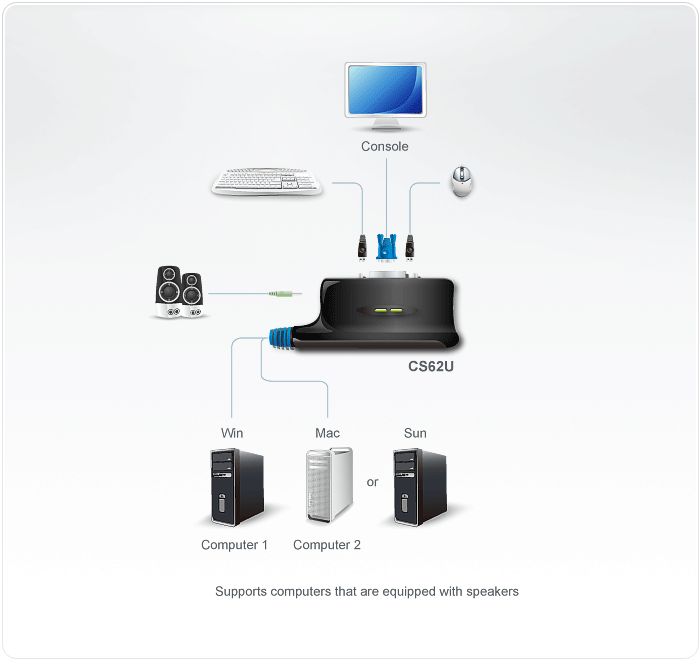

CS62U 2-Port USB KVM Switch has a handy design integrating with 1.8m of cables. It can control 2 servers via a single console.


Contenuti della confezione
- 1x 2-Port USB KVM Switch with Attached Cables
- 1x User Guide

- One USB console controls two USB computers
- Compact design, built-in 1.8 m cables
- Hotkey selection for OS and keyboard language
- Computer Selection via hotkey and USB mouse NEW!
- Multiplatform support - Windows, Linux, Mac, Sun
- Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse driver NEW!
- USB mouse port can be used for USB hub and USB peripheral sharing*
- Supports gaming keyboards NEW!
- Supports multifunction and wireless keyboards and mice NEW!
- All-in-one design
- With speaker support
- Superior video quality – up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Non-powered
- Sun/Mac keyboard support and emulation*
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
Collegamenti del computer | 2 |
Seleziona porta | Tasto di scelta rapida, Mouse |
Connettori | |
Porte console | 1 x HDB-15 femmina (blu) 2 x USB di tipo A femmina 1 x Connettore audio da 3,5 mm femmina (verde) |
Porte KVM | 2 x HDB-15 maschio (blu) 2 x USB di tipo A maschio (nero) 2 x Connettore audio da 3,5 mm maschio (verde) |
LED | |
Selezionato | 2 (verde) |
Lunghezza del cavo | |
Computer | 1,8 m |
Emulazione | |
Tastiera / Mouse | USB |
Video | 2048 x 1536, DDC2B |
Intervallo di scansione | 5 secondi |
Ambiente | |
Temperatura di esercizio | 0 - 50°C |
Temperatura di conservazione | -20 - 60°C |
Umidità | 0-80% di umidità relativa, senza condensa |
Proprietà fisiche | |
Struttura | Plastica |
Peso | 0,37 kg (0,81 libbre) |
Dimensioni (L x P x A) | 8,75 x 6,08 x 2,80 cm (3,44 x 2,39 x 1,1 pollici) |
Nota | Per alcuni prodotti per il montaggio su rack, le dimensioni fisiche standard LxPxA sono indicate utilizzando il formato LxLxA. |
