4-Port USB VGA/Audio Cable KVM Switch (0.9m, 1.2m)
The CS64US takes a giant step forward from prior cable KVM models in the Petite series, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.
Furthermore, the CS64US features enhanced Video DynaSync™ technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. The CS64US also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.

Package Contents

  • 1x 4-Port CS64US USB KVM Switch
  • 2x Hotkey Stickers
  • 1x User Guide

Your cart

Shipping and discount codes are added at checkout.

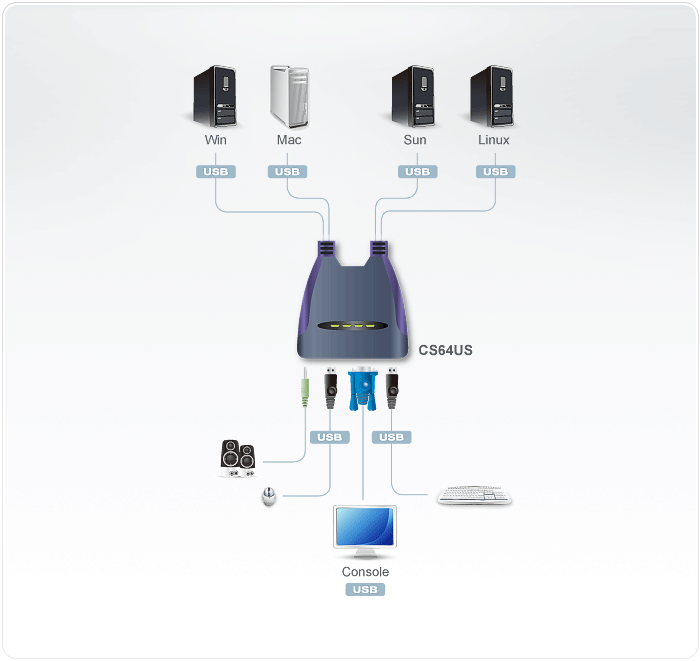

  • One USB console controls four USB computers
  • Compact design, built-in 3 ft./ 4 ft. (0.9/1.2 m) cables
  • Hotkey selection for OS and keyboard language
  • Computer Selection via hotkey
  • Multiplatform support - Windows, Linux, Mac, Sun
  • Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
  • Supports multifunction and wireless keyboards and mice NEW!
  • All-in-one design
  • With speaker support
  • Superior video quality – up to 2048 x 1536; DDC2B
  • Auto Scan function to monitor computer operation
  • Non-powered
  • Sun/Mac keyboard support and emulation*
  • Firmware upgradable NEW!

    * 1. PC keyboard combinations emulate Sun/Mac keyboards
    2. Sun/Mac keyboards only work with their own computers

4-Port USB KVM Switch:

Computer Connections4
Port SelectionHotkey
Console Ports2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
KVM Ports4 x USB Type A Male (White)
4 x HDB-15 Male (Blue)
4 x Mini Stereo Jack Female (Green)
Selected4 (Green)
Cable Length
Computer2 x 0.9 m; 2 x 1.2 m
Keyboard / MouseUSB
Video2048 x 1536; DDC2B
Scan Interval1-99 secs. (default 5 secs.)
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0-80% RH, Non-condensing
Physical Properties
Weight0.58 kg ( 1.28 lb )
Dimensions (L x W x H)9.41 x 9.72 x 2.60 cm
(3.7 x 3.83 x 1.02 in.)

DescriptionVer.Release DateFile Name
Firmware Upgradev1.1.107 cs64us_v1.1.107.zip
Firmware Upgradev1.1.105 cs64us_v1.1.105.zip
Firmware Upgradev1.1.104 cs64us_v1.1.104.zip
Firmware Upgradev1.1.103 cs64us_v1.1.103.zip
Firmware Upgradev1.1.102 cs64us_v1.1.102.zip
Firmware Upgradev1.1.101 cs64us_v1.1.101.zip
Firmware Upgradev1.0.076 cs64us_v1.0.076.zip
Firmware Upgradev1.0.075 cs64us_v1.0.075.zip
