Video Session Recording Software

Ministry of Economic Affairs, Taiwan

The Control Center Video Session Recorder (CCVSR) is ATEN´s innovative software designed to securely record the video and operation of computers accessed through KVM over IP Switches. The software automatically records a video of the screen display and logs all key-strokes and mouse clicks when computers are accessed through KVM ports.

The CCVSR is developed to work with ALTUSEN KVM over IP Switches without the need to install agent software on all computers. The software can be installed and managed from a single computer which will automatically capture and save video recordings for you. Simply set the CCVSR software to record ports on a KVM switch and it automatically creates a video recording every time the computers are accessed. The CCVSR supports recording across multiple KVM over IP Switches and multiple KVM ports* can be recorded at the same time.

The CCVSR deployment is highly scalable and flexible. It supports single or multiple CCVSR servers giving IT managers the ability to start small and expand gradually. A simple license policy reduces the complexity of upgrades. The single portal and single IP design for multiple CCVSR servers mitigates management. Disk space management is automatically controlled by the CCVSR to eliminate the need of manual disk administration.

The CCVSR is an ideal management tool to accompany any KVM installation. The software records operations from the BIOS to logging in; from running software applications to configuring any part of the operating systemall actions are recorded and saved without exception. It´s also a great tool for administrators to easily generate step by step instructional videos for any system procedure.

The CCVSR is a great tool for capturing evidence or tracing issues for immediate troubleshooting and faster problem resolution. The software can help monitor compliance control and auditing efficiently. It quickly helps IT managers know what every remote KVM user, internal KVM user, or IT service contractor is doing on the servers, with full coverage of all actions; saved in a bulletproof system for future auditing.


Package Contents

  • 1x CCVSR USB License Key
  • 1x Software CD
  • 1x User Instructions
  • CCVSR License Options
  • CCVSR8 (8 Nodes)
  • CCVSR16 (16 Nodes)
  • CCVSR32 (32 Nodes)
  • CCVSR64 (64 Nodes)
  • CCVSR128 (128 Nodes)
  • CCVSR256 (256 Nodes)
  • CCVSR512 (512 Nodes)
  • CCVSR1024 (1024 Nodes)
  • CCVSR2048 (2048 Nodes)
  • System Add-ons:
  • CCSVSRN1 (1 Add Nodes)
  • CCSVSRN8 (8 Add Nodes)
  • CCSVSRN16 (16 Add Nodes)
  • CCSVSRN32 (32 Add Nodes)
  • CCSVSRN64 (64 Add Nodes)
  • CCSVSRN128 (128 Add Nodes)
  • CCSVSRN256 (256 Add Nodes)
  • CCSVSRN512 (512 Add Nodes)
  • CCSVSRN1024 (1024 Add Nodes)
  • CCSVSRN2048 (2048 Add Nodes)
  • CCVSRAS1 (Archive Server License)
  • KVM session recording – Automatically create complete recordings of computer operations when users access a KVM port – saved to a database for advanced searches*
  • Records a video of the screen display as well as logs the operations of keystrokes and mouse clicks
  • Recordings are saved to an indexed database for advanced searching.
  • Search functions with keyword filters for retrieving video recordings
  • Supports high quality video recording – with video resolutions up to 1920 x 1200 with 24-bit color depth
  • Supports recording on multiple KVM over IP Switches
  • Simultaneously records and plays the operation of multiple KVM ports**
  • Special video player tools with proprietary format and video record export function with password protection for enhanced security
  • Automatic disk space management
  • Automatically runs software as daemon service in the background NEW!
  • IP Filter for enhanced protection
  • System event notifi cation via SMTP email; SNMP trap and Syslog support
  • Confi gurable user and group permissions–for search, play, system management, record management, and save management
  • Port level permissions – users can only view ports they have been authorized on
  • Supports device level event logs
  • Multilanguage GUI Supports: English, Traditional Chinese, Simplified Chinese, Japanese, and Korean NEW!
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure user logins from browsers
  • 3rd party remote authentication supports: RADIUS, LDAP, LDAPS, and MS AD Directory

    * The CCVSR supports recording computer operations accessed through the local console and via remote sessions, although a few KVM switches do not support recording of their local console operations. Please visit a compatible product's web page for more details.
    ** Up to 12 KVM sessions from 6 KVM devices can be recorded at one time when the recommended system requirements of the CCVSR server are met.
    ** Up to 64 KVM devices can be supported by one CCVSR.

    Recommend System Requirements
  • CPU: Intel® Core™ i5-3300 Desktop Processor Series (3rd Generation Intel® Core™ i5 Processors) or equivalent
  • Memory: DDR3 2 GB RAM
  • Network: Gigabit Ethernet Adapter
  • OS: Windows 7/8/10**

    Note: ** CCVSR does not support Windows XP with firmware V1.0.063 or later.

Video Session Recorder

Compatible Appliances
KVM over IP switchesRecordable via remote sessions or through the local console:
KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN4124VA, KN4116VA, KN4124VA, KN4132VA, KN4140VA, KN4164VA, KN4164V, KN8132V, KN8164V, CN8600.
Recordable via remote sessions:
KL1108V, KL1116V, KN1108v, KN1116v, KN1132V, KN1108VA, KN1116VA, KN2116A, KN4132, KN2140v.
Serial console serversSN9116, SN9108, SN0148, SN0132, SN0116A, SN0108A.
Authentication & AuthorizationSupports local user accounts, LDAP, and RADIUS.
Role-based (Super Administrator, Administrator, User) policy for access privilege control.
SecurityIP and MAC address blocking.
Configurable failed login attempts and lockout.
Support certificate self-signed or signed from third-party authorities (CA).
Secure web connection with TLS v1.2 and RSA 2048-bit certificates.
Strong user password authentication.
Configurable user session timeout.
Configurable login page URL
Supported ResolutionsUp to 1920 x 1200 with 24-bit color depth
Proprietary video format
Recording StorageRecorded videos can be saved in:
- Local storage
- Secondary CCVSR server
- Network shared folder
Recorded videos can be archived to:
- Archive server
PlaybackJava player:
- Password protected videos
- Video export
- Display recorded keystrokes and mouse clicks
Advanced search with a variety of criteria
SNMP Trap (v1, v2c)
LogsSystem logs.
Device logs.

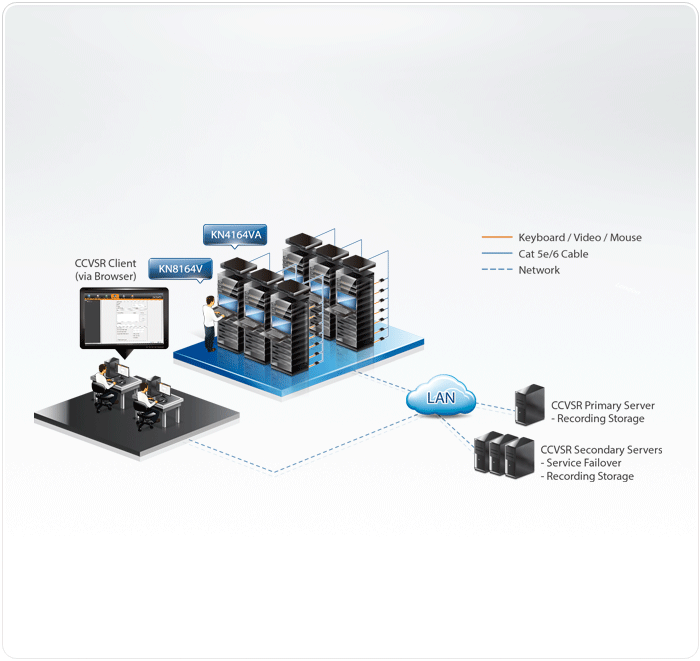

Service FailoverPrimary/secondary architecture.
1 primary with maximum 3 secondary servers.
Supported OSWindows: 7, 8, 10, server 2012, or server 2016
Linux: Ubuntu 16.04, CentOS 7, Fedora 24, Debian 8.8
*JAVA Runtime Environment (JRE) 1.7 Update 6 or higher is required in above OS.
Supported BrowsersInternet Explorer, Chrome, Firefox.
Multilingual SupportEnglish, 繁體中文, 简体中文, 日本語, 한국어.
OthersOnline user management.
Basic (free)1 Primary/1 Nodes.
CC2000 USB License OptionsCCVSR8 (8 Nodes).
CCVSR16 (16 Nodes).
CCVSR32 (32 Nodes).
CCVSR64 (64 Nodes).
CCVSR128 (128 Nodes).
CCVSR256 (256 Nodes).
CCVSR512 (512 Nodes).
CCVSR1024 (1024 Nodes).
CCVSR2048 (2048 Nodes).
System Add-onsCCVSRN1 (Add-on 1 Node).
CCVSRN8 (Add-on 8 Nodes).
CCVSRN16 (Add-on 16 Nodes).
CCVSRN32 (Add-on 32 Nodes).
CCVSRN64 (Add-on 64 Nodes).
CCVSRN128 (Add-on 128 Nodes).
CCVSRN256 (Add-on 256 Nodes).
CCVSRN512 (Add-on 512 Nodes).
CCVSRN1024 (Add-on 1024 Nodes).
CCVSRN2048 (Add-on 2048 Nodes).
CCVSRAS1 (Archive Server License)
Minimum Hardware RequirementsTo record 4 video sessions: Intel Pentium 4, 2.6 GHz, 2GB RAM
To record 12 video sessions: Intel Core i5, 2.5 GHz, 4GB RAM
Hard drive: 500MB or more free space
Ethernet: Giga LAN
Package Contents1x CCVSR USB License Key
1x Software CD
1x User Instructions
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
