VGA Synchronizer (30m)


The VE510 Video Synchronizer is designed to compensate for video signal delays over large distances. The VE510's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings, store the settings and retrieve them later using the memory button.


Package Contents

  • 1x VE510 VGA Video Synchronizer
  • 1x VGA Cable
  • 1x Power Transfer Cable
  • 1x Mounting Kit
  • 1x Grounding Wire
  • 1x User Guide

Your cart

Shipping and discount codes are added at checkout.
  • Connects VGA based video devices to VGA displays and enhances the video quality in long distance installations
  • Compensates for a delay and synchronizes signal delays
  • RGB delay tuner-manually synchronizes the RGB signals via pushbuttons
  • Skew equalization
  • Memory set button-allows the storing and recalling of user settings
  • LED display for status monitoring
  • Easy to install
  • Hot pluggable
  • Compact Size-Din Rail and Wall mountable
  • Compatible with ATEN KVM Extenders, Video Extenders and KVM Switches

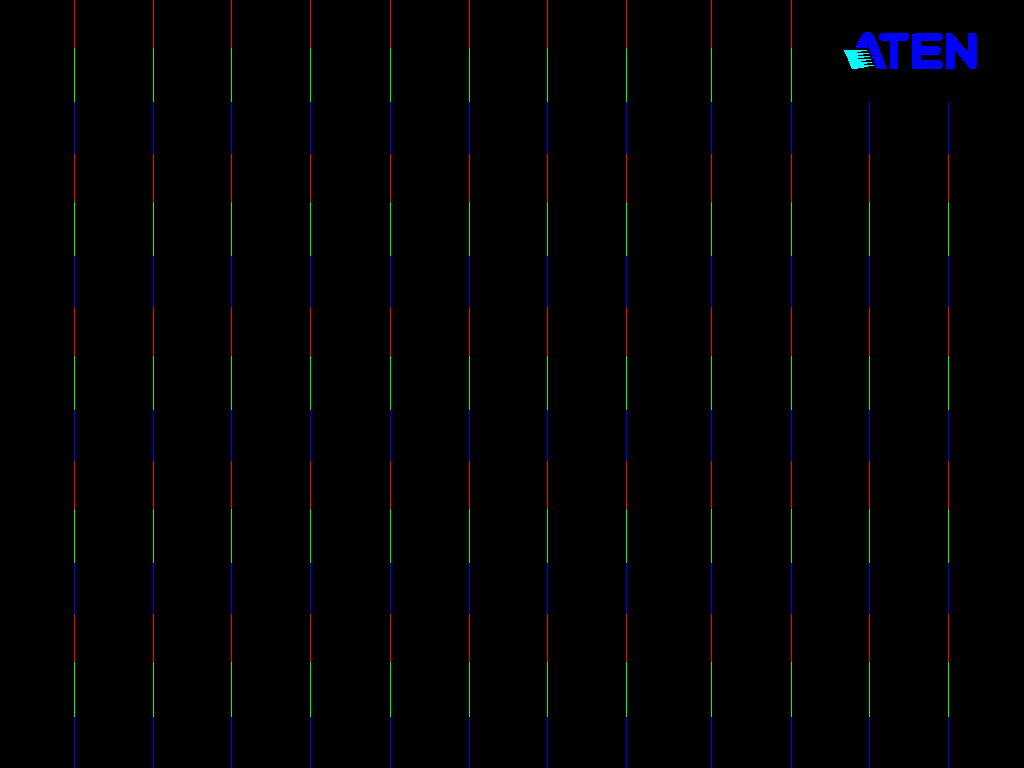

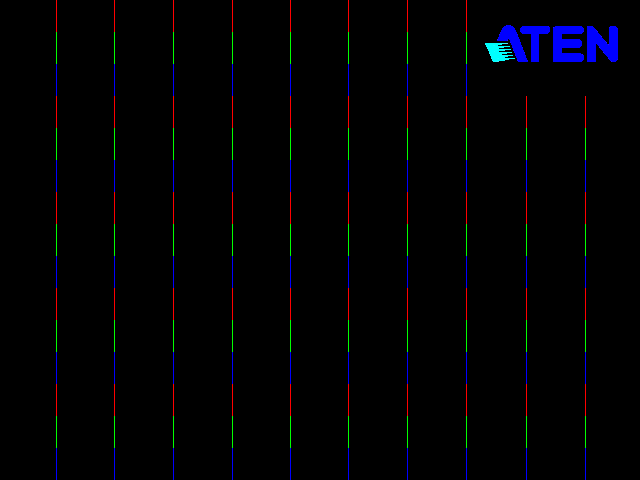

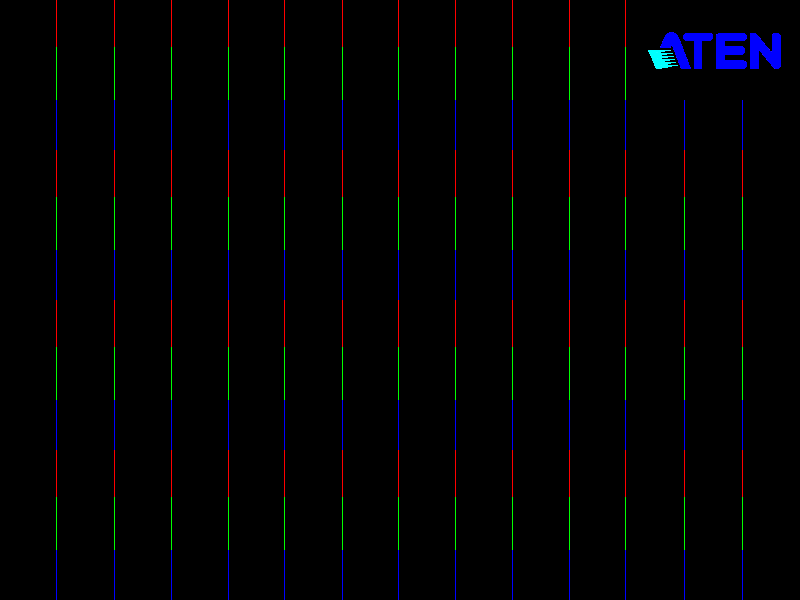

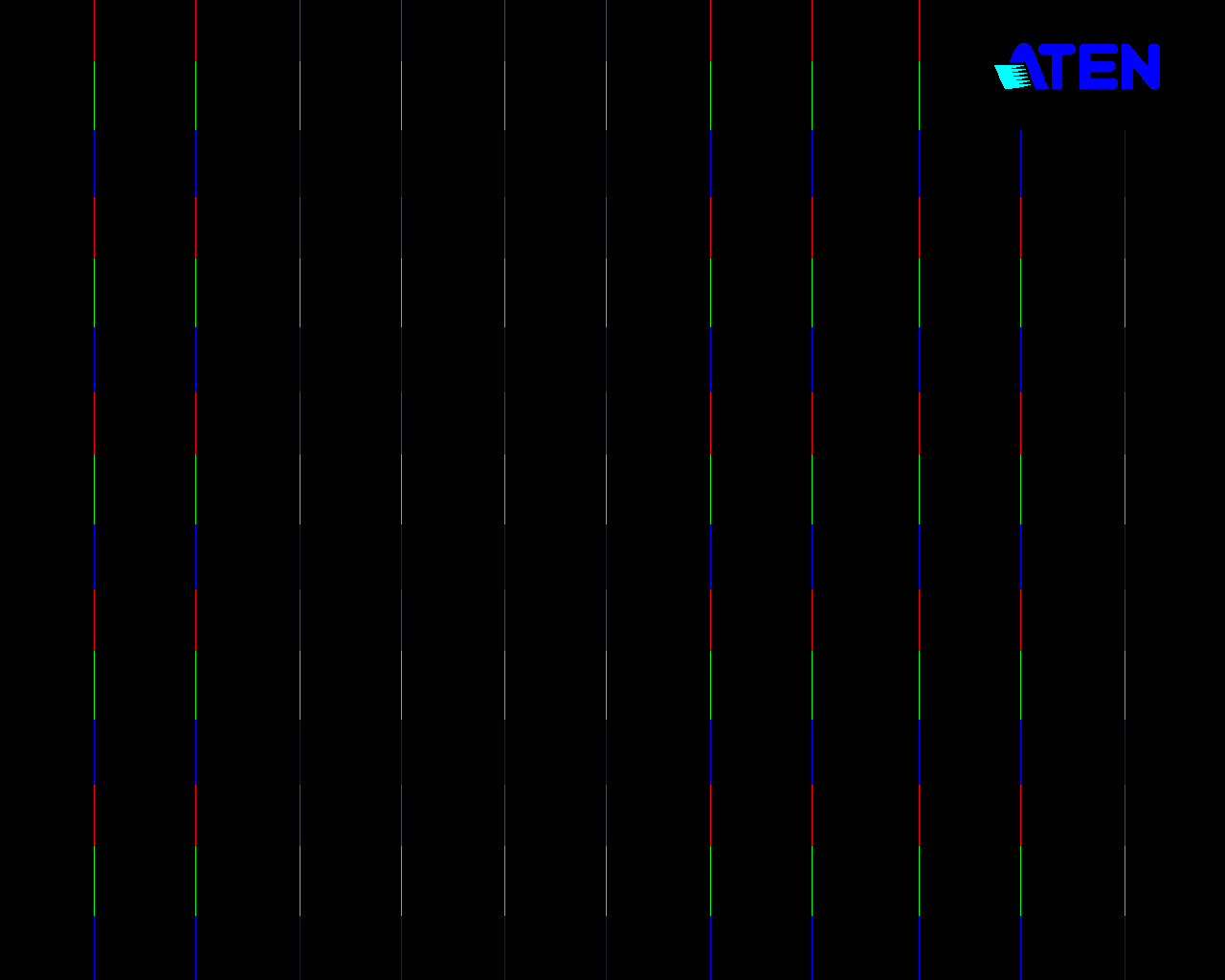

    Remark: Color Adjustment Picture:
    640x480 800x600 1024x768 1280x1024

Video Synchronizer

Video Input
Interfaces1 x HDB-15 Male (Blue)
Impedance75 Ώ
Max. Distance1.8 m
Video Output
Interfaces1 x HDB-15 Female (Blue)
Impedance75 Ώ
Max. Distance30 m
Max. Bandwidth300 MHz
Power1 x DC Jack (Black)
Power Consumption5 VDC, 1.48W
Operating Temperature0-50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
Weight0.21 kg ( 0.46 lb )
Dimensions (L x W x H)11.02 x 7.93 x 2.54 cm
(4.34 x 3.12 x 1 in.)
Carton Lot5 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
