4-Port 4K HDMI Splitter
VS184A
The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
HDMI ROHS Supports(3D) Ultra HD (2k x 4k) Weee

Package Contents

  • 1x VS184A 4-Port HDMI Splitter
  • 1x Power Adapter
  • 1x HDMI Cable
  • 1x User Instructions

Your cart

Total
USD
Shipping and discount codes are added at checkout.

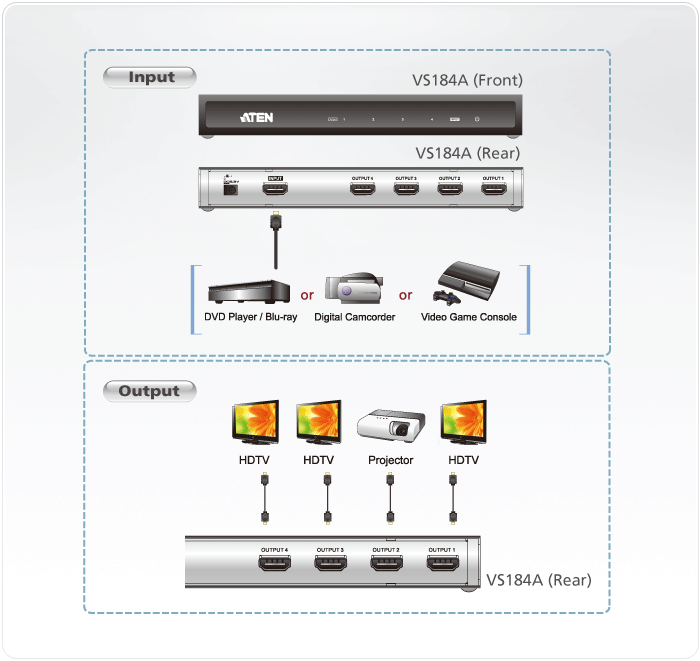

  • Connects one HDMI source to four HDMI displays at the same time
  • HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports Dolby True HD and DTS HD Master Audio
  • Long distance transmission – up to 15 m (24 AWG)
  • Supports up to 340MHz bandwidth for high performance video
  • Plug-and-play – no software installation required

4-Port HDMI Splitter


Video Input
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ώ
Max. Distance1.8 m
Video Output
Interfaces4 x HDMI Type A Female (Black)
Impedance100 Ώ
Video
Max. Data Rate10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K);
HDCP Compatible
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. DistanceUp to 15 m
Audio
Input1 x HDMI Type A Female (Black)
Output4 x HDMI Type A Female (Black)
Power
Connectors1 x DC Jack
Consumption5.3 VDC, 4.6W
Environmental
Operating Temperature0-50 °C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.47 kg ( 1.04 lb )
Dimensions (L x W x H)20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)
Carton Lot20 pcs
