Centralized Management Software

New
CC2000 3.0
MSRP: Quote Upon Request
  • Single sign-on to consolidate the management of ATEN’s KVM over IP switches, serial console servers, intelligent PDUs, and third party devices such as embedded service processors, and physical and virtual servers
  • A consolidate Dashboard portal to provide an at-a-glance overview of all important information such as device status and task results
  • Intuitive User Interface with HTML5 to facilitate effective management
  • Provides server redundancy through primary/secondary architecture for service availability
ROHS
Weee

ATEN's CC2000 3.0 Centralized Management Software provides IT Teams in every industry with a comprehensive solution that enables central management of their IT infrastructure locally and worldwide through a single portal. The software consolidates the management of all ATEN KVM over IP switches, serial console servers, ATEN PDU and other devices including blade servers and virtual machines for in-band and out-of-band management. The brand new CC2000 3.0 provides a single easy-to-use interface – making system management more efficient and productive.

Featuring concise and intuitive HTML 5-based web interface, the CC2000 3.0 delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.

The CC2000 3.0 also features a consolidated portal, the Dashboard, to help IT staff quickly attain a full grasp of all the important information and to complete monitoring tasks with minimal effort and time. The Dashboard displays an at-a-glance overview of device status, device events, task results, online users, and licensed nodes usage. With the device status and device events sections, administrators can be immediately notified about the condition of the connected devices, as well as quickly receiving the generated critical logs. The task results section delivers vital messages about operation success or failure. Administrators can also view details of currently logged-in users and terminate suspicious user sessions. The Dashboard’s enhanced notification functionality helps users to promptly handle issues and fix problems efficiently.

The CC2000 3.0's patented Panel DynaArray™ mode lets administrators view the output of multiple ports in individual panels on the same screen. The panel configuration can combine the ports from different over-IP KVM devices and give administrators a flexible choice to select which devices they wish to monitor and how the ports appear on the screen. Ports can be accessed and managed simply by clicking on the panel it is displayed in.

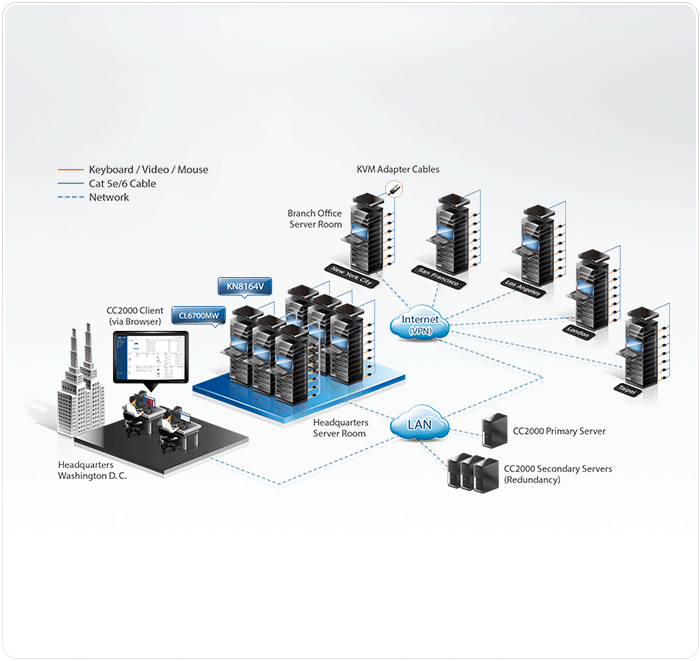

The CC2000 3.0 Centralized Management Software uses Primary-Secondary architecture to offer service redundancy. When the Primary CC2000 3.0 server goes down, the CC2000 3.0 management system will keep functioning since one of Secondary units can provide the required management services until the Primary unit is back online. This feature ensures that you are able to access all your devices whenever required.

With the help of the CC2000 3.0, users can promptly handle issues and fix problems efficiently. As a secure and centralized system management solution, the CC2000 3.0 software meets the requirements of IT administrators in centralized management and easy monitoring, putting them in complete control of their data centers, server rooms and branch offices wherever they are deployed.

Package Contents

  • 1x CC2000 3.0 USB License Key
  • 1x Software CD
  • Single sign-on to consolidate the management of ATEN’s KVM over IP switches, serial console servers, intelligent PDUs, and third party devices such as embedded service processors, and physical and virtual servers
  • Intuitive User Interface with HTML5 to deliver friendly user experience
  • At-a-glance Dashboard portal to display an overview of the device status, device events, task results, online users, and licensed nodes usage
  • Flexible remote access through service processors and IP tools including Dell iDRAC5/6/8, IBM RSA II, HP iLO2/3/5, Dell CMC, IBM AMM, HP OA, IPMI, IMM and RDP, VNC, SSH, and Telnet
  • Supports access and control to virtualized environment over VMware vSphere 5.5/6.0/6.5 Windows Server 2008, 2012 & 2016, or Citrix XenServer 6.5.
  • Supports management of APC PDUs (AP79xx, AP89xx, and AP86xx)
  • Supports LDAP, AD, Kerberos, RADIUS and TACACS+ for centralized authentication and authorization Centralized rolebased policy for user access privilege control
  • Military level encryption (AES 256-bit) for secure end-to-end node access
  • Access control to grant or restrict user access by IP or MAC address, and SAS 70 compliance for configurable failed login attempts and lockout
  • Supports certificates signed from third-party authorities (CA)
  • TLS v1.2 data encryption (AES-256 bit supported) and RSA 2048-bit certificates to secure user logins from browser
  • Supports strong user password policy to enhance the security of user accounts
  • Consolidates logs from ATEN’s KVM over IP switches, serial console servers, and other devices through syslog protocol for audit trail
  • Universal virtual media support for easy software deployment (mount ISO image, boot, or upgrade the device remotely)
  • Event notification support through email, SNMP (v1, v2c, v3), and Syslog
  • Task scheduling for backing up CC2000 3.0 database and configuration, exporting logs, and controlling power on/off on PDU devices
  • Message Box — shows internal system messages or critical logs that can be viewed in full detail with just one simple click.
  • Panel Array Mode – allows administrators to monitor multiple video outputs of remote servers in one screen
  • Mouse DynaSync – automatically synchronizes the local and remote mouse cursors
  • Delivers server redundancy through primary/secondary architecture for service availability
  • Add specific devices and ports to My Favorites for quick access


Compatible Appliances
KVM over IP switchesKL1108V, KL1116V, KL1508Ai, KL1516Ai, KH1508Ai, KH1516Ai, KN1000, KN1000A, KN1108v, KN1116v, KN1108VA, KN1116VA, KN2124VA, KN2140VA, KN4124VA, KN4140VA, KN1132V, KN2116VA, KN2132VA, KN4116VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2116A, KN2132, KN4132, CN8000A, CN8000, CN8600, CS1708i, CS1716i, IP8000
Serial console serversSN0148CO, SN0132CO, SN0116CO, SN0108CO, SN9116CO, SN9108CO, SN0148, SN0132, SN0116A, SN0108A, SN9116, SN9108, SN3101
PDUsATEN:
PE8324, PE8216, PE8208, PE8108, PE7208, PE7108, PE6324, PE6216, PE6208, PE6108, PE5208, PE5108, EC2004, EC1000.
APC:
AP79xx, AP89xx, and AP86xx.
Service processorDell iDRAC5/6/8, IBM RSA II, HP iLO2/3/5 Dell CMC, IBM AMM, HP OA, IPMI, IMM.
Virtual InfrastructureVMware vSphere 5.5/6.0/6.5 Windows Server 2008/2012/2016, and Citrix XenServer 6.5.
Authentication & AuthorizationSupports local user accounts, LDAP, AD, Kerberos, RADIUS and TACACS+.
Role-based (Super Administrator, System Administrator, Device Administrator, User Administrator, User, Auditor) policy for access privilege control.
Import user list (*.csv) to create multiple users at once.
SecurityAES 256-bit encryption for secure end-to-end node access.
IP or MAC addresses blocking.
Virtual media security blocking.
Configurable failed login attempts and lockout.
Support certificate signed from third-party authorities (CA).
Secure web connection with TLS v1.2 and RSA 2048-bit certificates.
Strong user password authentication.
Configurable user session timeout.
Network Protocol & IP ToolsIPv4/IPv6, RDP, VNC, SSH, and Telnet.
ViewerJavaClient (JNLP).
WinClient (ActiveX).
Mouse DynaSync.
Panel array mode (up to 64 KVM ports).
Virtual media.
Exit macro support.
NotificationSMTP.
SNMP (v1, v2c, v3).
Syslog.
System message.
Task schedulingCC2000 database backup.
CC2000 configuration backup.
Device firmware upgrade.
Export system logs.
Export device logs.
Export serial console server logs.
Power on/off control on ATEN PDU.
LogsSystem logs.
Device logs.
Serial console server logs.
SNMP traps.
Activity report.
Server RedundancyPrimary/secondary architecture.
1 primary with maximum 31 secondary servers.
Supported OSWindows: 7 or later, server 2008, server 2013, or server 2019
Linux: Redhat Enterprise v7, SUSE Enterprise 9 & 10, Ubuntu 15.10, Debian 8.2, Fedora 23, OpenSUSE 13.1, CentOS 7
*JAVA Runtime Environment (JRE) 8 or higher is required in above OS.
Supported BrowsersInternet Explorer (10 or later), Chrome (56 or later), Firefox (60 or later).
Multilingual SupportEnglish, 繁體中文, 简体中文, 日本語, 한국어, Française, Español, Português, Deutsch, Pусский.
OthersDashboard
Online user management.
NTP (Network Time Protocol).
License
Basic (free)1 Primary/16 Nodes.
USB License OptionsCC2000TN (Tiny Pack: 1 Primary/32 Nodes).
CC2000XL (Extra Lite Pack: 1 Primary, 64 Nodes).
CC2000LE (Lite Pack: 1 Primary, 128 Nodes).
CC2000LS (Lite Plus Pack: 1 Primary, 256 Nodes).
CC2000SD (Standard Pack: 1 Primary/1 Secondary, 512 Nodes).
CC2000PS (Plus Pack: 1 Primary/5 Secondary, 2048 Nodes).
CC2000PM (Premium Pack: 1 Primary/9 Secondary, 5120 Nodes).
CC2000PL (Platinum Pack: 1 Primary/15 Secondary, Unlimited Nodes).
CC2000MX (Maximum Pack: 1 Primary/31 Secondary, Unlimited Nodes).
System Add-onsCCS1 (Add-on 1 Secondary Server License).
CCN1 (Add-on 1 Node License).
CCN10 (Add-on 10 Nodes License).
CCN50 (Add-on 50 Nodes License).
CCN100 (Add-on 100 Nodes License).
CCN500 (Add-on 500 Nodes License).
CCN1000 (Add-on 1000 Nodes License).
CCN10000 (Add-on 10000 Nodes License).
CCNU (Add-on unlimited Nodes License).
Minimum Hardware RequirementsCPU: Pentium 4, 2.60 GHz or higher
Memory: 1GB
Hard drive: 500MB or more free space
Ethernet: Giga LAN
Package Contents1x CC2000 USB License Key
1x Software CD
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



ОSDescriptionVer.Release DateFile Name
AuthKeyStatus Software
CC2000 AuthKeyStatus Softwarev2.2.211 ccauthkeystatus_v2.2.211.zip
Upgrade Software
LinuxUpgrade Softwarev3.1.301 cc2000-upgrade-linux_v3.1.301.zip
WindowsUpgrade Softwarev3.1.301 cc2000-upgrade-windows_v3.1.301.zip
Utility
LinuxDatabase migration utility (from v2.8.x to v3.1.x only)v1.0.091 cc2000_DBMigrationUtility-linux_v1.0.091.zip
WindowsDatabase migration utility (from v2.8.x to v3.1.x only)v1.0.091 cc2000_DBMigrationUtility-windows_v1.0.091.zip
Utility For Hyper-V Server
Utility For Hyper-V Serverv1.0.080 utility-for-hyperV-server-configuration_dotnet40_v1.0.080.zip
