True 4K HDMI EDID Emulator

New
VC081
  • Effectively learn the EDID from the HDMI display and relay it to the video source
  • HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
  • Superior video quality – up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
  • LED indicators to show device status
HDMI
ROHS
true-4k
Weee
MSRP: Quote Upon Request

Buy from your favorite store now:

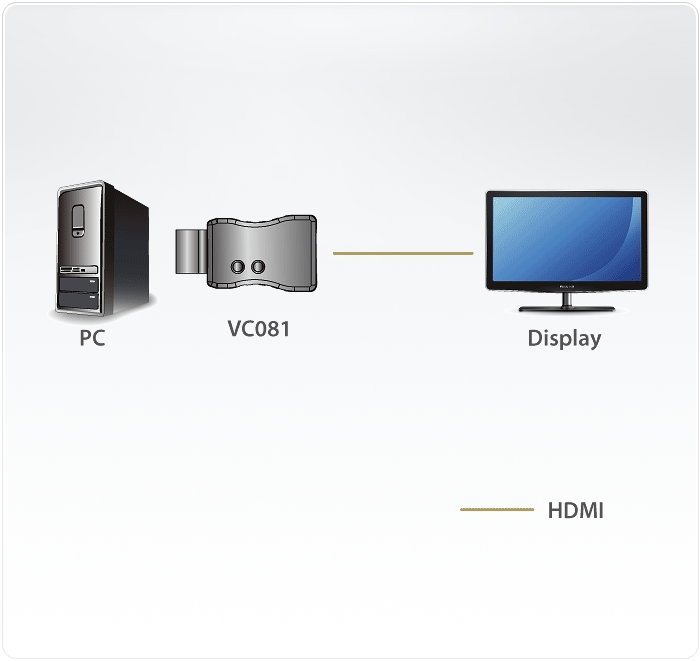

The VC081 True 4K HDMI EDID Emulator is designed to overcome EDID related problems which can occur when used with AV or KVM extenders, switches, and splitters. By learning the EDID from the HDMI display and relaying it to the video source, the VC081 can effectively resolve video communication problems that occur when EDID data between the HDMI video source and display are not correctly synchronized. Moreover, after the display’s EDID is learned, the VC081 can be used in place of a monitor to keep a PC or Server awake for remote access via IP.

For product application, the VC081 is an ideal tool for wiring installation in traffic stations and commercial centers.

Package Contents

  • 1x VC081 True 4K HDMI EDID Emulator
  • 1x User Instructions
  • Manages EDID communication between connected devices
  • Effectively learn the EDID from the HDMI display and relay it to the video source
  • HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
  • Superior video quality – up to True 4K (3840 x 2160 @ 60Hz 4:4:4)
  • LED indicators to show device status
  • Powered by HDMI source
  • Compact and lightweight design


LEDs
PowerPower status (Green x 1)
StatusLearning (Blue x 1)
Video Input
Interfaces1 x HDMI Type A Male (Black)
Impedance100 Ώ
Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ώ
Video
ComplianceHDMI 2.0 (3D, Deep Color)
HDCP 2.2 Compatible
Consumer Electronic Control (CEC)
EDID SettingsEDID Mode: Default / Learning
Connectors
PowerBus-powered (5 VDC from source device)
Power Consumption240MWBTU
Environmental
Operating Temperature0 - 50 ºC
Storage Temperature-20 - 60 ºC
Humidity0 - 80% RH,  Non-Condensing
Physical Properties
HousingPlastic (ABS)
Weight0.08 kg ( 0.18 lb )
Dimensions (L x W x H)4.40 x 2.40 x 1.18 cm
(1.73 x 0.94 x 0.46 in.)
Carton Lot40 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
