4-port USB 2.0 CAT 5 Extender (100m)

New
UCE32100
  • True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters
  • USB Lossless – Higher compatibility of remote USB devices
  • An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
  • Power supply for remote unit to ensure power delivery to multiple devices at once
ROHS
Weee
MSRP: Quote Upon Request

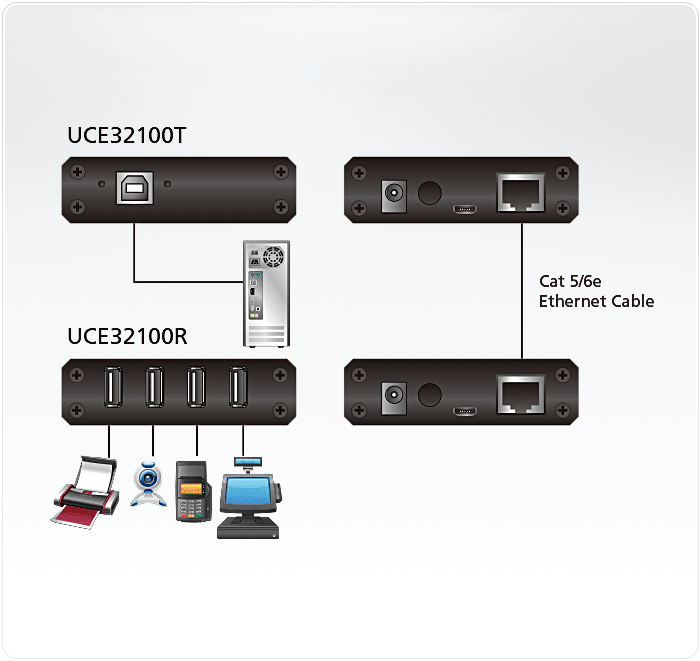

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

Package Contents

  • 1x UCE32100T USB 2.0 CAT 5 Transmitter
  • 1x UCE32100R USB 2.0 CAT 5 Receiver
  • 1x USB 2.0 Type-A Male to Type-B Male Cable
  • 1x Power Adapter
  • 1x Power Cord
  • 4x Mounting Kit
  • 2x Din Rail
  • 2x DC Jack Lock Kit
  • 2x Rubber Feet Sets
  • 1x User Instructions
  • True USB 2.0 transparent extension over CAT 5 cabling up to 100 meters
  • Supports USB 2.0, with a maximal transfer rate of 25MB/s
  • USB Lossless – Higher compatibility of remote USB devices
  • An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub
  • Power supply for remote unit to ensure power delivery to multiple devices at once
  • Compact size with wall mounting and din rail included for flexible installation
  • DC jack lock kit included to ensure durable power adapter connection
  • Supports Windows®, OS X®, and Linux®
  • Plug-and-play


Local Unit
Upstream Port1 x USB Type B Female
Downstream Port1 x RJ45 Female
1 x Micro USB Female (Firmware Upgrade)
Power1 x DC Jack
Remote Unit
Upstream Port1 x RJ45 Female
Downstream Port4 x USB Type A Female
1 x Micro USB Female (Firmware Upgrade)
Power1 x DC Jack
USB SpecificationUSB 2.0 High-Speed
Cable TypeCAT 5 UTP Cable
Signal Range100m
LEDs
Status2 x LED
Power ConsumptionDC5V:1.708W:8BTU
DC5V:1.649W:50BTU
Environmental
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 70°C
Humidity0–80% RH, Non-condensing
Physical Properties
Weight0.21 kg ( 0.46 lb )
HousingMetal
Dimensions (L x W x H)10.15 x 7.90 x 2.44 cm
(4 x 3.11 x 0.96 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
