4-포트 USB VGA/오디오 KVME™ 스위치 + 이더넷 허브

단종됨
CS1774
  • With speaker and microphone support
  • Bi-directional switching and flexible interoperability;switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
  • Computer selection via front panel pushbuttons and hotkeys
  • With speaker and microphone support
ROHS
Weee

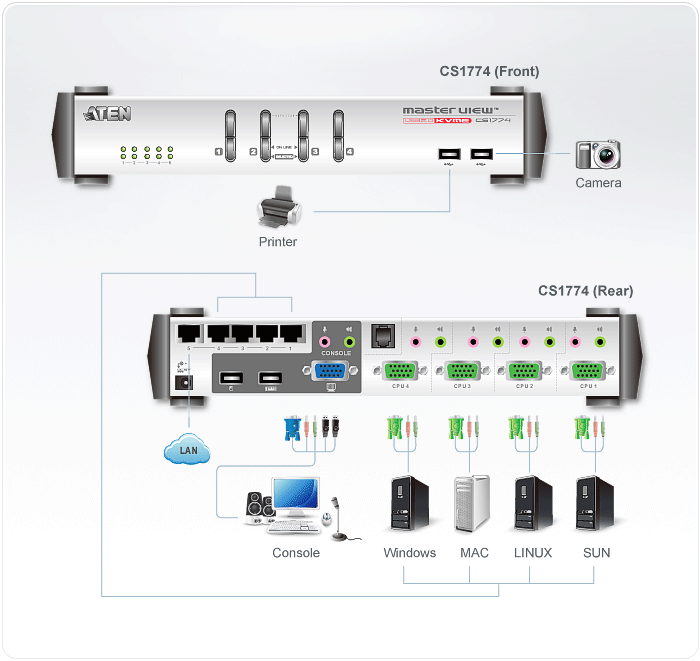

CS1774 is a multi-computer KVM Switch with built-in 3-in-1 (KVM Switch, USB 2.0 and Ethernet) function. It can simultaneously control 4 servers via a set of USB keyboard, mouse, and monitor. Moreover, the built-in USB and Ethernet Switch ports can rapidly access USB peripheral devices and share Internet resources at ease.

포장 내용물

  • 1x 4 ports KVME™ Switch
  • 4x USB KVM Cables
  • 1x USB-to-PS/2 Converter
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x User Instructions
  • USB 2.0 KVME™ Switch with Ethernet Hub/USB Hub
  • Five auto-sensing dual speed ports (Ethernet/Fast Ethernet) plugand-and-play enabled; hub complies with IEEE802.3/IEEE802.3u Standard
  • 2 port USB 2.0 Hub built in
  • Multiplatform support: compatible with all operation platforms PC(Windows,Linux and most others), Mac and Sun
  • With speaker and microphone support
  • Bi-directional switching and flexible interoperability;switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
  • Buzzer On/Off via hotkey
  • Keyboard and mouse emulation for error free booting
  • Computer selection via front panel pushbuttons and hotkeys
  • superior video quality - up to 2048 x 1536; DDC2B
  • OS Compatibility:Windows 98, Windows ME, Windows 2000, Windows 2003, Windows XP, Windows Vista, LINUX, Mac OS 8.6/9/10 and SUN Solaris 8/9.
  • SUN/Mac keyboard support and emulation*
    *1.PC keyboard combinations emulate SUN/Mac keyboards.
    *2.SUN/Mac keyboards only work with their own computers.
컴퓨터 연결4
포트 선택Hotkey, Pushbutton
USB 포트 / 오디오 포트 선택Hotkey
커넥터
콘솔 포트2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM 포트4 x SPHD-15 Female (Green)
4 x Mini Stereo Jack Female (Green)
4 x Mini Stereo Jack Female (Pink)
USB 허브2 x USB Type A Female (White)
펌웨어 업그레이드1 x RJ-11 Female (Black)
전원1 x DC Jack(Black)
스위치
포트4 x Pushbutton
LED
USB 링크4 (Green)
10/100 Mbps5 (Green)
온라인 / 선택됨4 (Orange)
링크5 (Green)
에뮬레이션
키보드 / 마우스USB
비디오2048 x 1536; DDC2B
스캔 간격1-99 seconds
소비 전력DC 5.3V, 5W
사용 환경
사용 온도0-50°C
보관 온도-20°-60°C
습도0-80% RH, Non-condensing
제품 외관
재질Metal
무게0.92 kg ( 2.03 lb )
크기 (L X W X H)27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
노트일부 랙 마운트 제품은,WxDxH의 표준 물리적 치수를 LxWxH 형식으로 사용하고 있습니다.
