DVI HDBaseT-Lite Extender (1080p@70m) (HDBaseT Class B)

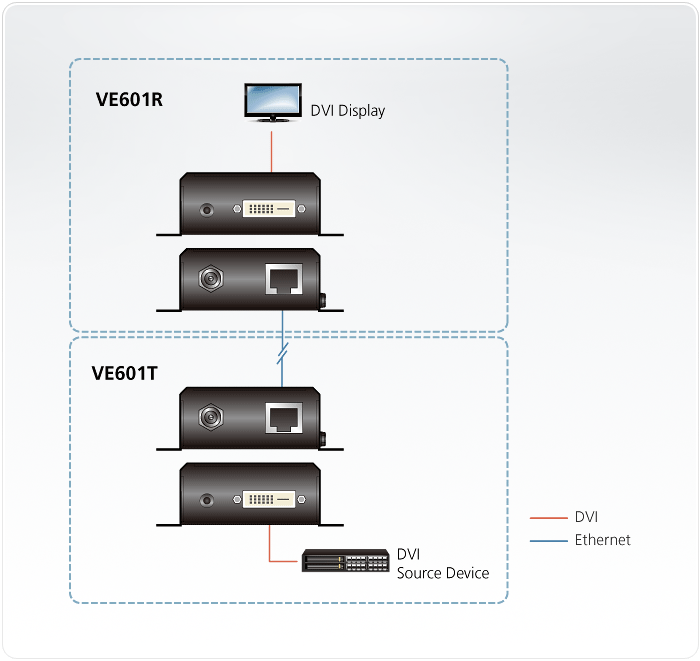

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
HDBaseT ROHS Supports(3D) Weee

Package Contents

  • 1x VE601T/R DVI HDBaseT-Lite Extender
  • 2x Power Adapters
  • 1x User Instructions
  • HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable
  • HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
  • Rack-Mountable

DVI HDBaseT-Lite Extender
(HDBaseT Class B)

Video Input
InterfacesN/A1 x DVI-D Female (White)
ImpedanceN/A100 Ώ
Max. DistanceN/AUp to 1.8m
Video Output
Interfaces1 x DVI-D Female (White)N/A
Impedance100 ΏN/A
Max. DistanceTBDTBD
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz340 MHz
ComplianceDVI (3D, Deep Color)
HDCP compatible
DVI (3D, Deep Color)
HDCP compatible
Max. Resolutions / DistanceUp to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a);
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a)
Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a);
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a)
Connectors1 x DC Jack with locking1 x DC Jack with locking
Consumption5 VDC, 4.23 W5 VDC, 1.85 W
Operating Temperature0-50°C0-50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0% - 80% RH, Non-condensing0% - 80% RH, Non-condensing
Physical Properties
Weight0.25 kg ( 0.55 lb )0.25 kg ( 0.55 lb )
Dimensions (L x W x H)10.20 x 8.70 x 3.00 cm
(4.02 x 3.43 x 1.18 in.)
10.20 x 8.70 x 3.00 cm
(4.02 x 3.43 x 1.18 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
