HDMI/IR Cat 5 Extender (1080p@40m)
VE810

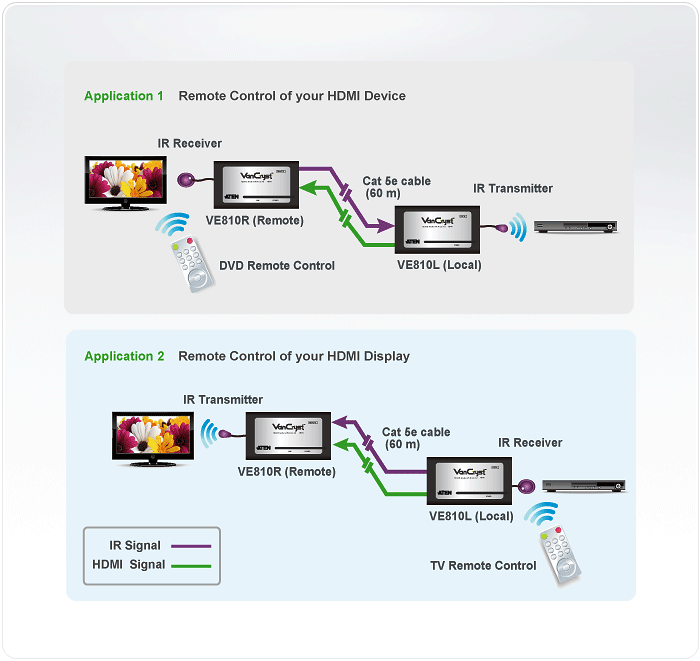

The VE810 HDMI Extender extends your HDMI display up to 60 m from your HDMI source device using two Cat 5e cables. In addition, VE810 is equipped with IR signaling pass-through which allows the IR channel to control from the remote to local unit, to control the HDMI source, or from the local to remote unit, to control the display device.
For flexibility and convenience, the VE810 setup requires only one power adapter for both units. The VE810R remote unit will function without the need of an additional power adapter because it will be powered by the VE810 local unit.
Full HD(1080P) HDMI ROHS Supports(3D) Supports(PS3) Weee

Package Contents

  • 1x VE810L (Local Unit) HDMI Extender
  • 1x VE810R (Remote Unit) HDMI Extender
  • 1x Power Adapter (Local Unit)
  • 1x Mounting Kit
  • 1x User Instructions
  • 1x IR Receiver
  • 1x IR Transmitter

Your cart

Total
USD
Shipping and discount codes are added at checkout.



Dual Interface
Remote Control
Either the HDMI device or display can be controlled via IR control
Dual Interface
Non-Powered (Only one power adapter)
The remote unit functions without the need of an additional power adapter

  • Uses less expensive Cat 5e cables to connect the local and the remote units
  • Supports IR signals for remote control
  • Either the HDMI device or display can be controlled via IR control
  • 8 segment equalization adjustment switch optimizes display quality
  • Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
  • Superior video quality – 1920 x 1200 @ 60Hz , up to 1080p
  • Supports Dolby True HD and DTS HD Master Audio
  • HDMI (3D, Deep Color)
  • DDC compatible
  • HDCP 1.1 compatible
  • Compatible with all ATEN HDMI switches and splitters
  • Non-Powered (only require one power adapter)
FunctionVE810LVE810R
Video Input
Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 ΏN/A
Max. Distance1.8 mN/A
Video Output
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 Ώ
Video
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz225 MHz
ComplianceHDMI (3D, Deep Color)
HDCP 1.4 Compatible
HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Max. Resolutions / DistanceUp to 1080p@40m; 1080i@60mUp to 1080p@40m; 1080i@60m
Audio
Input1 x HDMI Type A Female (Black)N/A
OutputN/A1 x HDMI Type A Female (Black)
Control
IR1 x Mini Stereo Jack Female (Black)1 x Mini Stereo Jack Female (Black)
Power
Connectors1 x DC Jack1 x DC Jack
Consumption5 VDC, 1.52W5 VDC, 1.35W
Environmental
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.16 kg ( 0.35 lb )0.16 kg ( 0.35 lb )
Dimensions (L x W x H)9.00 x 5.74 x 2.40 cm
(3.54 x 2.26 x 0.94 in.)
9.00 x 5.74 x 2.40 cm
(3.54 x 2.26 x 0.94 in.)
Carton Lot20 pcs20 pcs
