65W 3-Port GaN Charger

New
UP365
  • Delivery of up to 65W across three ports
  • Powered by GaN Technology
  • CoreShield™ – Multiple protective mechanisms guarantee safe and stable performance
  • Foldable and portable construction
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request

Pocket Size. Peak Power

Pocket-Sized.
Power-Ready.

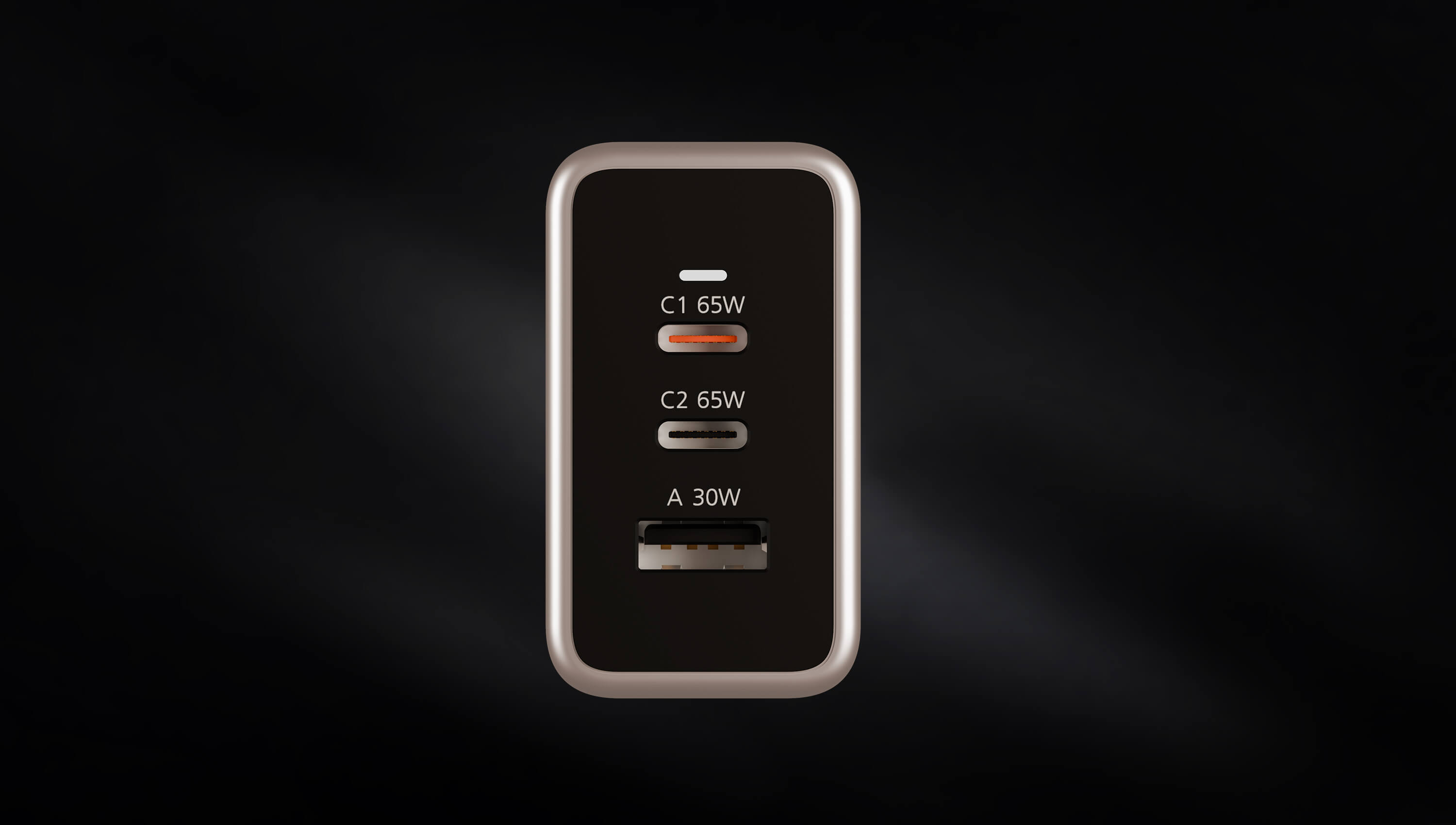

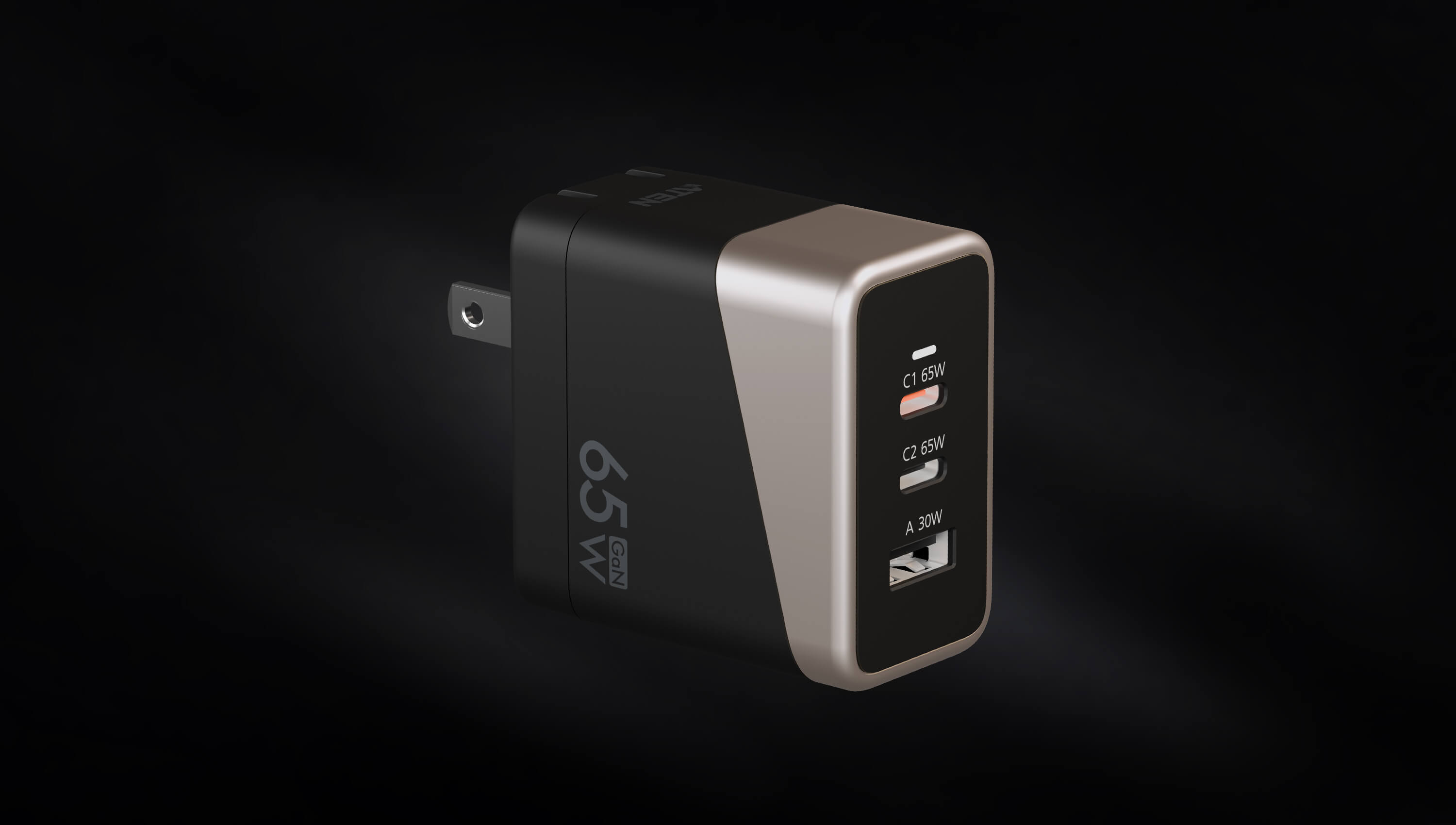

The UP365 is a 65W GaN Compact Charger that powers up to three devices simultaneously via its USB ports. Featuring USB-C Power Delivery for efficient, high-speed charging, it eliminates the need to carry multiple power adapters.

It is ideal for professionals and those who work frequently on the go. Its lightweight, pocket-sized design makes it easy to grab and hit the road, or quickly recharge your devices at any stop – fast and effortless.

Small, Sleek, and Socket-Friendly

Compact and slim to fit easily into standard power strips and multi-outlet wall plates without blocking adjacent sockets.

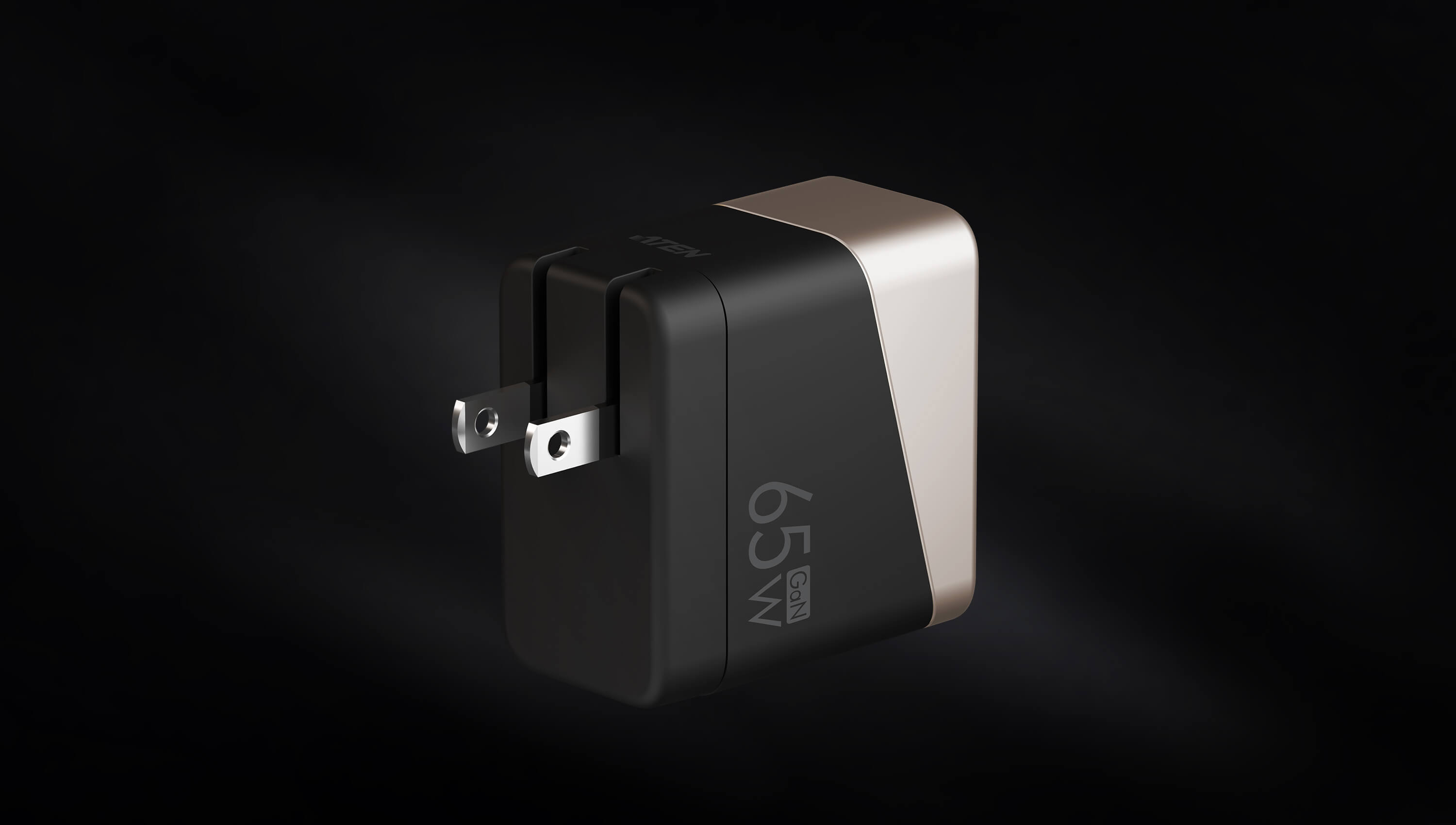

Flip and Plug. Fold and Go.

With the plug folded in, the charger stays compact for travel while preventing scratches or snagging on the move.

PD 3.0 Fast Charging

The UP365 delivers laptop-level power in a palm-sized design, charging compatible laptops such as MacBook Air up to 50% in 30 minutes.

Empowered by GaN

The UP365 is engineered with GaN technology to enable efficient power conversion.By minimizing energy loss and maximizing thermal efficiency, it outperforms traditional chargers while remaining remarkably compact.

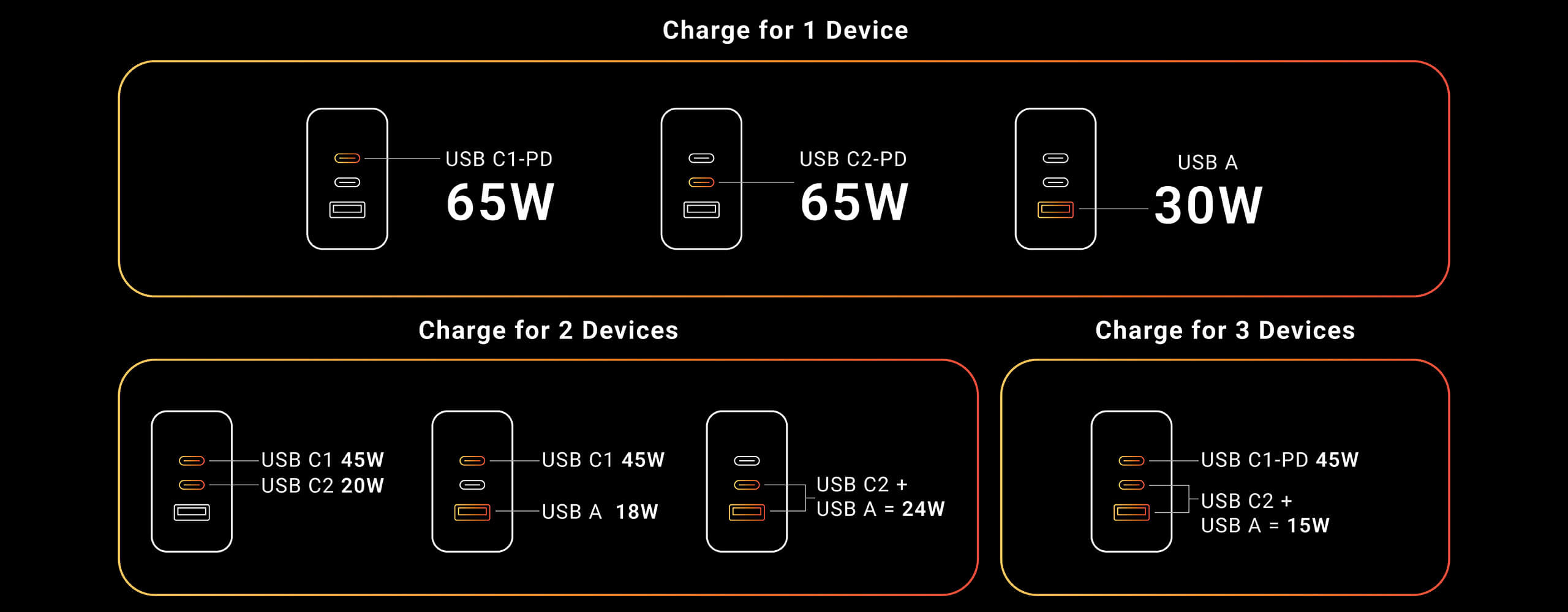

How Power Is Shared across Ports

ATEN CoreShield™ Safety Protection

One Charger. Broad Compatibility.

Compatible with PD 3.0, AFC, and multiple fast-charging standards.

What’s in the Box

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1 x 65W 3-Port GaN Charger
  • Delivery of Up to 65W Across Three Ports

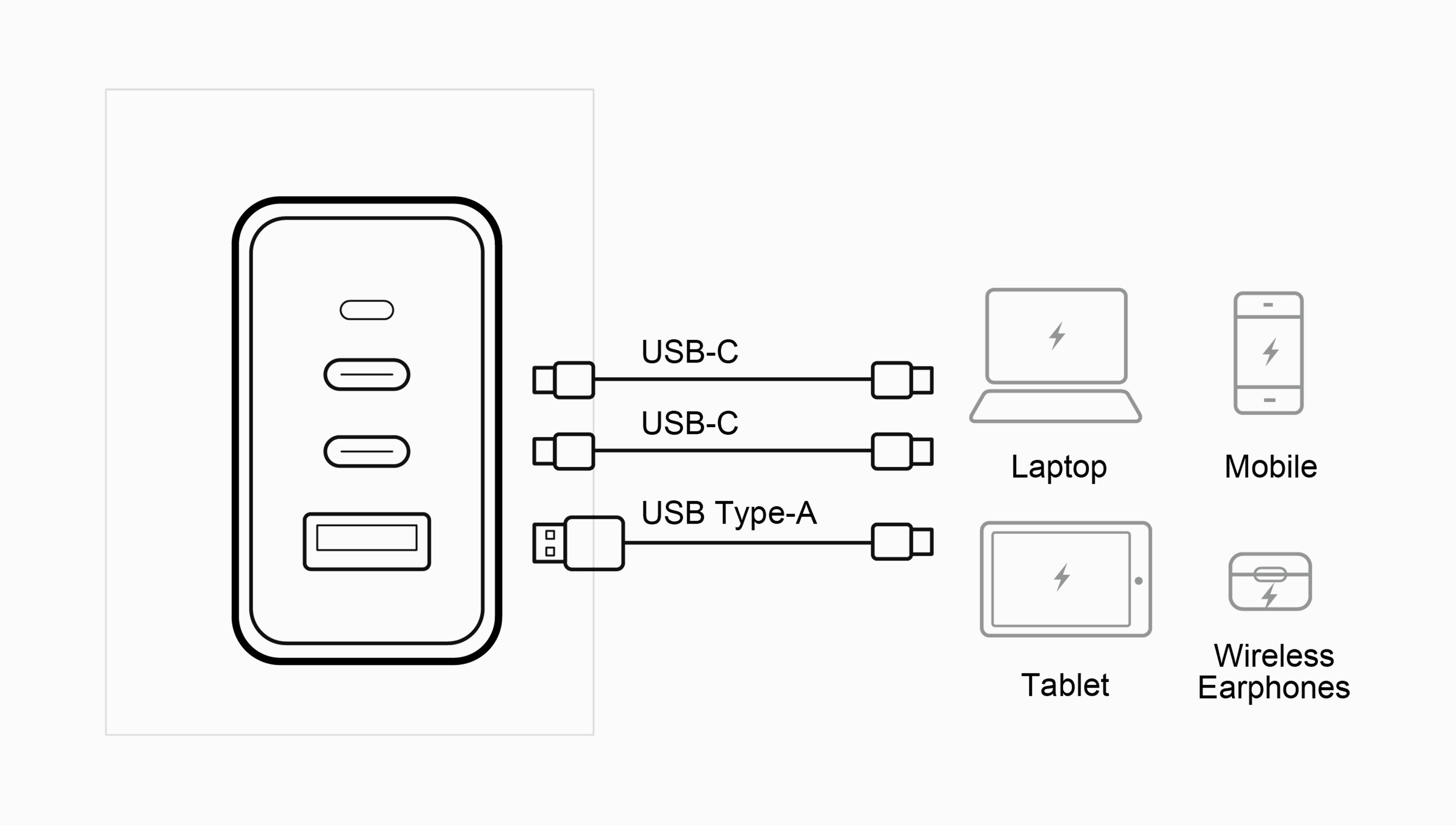

    • Contains an USB Type-A connector and two USB-C connectors to enable charging of up to three devices simultaneously at the highest possible speed with 65W of total power, and meanwhile,keeping your desktop organized and clean.



  • Powered by GaN Technology
    • Engineered with GaN technology to significantly reduce heat loss without compromising charging speed or safety in a compact form factor.



  • CoreShield™ Protection Integrated
    • Integrated with ATEN CoreShield™ system, the charger features multi-layer defense against overvoltage, short-circuit, over temperature, overcurrent, surge, static, and EMI. Meanwhile, the charger is built with fire-resistant materials to minimize fire risks.



  • Foldable and Portable Construction
    • With the charging brick so compact and the plug foldable, the charger boasts a travel-friendly design to easily slide into your pocket. The foldable plug avoids scratching your tech gear screens and other belongings.



  • Firm Connection with Sliding Lock*
    • Firmly secures the charging by preventing accidental separation between the plug and the outlet.

Note: Only applicable to EU and KR versions.

Power Plug
Model
UP365-US
UP365-EU
UP365-KR
Plug Type
US Plug - Foldable
EU Plug - Foldable
KR Plug - Foldable
Dimensions(W x D x H)
30 x 55.2 x 53mm
30 x 64.6 x 53mm
30 x 64.6 x 53mm
Weight
118g
123g
123g
Input
Input Voltage Range100Vac - 240Vac
Input Frequency Range50Hz / 60Hz
Rated Input current1.5A max.
Output
WattsUSB-C1: 65W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A)
USB-C2: 65W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A)
USB-A: 30W max. (5V⎓3A, 9V⎓3A, 12V⎓2.5A, 20V⎓1.5A)
USB-C1+C2: 45W+20W max.
USB-C1+A: 45W+18W max.
USB-C2+A: 24W max. (5V⎓4.8A)
USB-C1+(C2+A): 45W+15W max.
Total outputs: 65W max.
Physical Properties
Output Type2x USB-C
1x USB Type-A
Power Indicator1x LED light
Environmental
Operating Temperature0 ~ 35℃
Operating Humidity5 ~ 90 % RH (no condensation)

Datasheet

UP365-65W-3-Port-GaN-Charger-Datasheet-en.pdf (927.57 KB)
