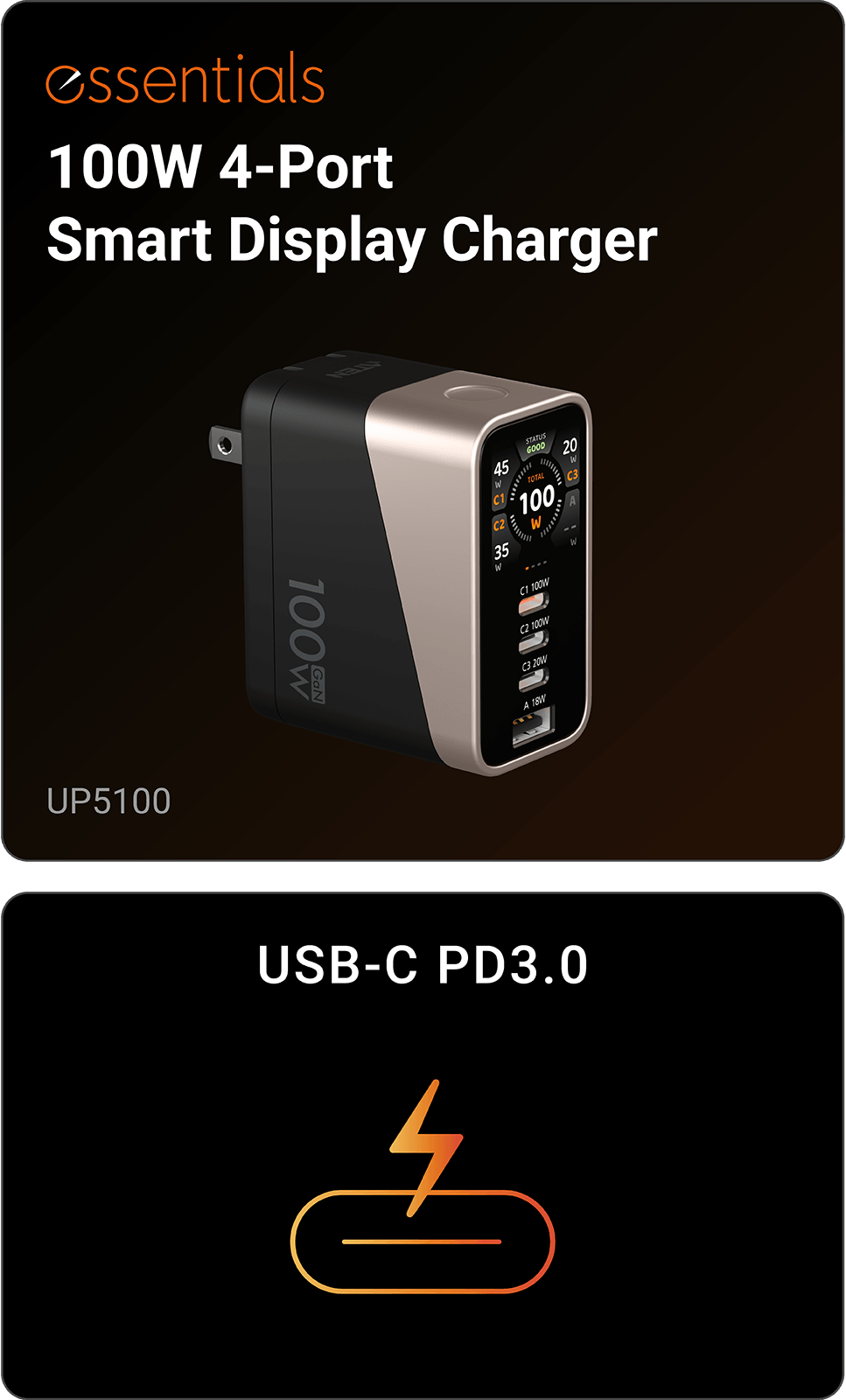

100W 4-Port Smart Display Charger

New
UP5100
  • Delivery of up to 100W across four ports
  • Smart display that visualizes charging status and fits your vibe
  • Powered by GaN Technology
  • CoreShield™ – Multiple protective mechanisms guarantee safe and stable performance
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request

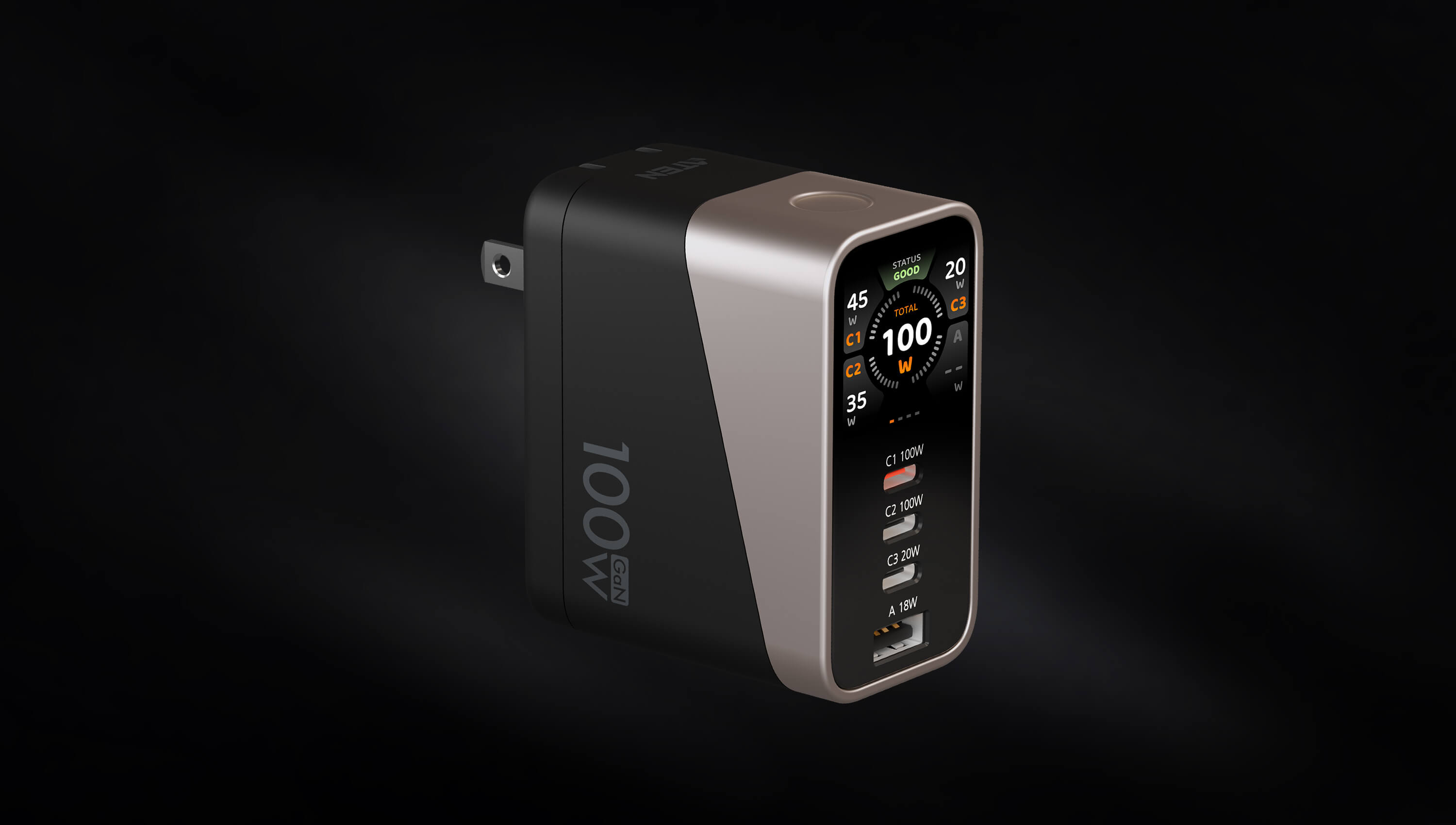

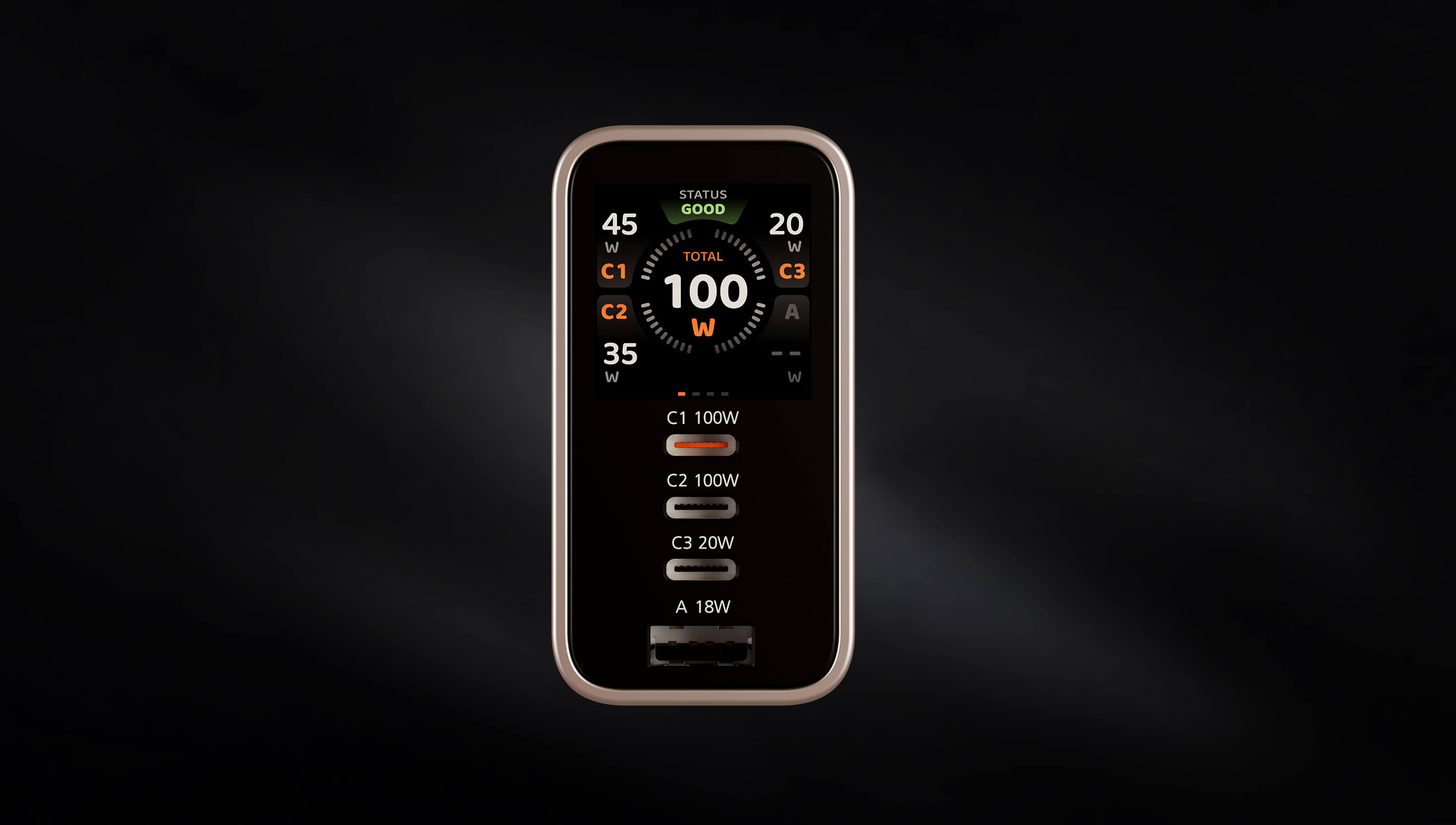

100W Full-Speed Charging with Smart Display

Full Power, Fully Displayed

The UP5100 is a 4-port GaN charger engineered for demanding workdays and heavy multitasking. With up to 100W output, it keeps pro-level laptops like the MacBook Pro charging at full speed while charging other essential devices at the same time.

Its integrated Smart Display provides real-time visibility of total output and individual port power, allowing users to easily understand how power is distributed across devices. By consolidating multiple adapters into a single charger, the UP5100 also helps maintain a clean and organized workspace.

Personalized Display Style

Experience exclusive, market-first display themes designed to adapt to your charging setup and personal style.
  • Explorer: Bold, on-the-go vibe
  • Lifestyle: Clean and everyday aesthetic
  • Dashboard: Data-centric design

Power Allocation & Smart Temperature Monitoring

Real-time total and per-port output tracking provide a clear view of power distribution, while smart temperature monitoring displays the charger’s thermal state during use.

Rotatable Screen for Optimal Viewing

Press and hold the touch sensor to rotate the display 90° , ensuring a clear and comfortable view in any orientation.

Screen Timeout

Adjust the screen timeout to suit your workflow –whether you prefer a brief status check or continuous power monitoring.

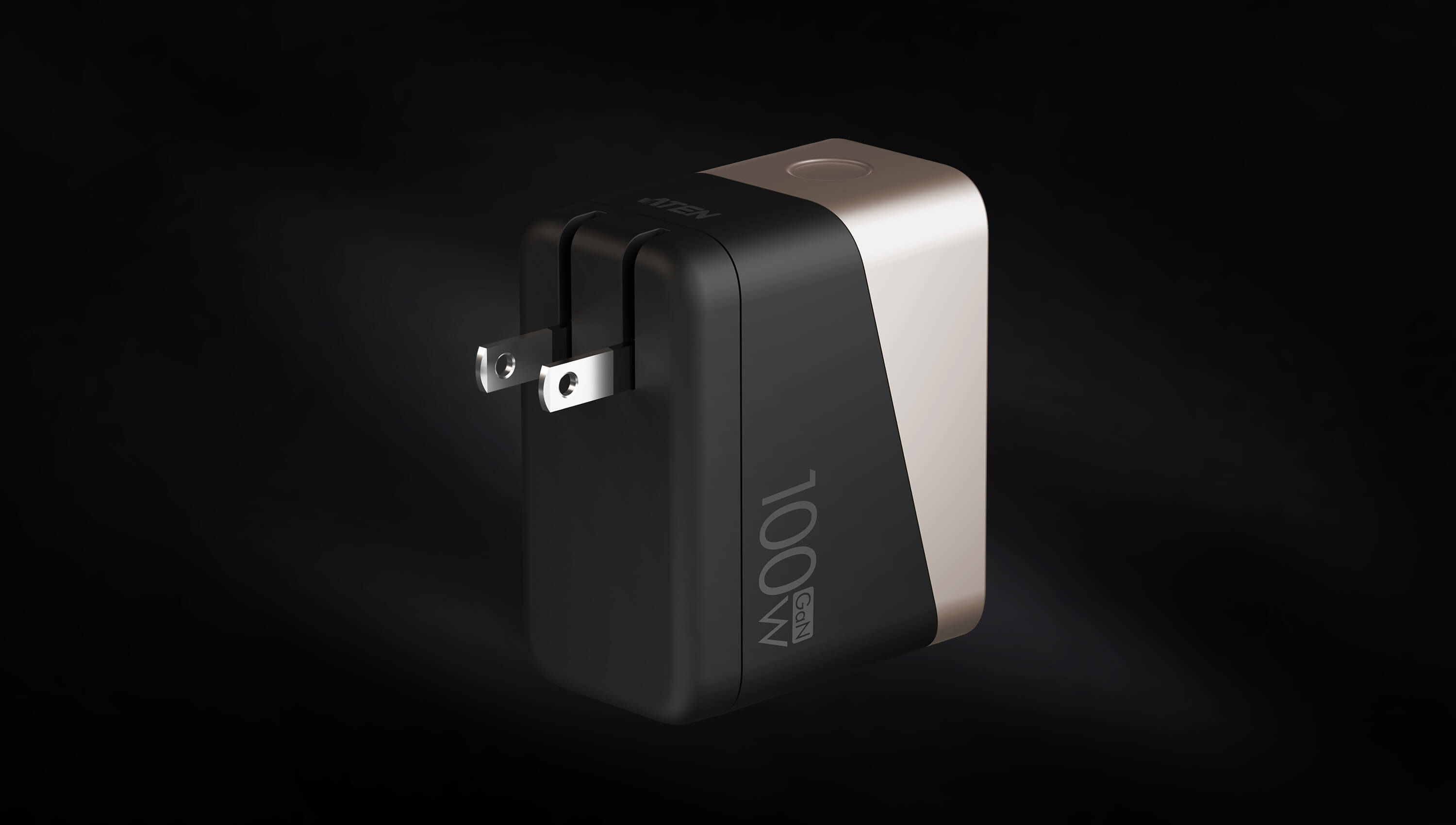

Flip and Plug. Fold and Go.

With the plug folded in, the charger stays compact for travel while preventing scratches or snagging on the move.

PD3.0 Fast Charging

With USB-C PD 3.0 and 100W output, the charger delivers up to 100W charging for laptops like MacBook Pro, supporting demanding workflows with reliable power.

Empowered by GaN

The UP5100 is engineered with GaN technology to enable efficient power conversion. By minimizing energy loss and maximizing thermal efficiency, it outperforms traditional chargers while remaining remarkably compact.

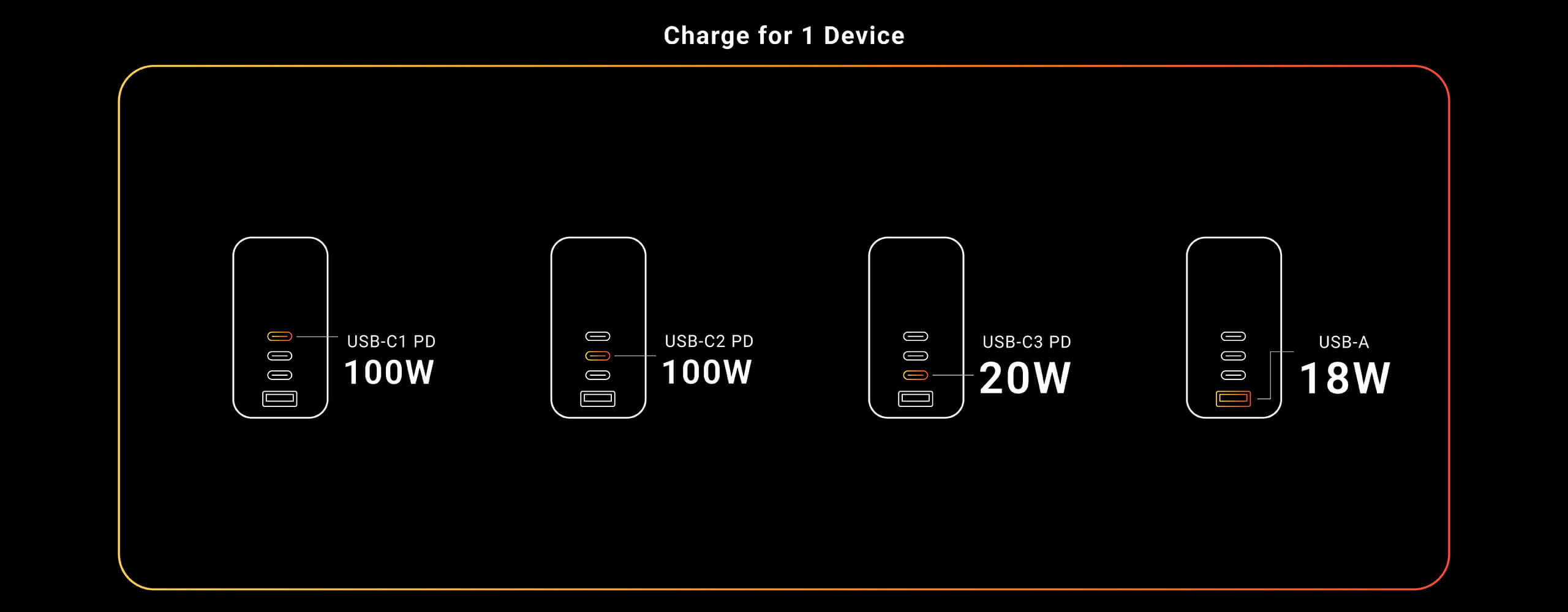

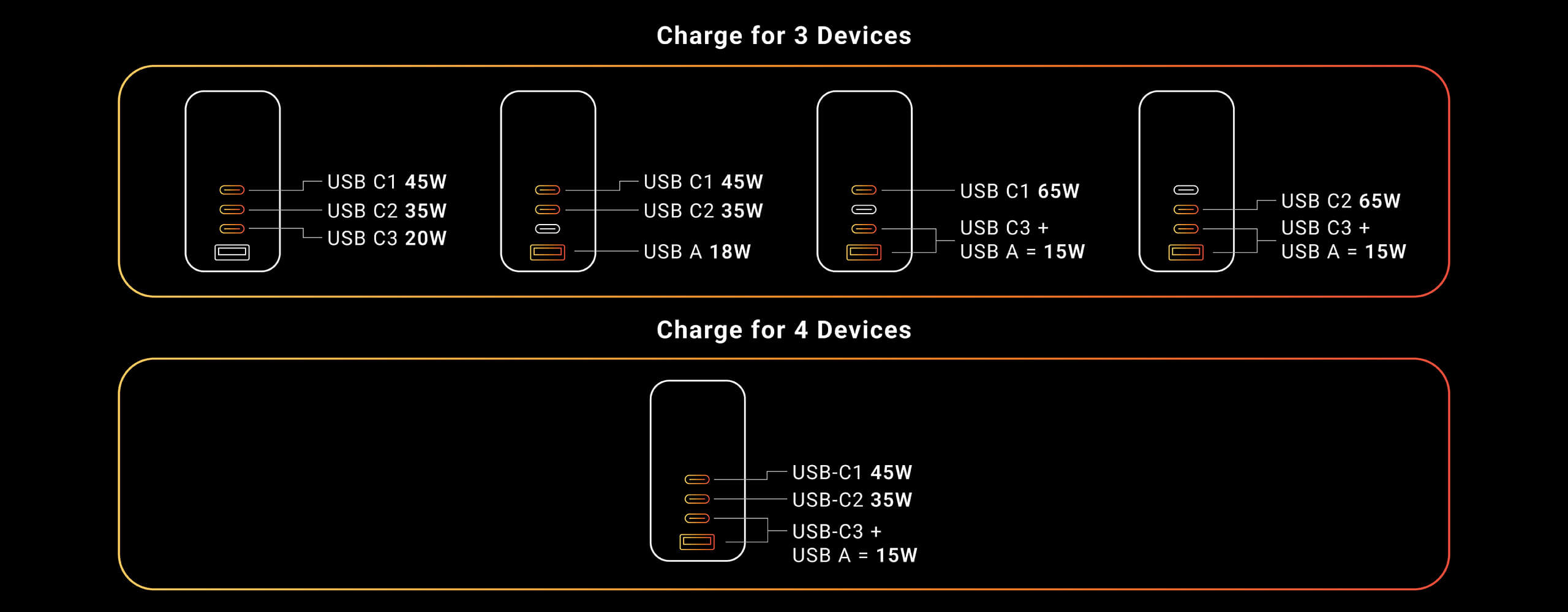

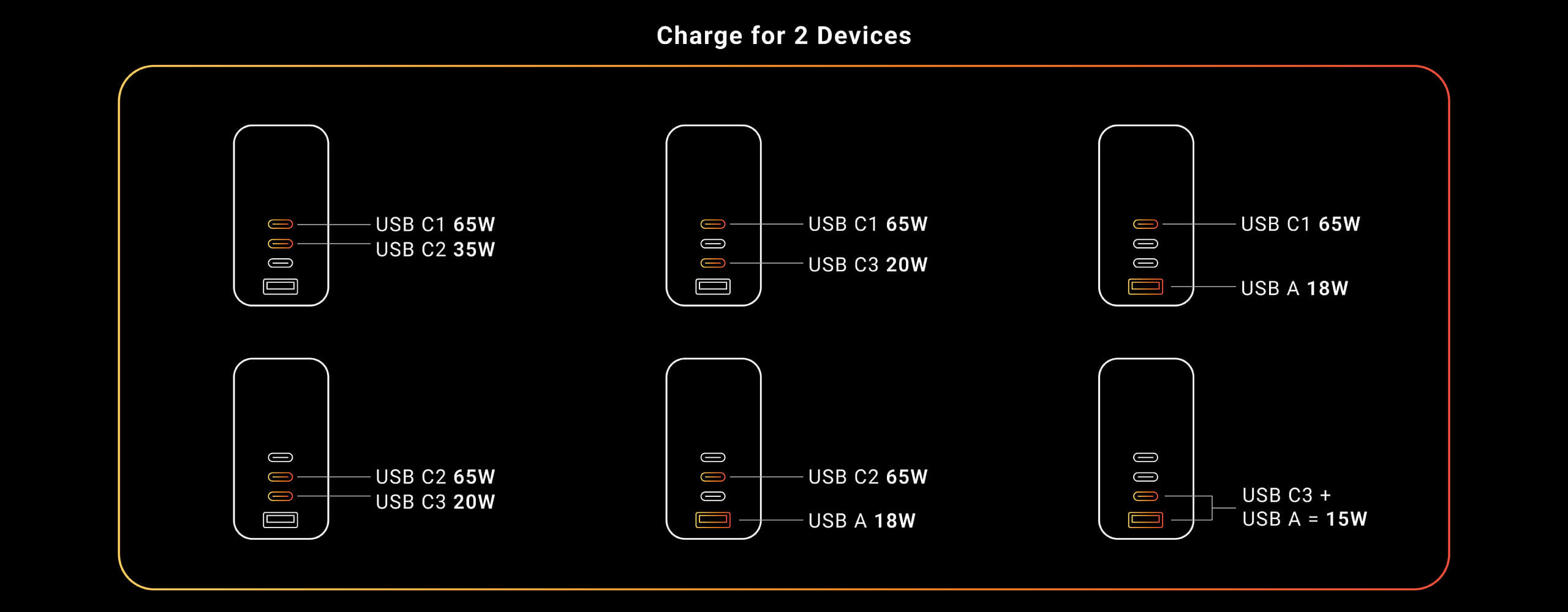

How Power Is Shared across Ports

ATEN CoreShield™ Safety Protection

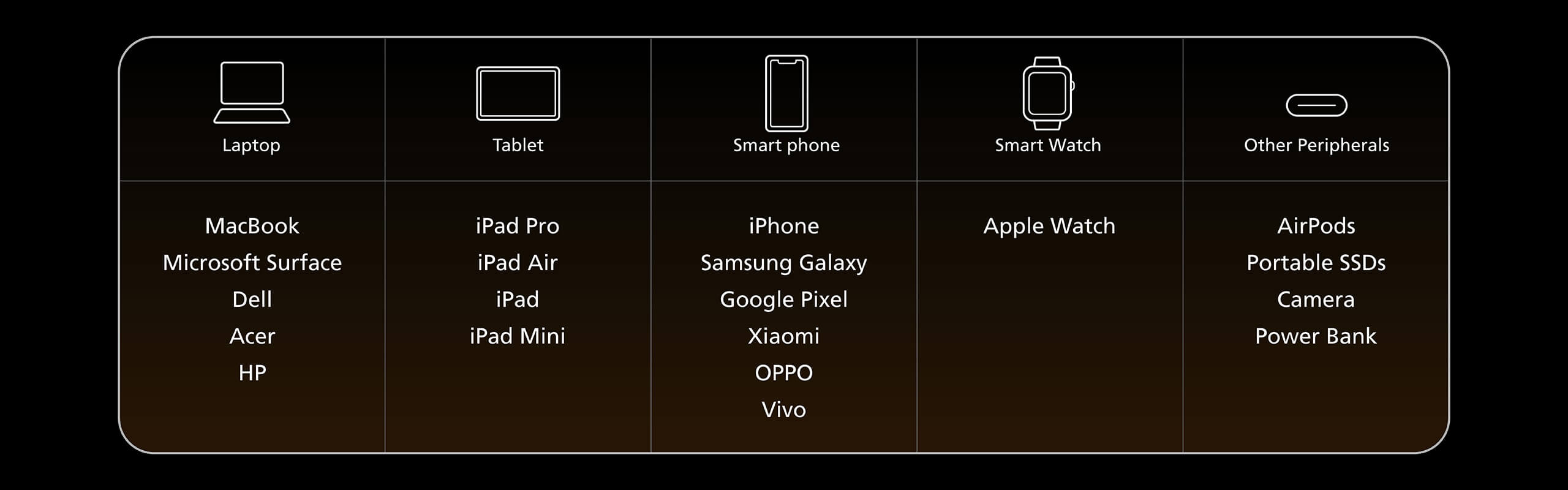

One Charger. Broad Compatibility.

Compatible with PD 3.0, AFC, and multiple fast-charging standards.

What’s in the Box

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1 x 100W 4-Port Smart Display Charger
  • 1 x 240W USB-C to USB-C Magnetic Charging Cable (1m)
  • Delivery of Up to 100W Across Four Ports

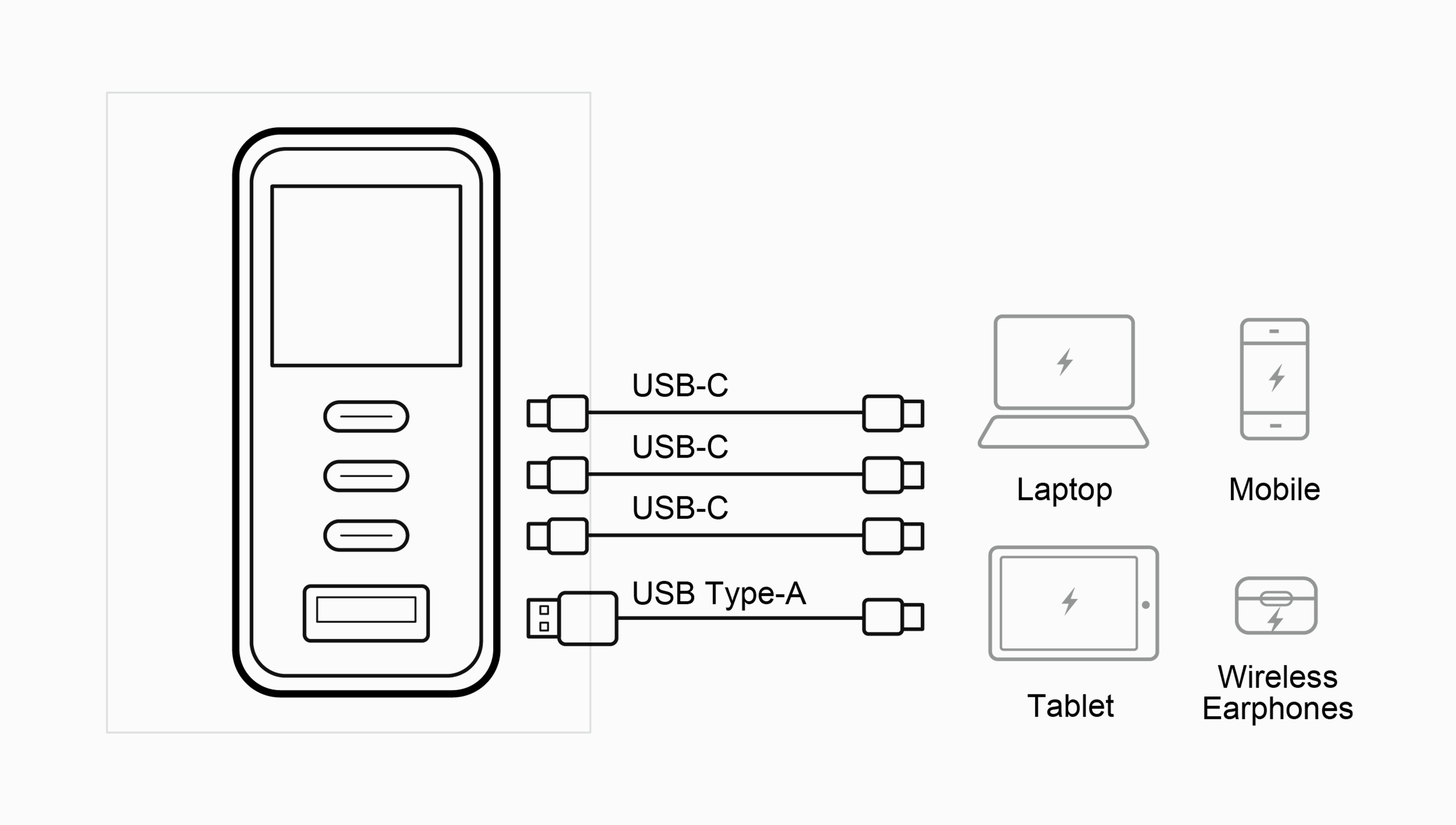

    • Contains an USB Type-A connector and three USB-C connectors to enable charging of up to four devices simultaneously at the highest possible speed with 100W of total power, and meanwhile, keeping your desktop organized and clean.



  • Smart Display That Visualizes Charging Status and Fits Your Vibe
    • With three display themes to choose from, you get to see the real-time operation status, such as wattage output readouts and thermal condition, at a glance on the screen that matches your style.



  • Dynamic Power Adjustment Method
    • Once the charger’s temperature exceeds safe threshold, it will automatically adjust the output power to simultaneously maximize charging speed and preserve device longevity.



  • Powered by GaN Technology
    • Engineered with GaN technology to significantly reduce heat loss without compromising charging speed or safety in a compact form factor.



  • CoreShield™ Protection Integrated
    • Integrated with ATEN CoreShield™ system, the charger features multi-layer defense against overvoltage, short-circuit, over temperature, overcurrent, surge, static, and EMI. Meanwhile, the charger is built with fire-resistant materials to minimize fire risks.



  • Foldable and Portable Construction
    • With the charging brick so compact and the plug foldable, the charger boasts a travel-friendly design to easily slide into your pocket. The foldable plug avoids scratching your tech gear screens and other belongings.



  • Firm Connection with Sliding Lock*
    • Firmly secures the charging by preventing accidental separation between the plug and the outlet.

Note: Only applicable to EU and KR versions.

Power Plug
Model
UP5100-US
UP5100-EU
UP5100-KR
Plug Type
US Plug - Foldable
EU Plug - Foldable
KR Plug - Foldable
Dimensions(W x D x H)
35.6 x 58.9 x 72.2mm
35.6 x 70 x 70.2mm
35.6 x 70 x 70.2mm
Weight
190g
200g
200g
Input
Input Frequency Range50Hz / 60Hz
Rated Input current1.5A max.
Output
WattsUSB-C1: 100W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A)
USB-C2: 100W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A)
USB-C3: 20W max. (5V⎓3A, 9V⎓2.22A, 12V⎓1.67A)
USB-A: 18W max. (5V⎓3A, 9V⎓2A, 12V⎓1.5A)
USB-C1+C2: 65W+35W max.
USB-C1/C2+C3: 65W+20W max.
USB-C1/C2+A: 65W+18W max.
USB-C3+A: 15W max. (5V⎓3A)
USB-C1+C2+C3: 45W+35W+20W max.
USB-C1+C2+A: 45W+35W+18W max.
USB-C1/C2+(C3+A): 65W+15W max.
USB-C1+C2+(C3+A): 45W+35W+15W max.
Total outputs: 100W max.
Physical Properties
Output Type3x USB-C
1x USB Type-A
Power Indicator1x TFT Smart Display
Environmental
Operating Temperature0 ~ 35℃
Operating Humidity5 ~ 90 % RH (no condensation)
