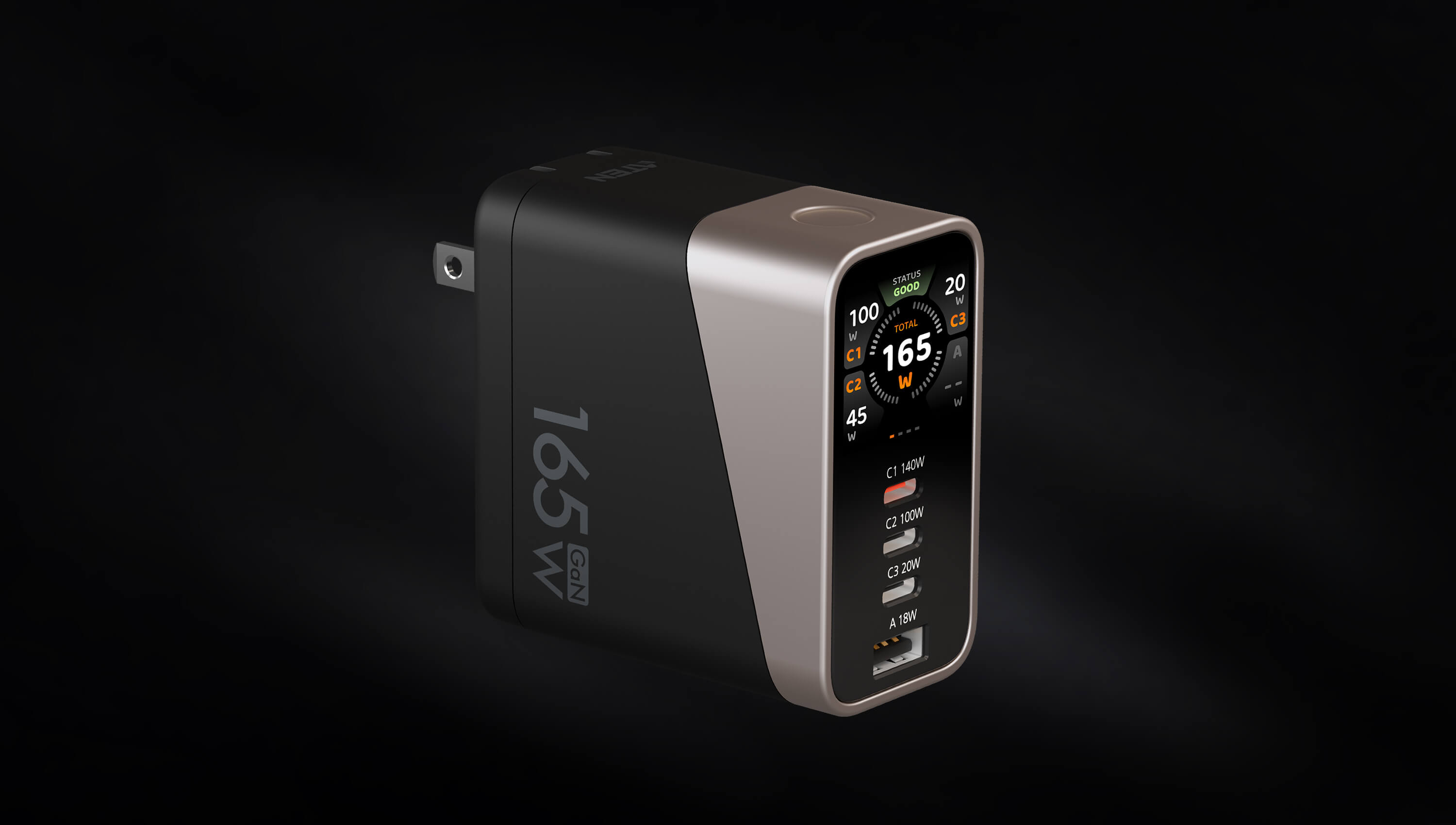

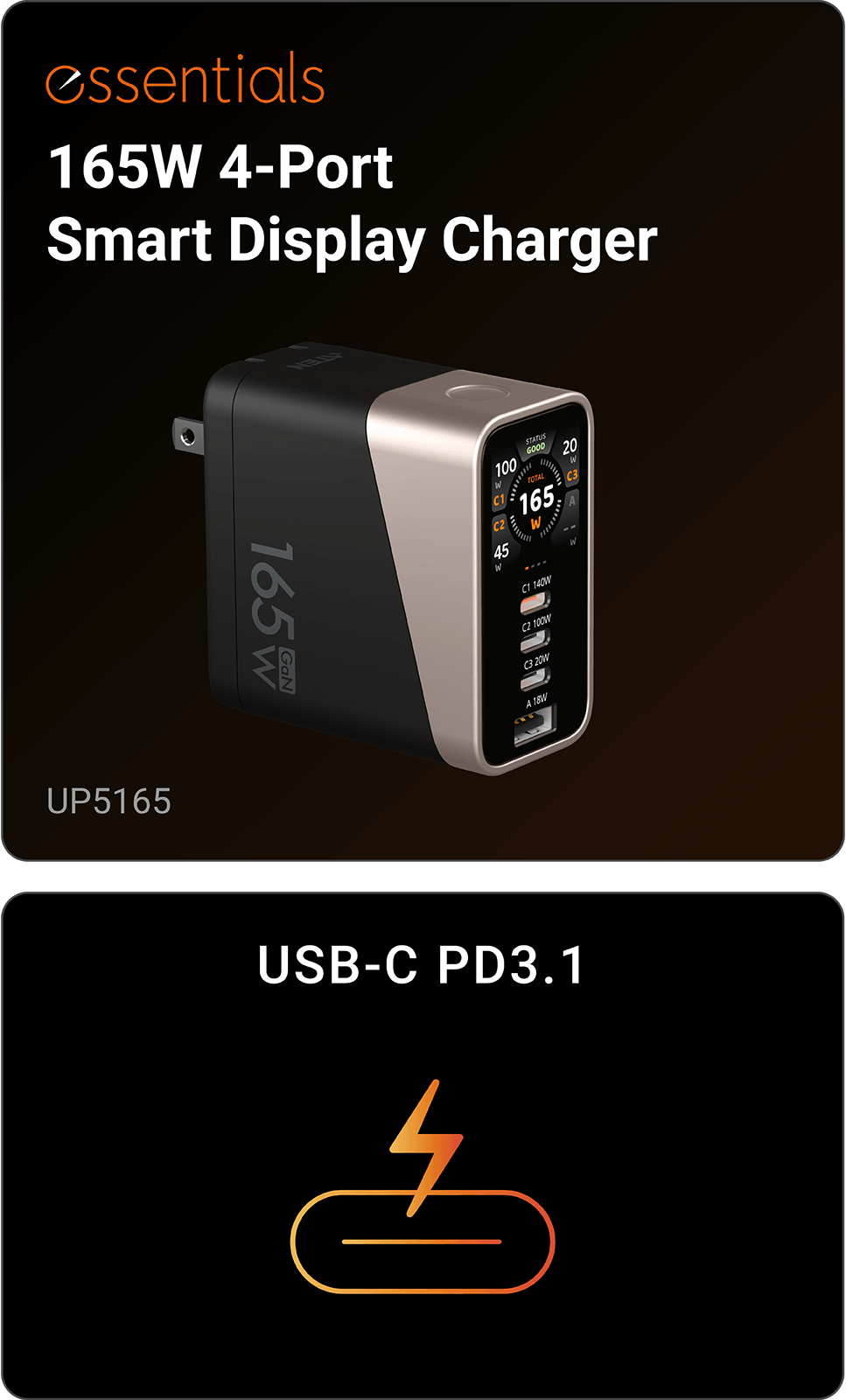

165W 4-Port Smart Display Charger

New
UP5165
  • Delivery of up to 165W across four ports
  • Smart display that visualizes charging status and fits your vibe
  • Powered by GaN Technology
  • CoreShield™ – Multiple protective mechanisms guarantee safe and stable performance
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request

Total Power Control for Your Workstation

165W of Power, On Display

The UP5165 is a 165W 4-port GaN charger designed to act as the central power hub for a professional workstation. Its high-capacity output can power two laptops simultaneously or support a MacBook Pro alongside other high-demand devices, replacing multiple adapters with a single charger to keep your desk setup cleaner and more organized.

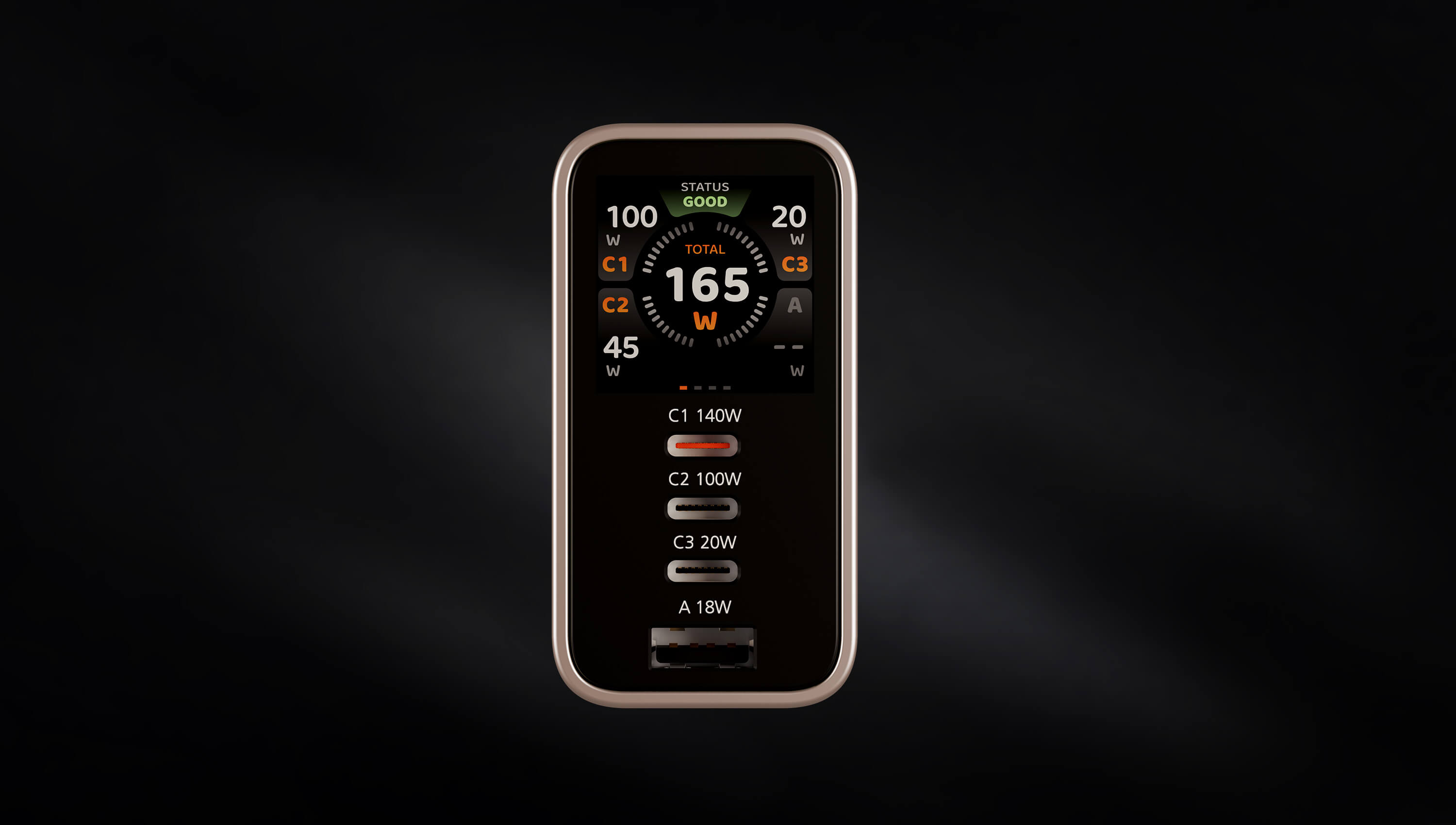

Its integrated Smart Display shows real-time output for each port, providing clear visibility into how power is distributed across connected devices. Built for video editors, gamers, and desk-bound power users, the UP5165 delivers stable high-capacity charging while keeping desktop setups clean and organized.

Personalized Display Style

Experience exclusive, market-first display themes designed to adapt to your charging setup and personal style.
  • Explorer: Bold, on-the-go vibe
  • Lifestyle: Clean and everyday aesthetic
  • Dashboard: Data-centric

Power Allocation & Smart Temperature Monitoring

Real-time total and per-port output tracking provide a clear view of power distribution, while smart temperature monitoring displays the charger’s thermal state during use.

Rotatable Screen for Optimal Viewing

Press and hold the touch sensor to rotate the display 90°, ensuring a clear and comfortable view in any orientation.

Screen Timeout

Adjust the screen timeout to suit your workflow – whether you prefer a brief status check or continuous power monitoring.

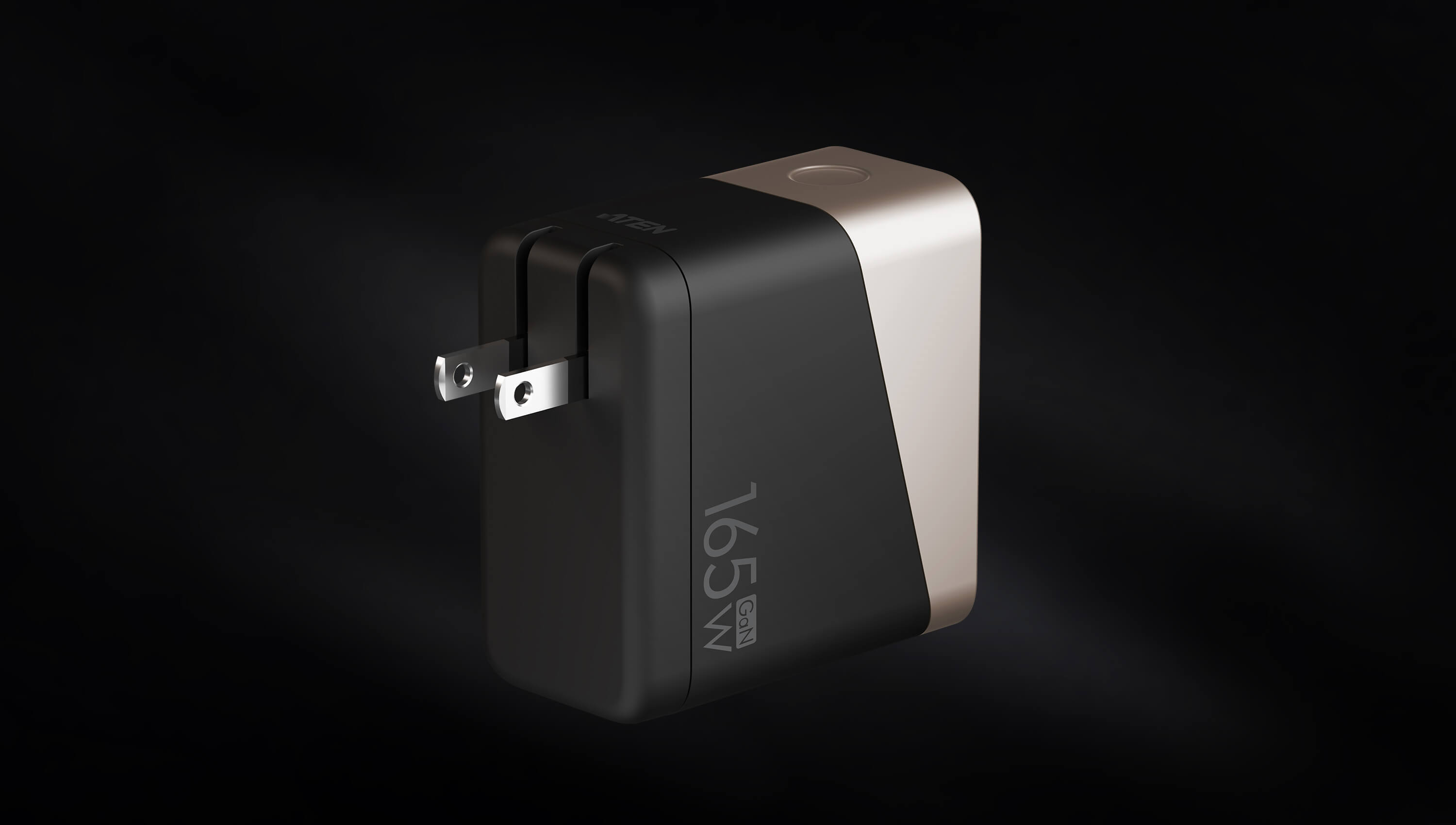

Flip and Plug. Fold and Go.

With the plug folded in, the charger stays compact for travel while preventing scratches or snagging on the move.

PD 3.1 Fast Charging

With 165W total output and up to 140W USB-C single-port output, the UP5165 can fast charge demanding laptops like the MacBook Pro to 50% in just 30 minutes.

Empowered by GaN

The UP5165 is engineered with GaN technology to enable efficient power conversion. By minimizing energy loss and maximizing thermal efficiency, it outperforms traditional chargers while remaining remarkably compact.

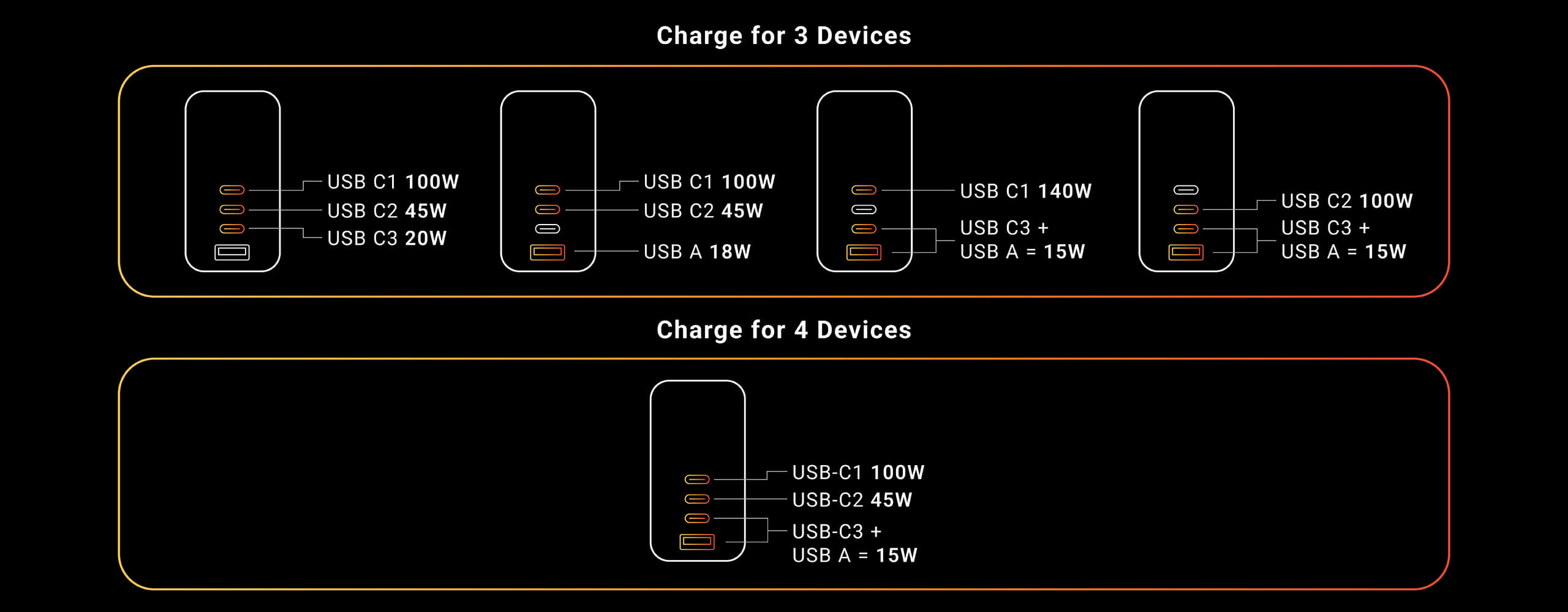

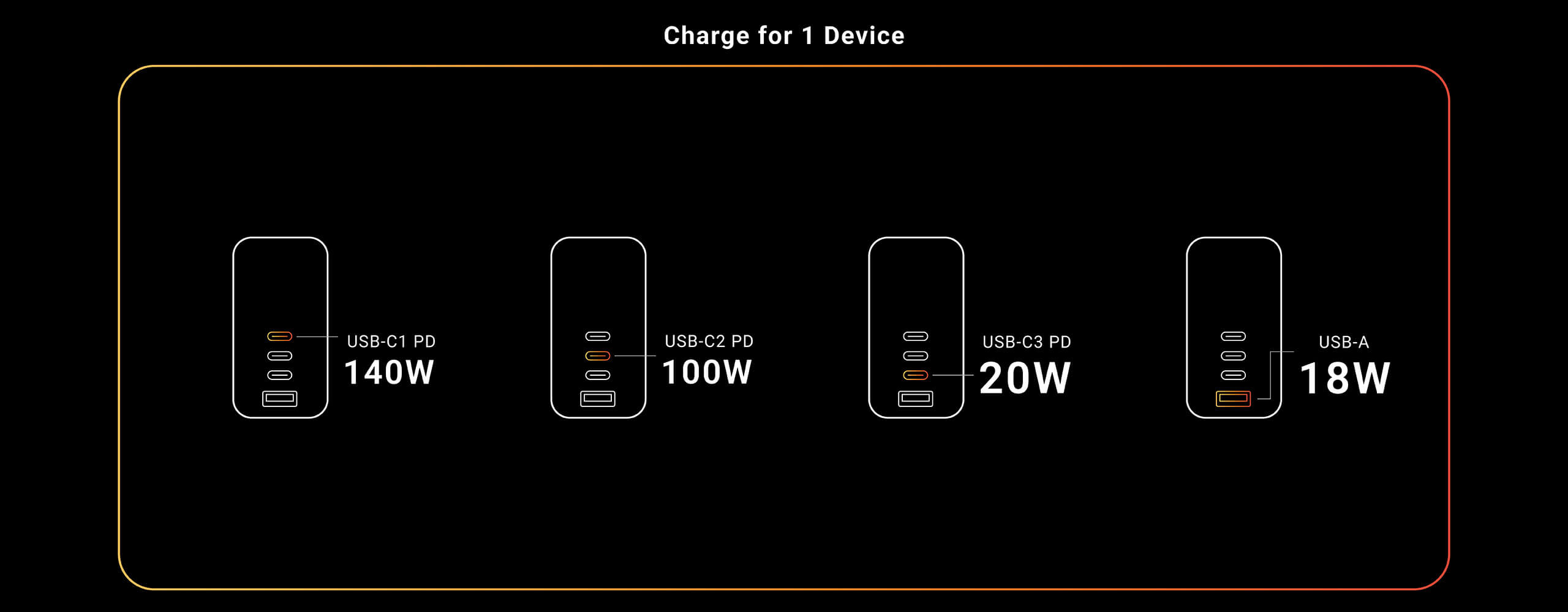

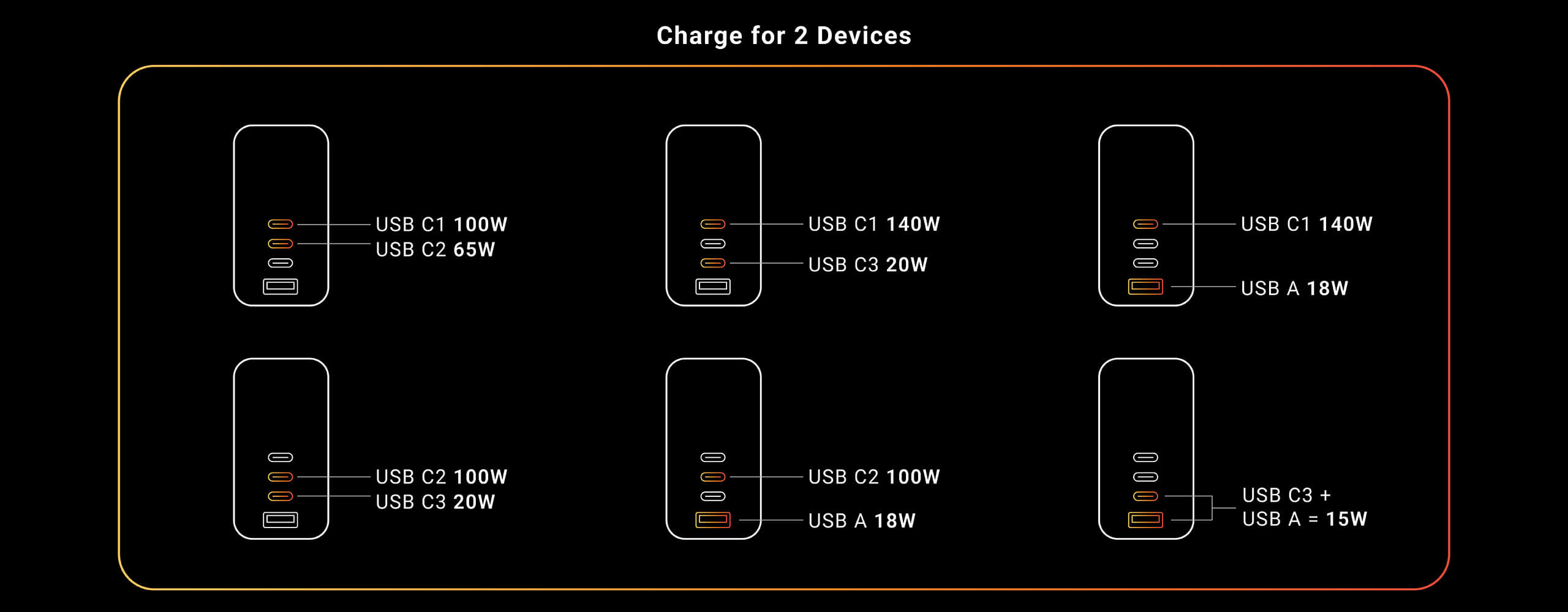

How Power Is Distributed among Ports

ATEN CoreShield™ Safety Protection

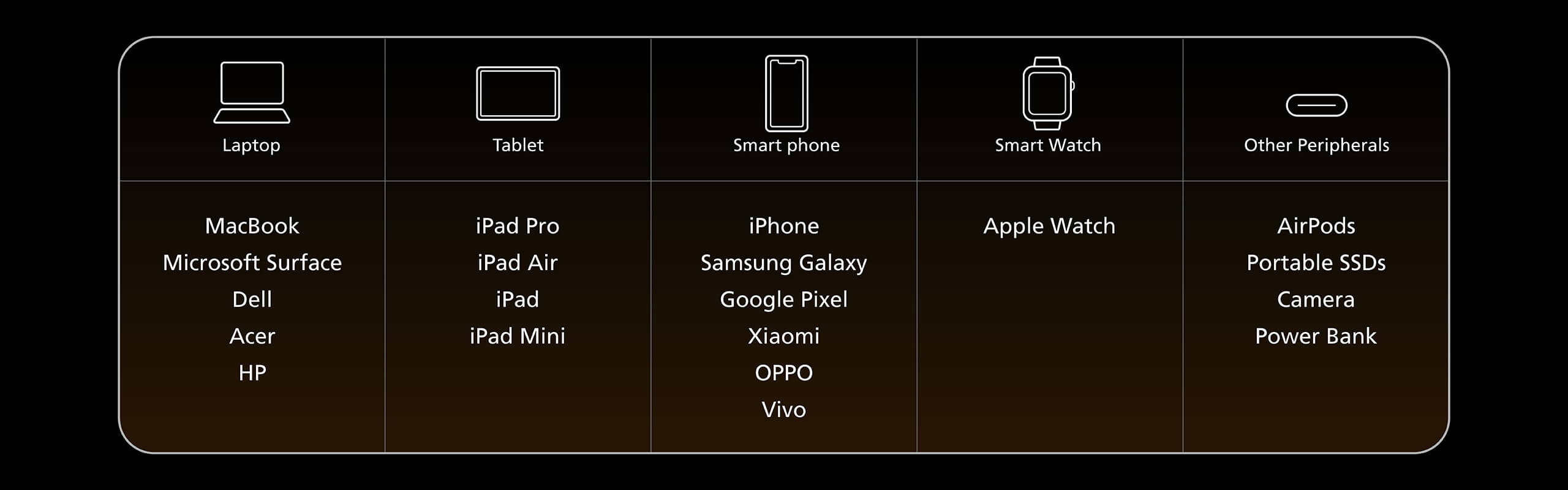

One Charger. Broad Compatibility.

Compatible with PD 3.0, AFC, and multiple fast-charging standards.

What’s in the Box

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1 x 165W 4-Port Smart Display Charger
  • 1 x 240W USB-C to USB-C Magnetic Charging Cable (1m)
  • Delivery of Up to 165W Across Four Ports

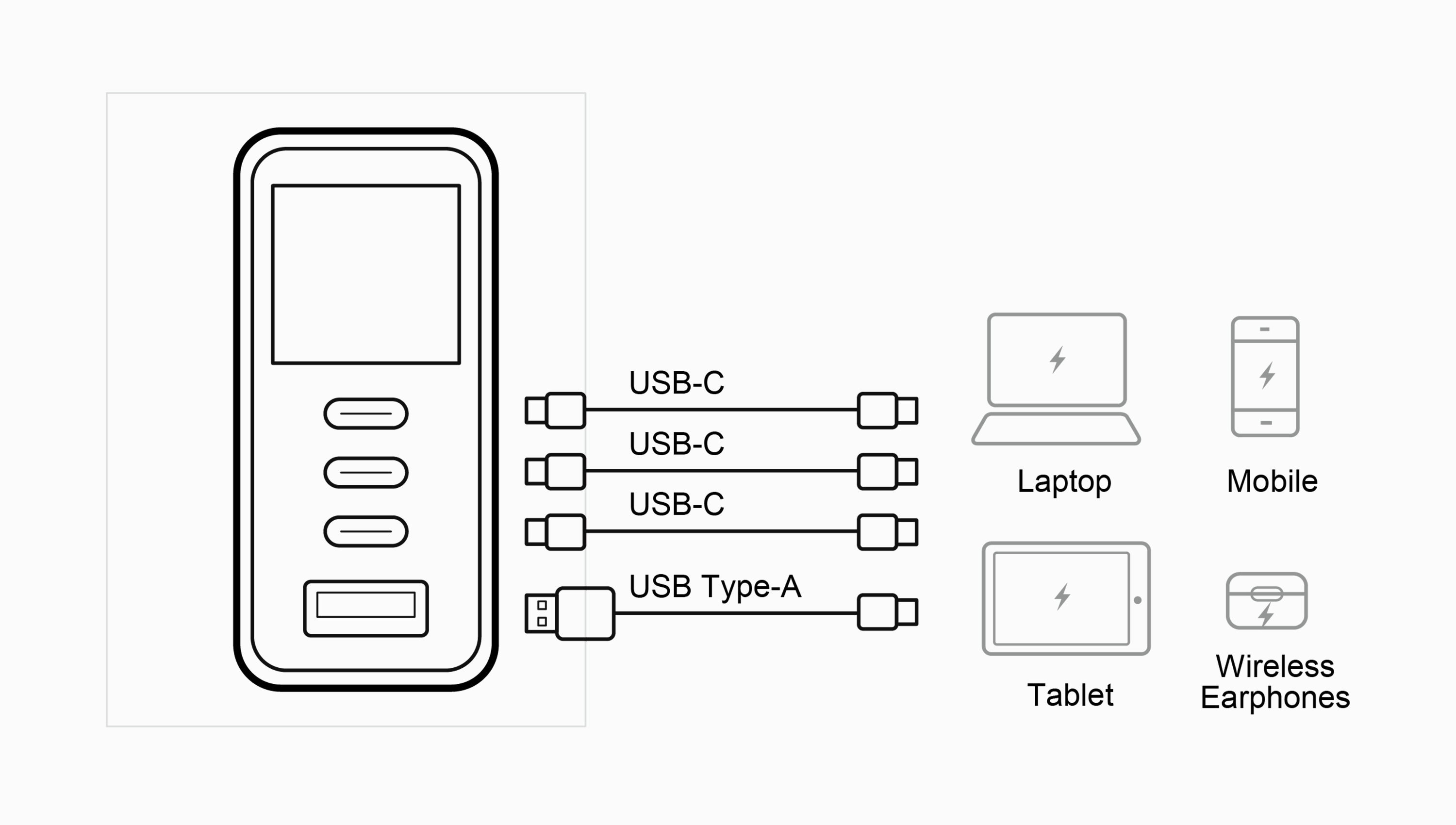

    • Contains an USB Type-A connector and three USB-C connectors to enable charging of up to four devices simultaneously at the highest possible speed with 165W of total power, and meanwhile, keeping your desktop organized and clean.



  • Smart Display That Visualizes Charging Status and Fits Your Vibe
    • With three display themes to choose from, you get to see the real-time operation status, such as wattage output readouts and thermal condition, at a glance on the screen that matches your style.



  • Dynamic Power Adjustment Method
    • Once the charger’s temperature exceeds safe threshold, it will automatically adjust the output power to simultaneously maximize charging speed and preserve device longevity.



  • Powered by GaN Technology
    • Engineered with GaN technology to significantly reduce heat loss without compromising charging speed or safety in a compact form factor.



  • CoreShield™ Protection Integrated
    • Integrated with ATEN CoreShield™ system, the charger features multi-layer defense against overvoltage, short-circuit, over temperature, overcurrent, surge, static, and EMI. Meanwhile, the charger is built with fire-resistant materials to minimize fire risks.



  • Foldable and Portable Construction
    • With the charging brick so compact and the plug foldable, the charger boasts a travel-friendly design to easily slide into your pocket. The foldable plug avoids scratching your tech gear screens and other belongings.



  • Firm Connection with Sliding Lock*
    • Firmly secures the charging by preventing accidental separation between the plug and the outlet.

Note: Only applicable to EU and KR versions.



Power Plug
Model
UP5165-US
UP5165-EU
UP5165-KR
Plug Type
US Plug - Foldable
EU Plug - Foldable
KR Plug - Foldable
Dimensions(W x D x H)
35.6 x 68.9 x 72.2mm
35.6 x 80 x 70.2mm
35.6 x 80 x 70.2mm
Weight
259g
274g
274g
Input
Input Voltage Range100Vac - 240Vac
Input Frequency Range50Hz / 60Hz
Rated Input current2.3A max.
Output
WattsUSB-C1: 140W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A)
USB-C2: 100W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A)
USB-C3: 20W max. (5V⎓3A, 9V⎓2.22A, 12V⎓1.67A)
USB-A: 18W max. (5V⎓3A, 9V⎓2A, 12V⎓1.5A)
USB-C1+C2: 100W+65W max.
USB-C1+C3: 140W+20W max.
USB-C1+A: 140W+18W max.
USB-C2+C3: 100W+20W max.
USB-C2+A: 100W+18W max.
USB-C3+A: 15W max. (5V⎓3A)
USB-C1+C2+C3: 100W+45W+20W max.
USB-C1+C2+A: 100W+45W+18W max.
USB-C1+(C3+A): 140W+15W max.
USB-C2+(C3+A): 100W+15W max.
USB-C1+C2+(C3+A): 100W+45W+15W max.
Total outputs: 165W max.
Physical Properties
Output Type3x USB-C
1x USB Type-A
Power Indicator1x TFT Smart Display
Environmental
Operating Temperature0 ~ 35℃
Humidity5 ~ 90 % RH (no condensation)
