Ultra Short Depth Dual Rail WideScreen LCD Console (USB, HDMI / DVI / VGA)


CL3800
MSRP: Quote Upon Request
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM Console with short depth dual rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
  • Supports an external console with USB / DVI / VGA / HDMI connectors
  • The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60Hz for CL3800NW and resolutions of up to 1366 x 768 @ 60Hz for CL3800NX
HDMI

The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms.

The CL3800 supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. The CL3800NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area.

Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity.

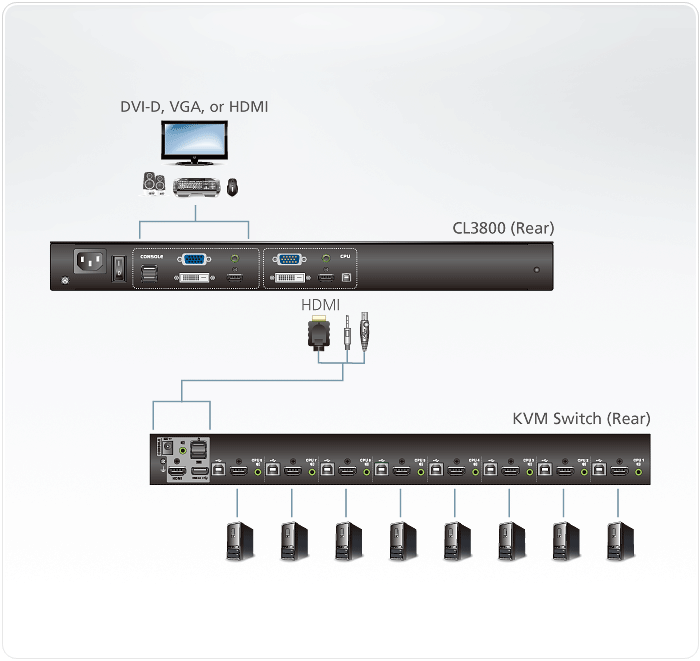

For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

CL3800NW: 18.5" LCD screen with Full HD resolution of 1920 x 1080 @ 60Hz
CL3800NX: 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz (Discontinued)


How to install Ultra Short Depth LCD consoles with ATEN 2-in-1U mounting kit?


Package Contents

  • 1x CL3800 LCD KVM Console with Standard Rack Mount Kit
  • 1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 2x L Brackets
  • 1x User Instructions
  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Dual rail design allows LCD monitor and keyboard/touchpad modules to operate independently
    • Console lock – enables the console drawer to remain securely locked away in position when not in use
    • Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3800 and a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy and flexible operation*



  • Remarkable Audio/Video Experience
    • Support three types of video inputs – HDMI, DVI, and VGA*
    • The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60Hz for CL3800NW and resolutions of up to 1366 x 768 @ 60Hz for CL3800NX
    • External console supports input video resolutions up to 1920 x 1200 @ 60Hz
    • Audio support for connecting speakers



  • Installation Flexibility
    • Standard rack mount kit included
    • Optional rack mount kits available including easy installation options**
    • No software required
    • Firmware upgradable
    • Supports hot-plugging



  • Reliability and Operational Versatility
    • Supports an external console with USB / HDMI / DVI / VGA connectors*
    • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
    • Console selection via hotkey
    • Standard 105-key keyboard

      * Only one video signal (HDMI, DVI-D, or VGA) can be displayed at time.

      More information about "Easy Rack Mounting"...

FunctionCL3800NWCL3800NX
Computer Connections
Direct11
Console SelectionHotkeyHotkey
Connectors
KVM Ports1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Male (Blue)
1 x USB Type B Female
1 x 3.5mm Audio Jack Female (Green)
1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Male (Blue)
1 x USB Type B Female
1 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade1 x 3.5mm Audio Jack Female (Black)1 x 3.5mm Audio Jack Female (Black)
Power1 x IEC 60320/C14
1 x IEC 60320/C14
External Console Ports1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral1 x USB Type A Female (Front)1 x USB Type A Female (Front)
Switches
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
1 x Slide Switch
Power1 x Rocker Switch
1 x Rocker Switch
LCD Control4 x Pushbutton4 x Pushbutton
LCD Power1 x LED Pushbutton
1 x LED Pushbutton
LEDs
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)
1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light1 x LED Illumination Light
1 x LED Illumination Light
Panel Spec
LCD Module18.5" TFT-LCD18.5" TFT-LCD
Resolution1920 x 1080 @ 60 Hz1366 x 768 @ 60 Hz
Response time20 ms5 ms
Viewing Angle178° (H), 178° (V)170° (H), 160° (V)
Pixel Pitch0.213 mm x 0.213 mm0.3 mm x 0.3 mm
Support Color16.77M colors16.77M colors
Contrast Ratio1000 : 11000 : 1
Luminance350 cd/m²250 cd/m²
Video
Input Video Resolutionup to 1920 x 1200 @ 60Hz;
1920 x 1080 @ 60 Hz, DDC2B
up to 1920 x 1200 @ 60Hz;
1366 x 768 @ 60 Hz, DDC2B
Emulation
Keyboard / MouseUSBUSB
Maximum Input Power Rating100–240V AC; 50–60Hz; 1A100–240V AC; 50–60Hz; 1A
Power ConsumptionAC110V:26.6W:140BTU
AC220V:26.8W:141BTU
AC110:18.3W:101BTU
AC220:17.8W:98BTU
Environmental
Operating Temperature0-40°C0-40°C
Storage Temperature-20-60°C-20-60°C
Humidity0 - 80% RH, Non-condensing0 - 80% RH, Non-condensing
Physical Properties
HousingMetal + PlasticMetal + Plastic
Rail TypeDual RailDual Rail
Weight9.61 kg ( 21.17 lb )9.79 kg ( 21.56 lb )
Dimensions (L x W x H)48.06 x 51.42 x 4.28 cm
(18.92 x 20.24 x 1.69 in.)
48.06 x 51.42 x 4.28 cm
(18.92 x 20.24 x 1.69 in.)
Body Dimensions(L x W x H)44.92 X 46.74 X 4.28 cm
(17.69 x 18.40 x 1.69 in.)
44.92 X 46.74 X 4.28 cm
(17.69 x 18.40 x 1.69 in.)
NoteBody Dimensions exclude I/O ports, handles, and mounting brackets.Body Dimensions exclude I/O ports, handles, and mounting brackets.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

CL3800NX is Discontinued.







DescriptionVer.Release DateFile Name
Firmware Upgradev1.5.1422023-06-27 cl3800-v1.5.142.zip
Firmware Upgradev1.1.1032022-03-22 cl3800_v1.1.103.zip
Firmware Upgradev1.1.1012019-06-13 cl3800_v1.1.101.zip
Firmware Upgradev1.0.0632018-08-27 cl3800_v1.0.063.zip
Firmware Upgradev1.0.0622018-08-27 cl3800_v1.0.062.zip
