16-Port PS/2-USB VGA KVM Switch


CS1316
  • One USB-PS/2 console controls 16 computers; Cascade up to 2 levels - control up to 256 computers
  • Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
MSRP: Quote Upon Request

Add to Quote Cart

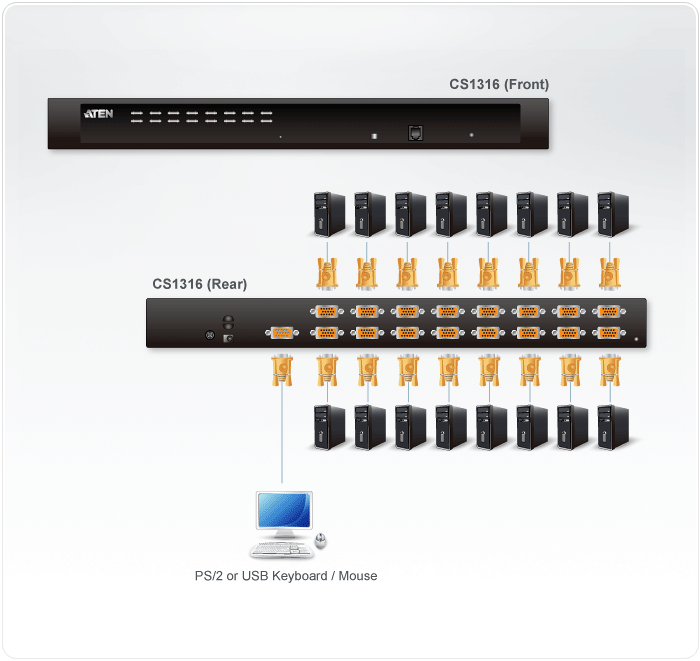

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.

Package Contents

  • 1x CS1316 KVM Switch with Rack Mount Kit
  • 1x LIN5-27X6-U21G Console cable
  • 1x Firmware Upgrade cable
  • 1x Foot Pad set (4 pads)
  • 1x 0AD8-1605-24M1 Power Adapter
  • 1x User Instructions
  • One USB-PS/2 console controls 16 computers
  • Cascade up to 2 levels - control up to 256 computers
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Auto PS/2 and USB interface detection
  • USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable - add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgradeable
  • No software installation required
  • Designed for desktop or rack mount (19" system rack, 1U)
Computer Connections
Direct16
Maximum256 (via Cascade)
Port SelectionOSD, Hotkey, Pushbutton
Connectors
Console Ports1 x SPHD-18 Male (Yellow)
Firmware Upgrade1 x RJ-11 Female (Black)
Power1 x DC Jack
KVM Ports16 x SPHD-18 Female (Yellow)
Switches
Ports16 x Pushbutton
Firmware Upgrade1 x Slide
LEDs
Online16 (Orange)
Selected16 (Green)
Power1 (Dark Green)
Emulation
Keyboard / MousePS/2, USB
Video2048 x 1536; DDC2B
Scan Interval1-255 Seconds
Power ConsumptionDC5.3V:3.83W:26BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-50˚C
Storage Temperature-20-60˚C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal
Weight2.10 kg ( 4.63 lb )
Dimensions (L x W x H)43.72 x 16.13 x 4.40 cm
(17.21 x 6.35 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

CS1308-CS1316-8-16-Port-PS-2-USB-VGA-KVM-Switch-datasheet-en.pdf (620.31 KB)
Desc.Ver.Release DateFile Name
Firmware Upgradev1.8.1722025-09-02 cs1308-cs1316-v1.8.172.zip
Firmware Upgradev1.8.1712025-04-25 cs1308-1316-v1.8.171.zip
Firmware Upgradev1.7.1692025-04-02 cs1308-1316-v1.7.169.zip
Firmware Upgradev1.7.1682025-01-21 cs1308-1316-v1.7.168.zip
Firmware Upgradev1.7.1672024-06-06 cs1304-1308-1316-v1.7.167.zip
Firmware Upgradev1.7.1662023-08-28 cs1304_1308_1316_v1.7.166.zip
Firmware Upgradev1.7.1632020-04-16 cs1304_1308_1316_v1.7.163.zip
Firmware Upgradev1.6.1592019-04-15 cs1308_1316_v1.6.159.zip
Firmware Upgradev1.6.1582018-09-03 cs1308_1316_v1.6.158.zip
Firmware Upgradev1.6.1552017-12-08 cs1308_1316_v1.6.155.zip
Firmware Upgradev1.6.1532017-03-28 cs1308_1316_v1.6.153.zip
Firmware Upgradev1.5.1492016-12-27 cs1308_1316_v1.5.149.zip
Firmware Upgradev1.5.1472016-12-02 cs1308_1316_v1.5.147.zip
Firmware Upgradev1.5.1432015-05-25 cs1308_1316_v1.5.143.zip
Firmware Upgradev1.5.1422015-04-02 cs1308_1316_v1.5.142.zip
Firmware Upgradev1.4.1382014-10-08 cs1308_1316_v1.4.138.zip
Firmware Upgradev1.4.1362014-05-06 cs1308_1316_v1.4.136.zip
Firmware Upgradev1.4.1332013-09-12 cs1316_1308_v1.4.133.zip
Firmware Upgradev1.2.1162011-07-07 cs1308_1316_v1.2.116.zip
Firmware Upgradev1.2.1112009-11-26 cs1308_1316_v1.2.111.zip
Firmware Upgradev1.0.0822009-08-25 cs1308_1316_v1.0.082.zip
Firmware Upgradev1.0.0722009-04-29 cs1308_1316_v1.0.072.zip
