VGA/Audio to HDMI Converter


VC180
  • Converts VGA signals to HDMI output
  • Supports analog stereo audio input
  • Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
  • Superior video quality – up to 1080p, WUXGA
HDMI
MSRP: Quote Upon Request

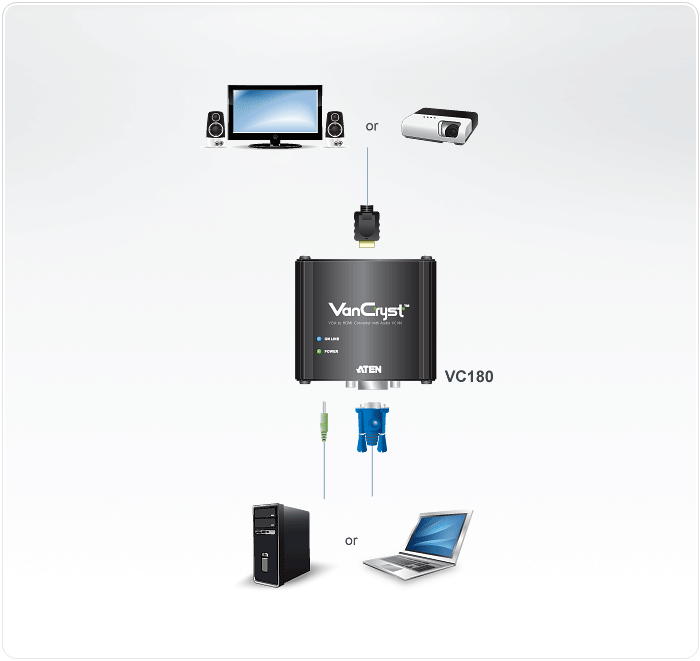

The VC180 is a VGA-to-HDMI Converter with Audio that lets you view VGA source data in an HDMI output display with stereo sound quality. It uses dual power sources – from the VGA port or a power adapter. The VC180 gets its power supply from the VGA port. However if your source device is not capable of supplying power, use the power adapter to connect the VC180 to a power source. The VC180 is compact, flexible and convenient to install – with no software required. Simply make the hardware connections and enjoy the experience.

Package Contents

  • 1x VC180 VGA to HDMI Converter with Audio
  • 1x 0AD6-1605-09EG Power Adapter
  • 1x User Instructions
  • Converts VGA signals to HDMI output
  • Supports analog stereo audio input
  • Superior video quality – up to 1080p, WUXGA
  • Screen Position Button – screen position settings can be stored for each output resolution
  • Multiplatform support – Windows and Mac
  • Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
  • Automatically detects video input signals
  • LED indicator
  • HDMI compatible
  • Compact and lightweight
  • No software required – eliminates incompatibility and installation issues
Video Input
Interfaces1 x HDB-15 Female (Blue)
Impedance75 Ω
Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ω
Video
Max. Pixel Clock165 MHz
Max. ResolutionUp to 1080p
Audio
Input1 x Mini Stereo Jack Female (Green)
Connectors
Power1 x DC Jack
Power ConsumptionDC5V:2.62W:12BTU
Environmental
Operating Temperature0 - 50 ºC
Storage Temperature-20 - 60 ºC
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.16 kg ( 0.35 lb )
Dimensions (L x W x H)7.90 x 7.81 x 2.44 cm
(3.11 x 3.07 x 0.96 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
