4-Port Component Audio/Video Switch with IR Remote Control


Discontinued Suggested Replacement Model
VS431
  • Displays the video output of four digital devices on a single high definition monitor or projector.
  • Stereo audio support.
  • Quick and easy switching via front panel pushbuttons or IR remote control.
  • Electronic switching for greater reliability and durability.
MSRP: Quote Upon Request

Add to Quote Cart

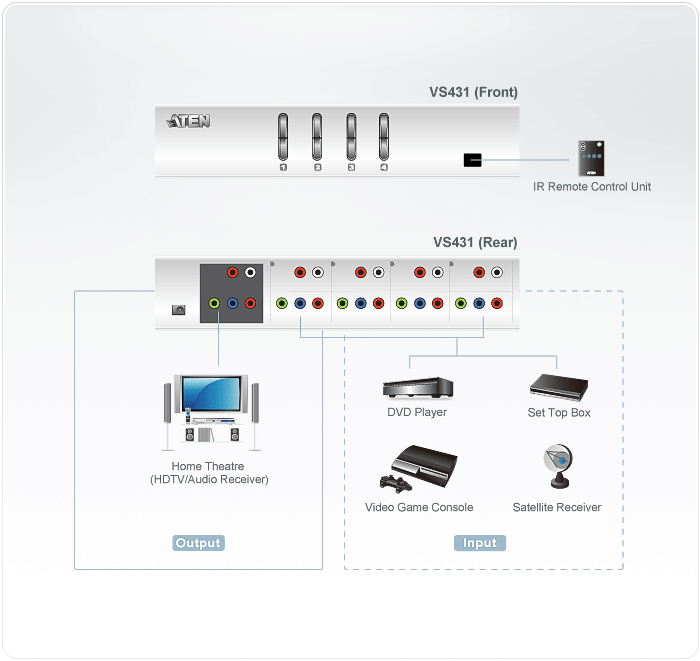

The 4 port VS431 makes plugging and unplugging devices a thing of the past. This high quality component video (YPbPr) switche with on-board stereo audio is perfect for HDTV enthusiasts who want to add more inputs to their high-definition display. Use the VS431 to effortlessly connect a DVD player and set-top box or satellite receiver to your HDTV or projector.

Or, for the home theatre buff, the VS-431 provides a complete switching solution. The IR remote is an added convenience, allowing you to enjoy multimedia switching from the comfort of your seat. The VS431 HDTV switche supports high-end digital video devices such as DVD players and recorders, set-top boxes, satellite receivers, and more. It also works well for high-definition editing systems.

Package Contents

  • 1x 4-Port HDTV A/V Switch
  • 1x IR Remote Controller
  • 1x 0AD6-1605-09EG Power Adapter
  • 1x User Instructions
  • Displays the video output of four digital devices on a single high definition monitor or projector.
  • Stereo audio support.
  • Quick and easy switching via front panel pushbuttons or IR remote control.
  • Electronic switching for greater reliability and durability.
  • Easy installation.
  • Complete home theater switching solution.
Device Connections4
Port SelectionPush Buttons,IR Remote Control
Connectors
Input4 x RCA Female (Green)
4 x RCA Female (Blue)
4 x RCA Female (Red)
4 x RCA Female (White)
Audio4 x RCA Female (Red)
1 x RCA Female (White)
1 x RCA Female (Red)
Output1 x RCA Female (Green)
Video1 x RCA Female (Blue)
1 x RCA Female (Red)
Power1 x DC Jack (Black)
Switches
Power4 x Pushbutton
LEDs
Online4 (Orange)
Selected4 (Green)
Power ConsumptionDC 5.3V, 0.8W (Max.)

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Video1600 x 1200 @ 60Hz;
480p, 720p, 1080i, 1080p
Environmental
Operating Temperature0-50˚C
Storage Temperature-20-60˚C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.85 kg
Dimensions (L x W x H)26.00 x 7.66 x 4.40 cm
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

vs231_431_video_switch_ss_en.pdf (88.66 KB)
