USB Cat 5 Extender (up to 60m)


UCE60
  • Extends the transmission distance of a USB device up to 60m (198 ft) using Ethernet Cable.
  • Provides support for any full-speed (12Mb/s) or low-speed (1.5Mb/s) USB devices.
  • No additional installation software required.
MSRP: Quote Upon Request

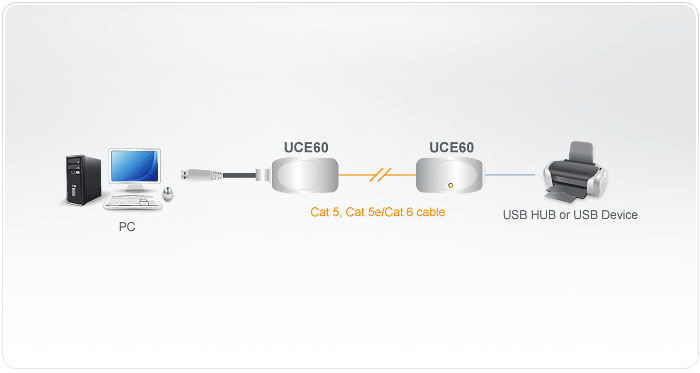

UCE60 lets you locate your USB device or hub up to 60m (198 ft) from you computer, overcoming the typical USB cable limitation. It conditions the USB signals to communicate up to 60m using low-cost Ethernet Cable.

Package Contents

  • 1x Local Unit (1 ft USB Cable attached)
  • 1x Remote Unit
  • USB 2.0 full speed compliant.
  • Provides support for any full-speed (12Mb/s) or low-speed (1.5Mb/s) USB devices.
  • Extends the transmission distance of a USB device up to 60m (198 ft) using Ethernet Cable.
  • Embedded USB Transceivers prevent signal loss.
  • Lowest cost solution for extending USB signals.
  • No additional installation software required.
  • LED indicates when additional external power supply needed.
  • Multiplatform support: Windows, Mac.
FunctionLocal UnitRemote Unit
Connectors
USB Port1 x USB Type A Male (White)1 x USB Type A Female (White)
Link1 x RJ-45 Female1 x RJ-45 Female
PowerN/A1 x DC Jack (Optional)
USB Specification2.0 Full / Low Speed2.0 Full / Low Speed
Environmental
Operating Temperature0–40˚C0–40˚C
Storage Temperature-40–85˚C-40–85˚C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingPlasticPlastic
Weight0.03 kg ( 0.09 lb )0.02 kg ( 0.05 lb )
Dimensions (L x W x H)6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.)
6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
