Room Booking System - 10.1" RBS Panel


VK430
MSRP: Quote Upon Request
  • Integrates with calendar servers, such as Microsoft 365 Calendar, Google Workspace Calendar, and Microsoft Exchange Server
  • Central management through ATEN Unizon to allow administrators to monitor managed devices in real time, generate room usage analyses, and update app in batch
  • Allows TCP protocol for third-party system integration
  • Supports Power over Ethernet (PoE) for power and communication, and LED light bars for room availability at a glance




ATEN VK430 RBS Panel is a 10.1" touch-screen panel used to manage conference rooms, and is centrally configured by ATEN RBS Configurator – centralized management software of RBS Panels while integrating with calendar servers, such as Microsoft 365 Calendar, Google Workspace Calendar, and Microsoft Exchange Server – to provide convenient scheduling and availability allocation for all conference rooms in the system.That is, through a few simple taps, authorized personnel can make conference room reservations, extend or release room usage, and check the booking schedules of any conference room directly on the VK430 while enjoying its user-friendly interface. In addition, through ATEN RBS Configurator, administrators can have a centralized view of the availabilities and locations of all conference rooms in real time as well as manage each VK430 connected from afar, elevating meeting room utilization efficiency. In conjunction with the VK401, the system enables exclusive card-access functionality. This allows authorized users to efficiently book and check in meeting rooms, thereby contributing to the streamlined automation of conference room operations.

Highlighted features of the VK430 include its Power over Ethernet (PoE) support and two illuminating LED bars. With PoE, VK430 can transmit data while receiving power over a single Ethernet cable, which effectively reduces installation costs and power consumption. The two LED light bars, one on each side, illuminates in user-defined colors to indicate the availability status of the conference room, available, reserved, or occupied, and allow users to know the room’s availability at a glance.

Without compromise on aesthetics, VK430 features a sleek and elegant housing that supports 75*75 mm VESA-compliant mounting options to suit various installation scenarios. VK430 is preinstalled with its standard wall mount kit while providing 3M VHB™ Tape for it to be easily installed onto a hard or glass wall.

The VK430, along with the ATEN RBS Configurator, delivers an enterprise-grade room management solution perfect for all business environments, making meeting room management a breeze while elevating the overall room-booking experience.

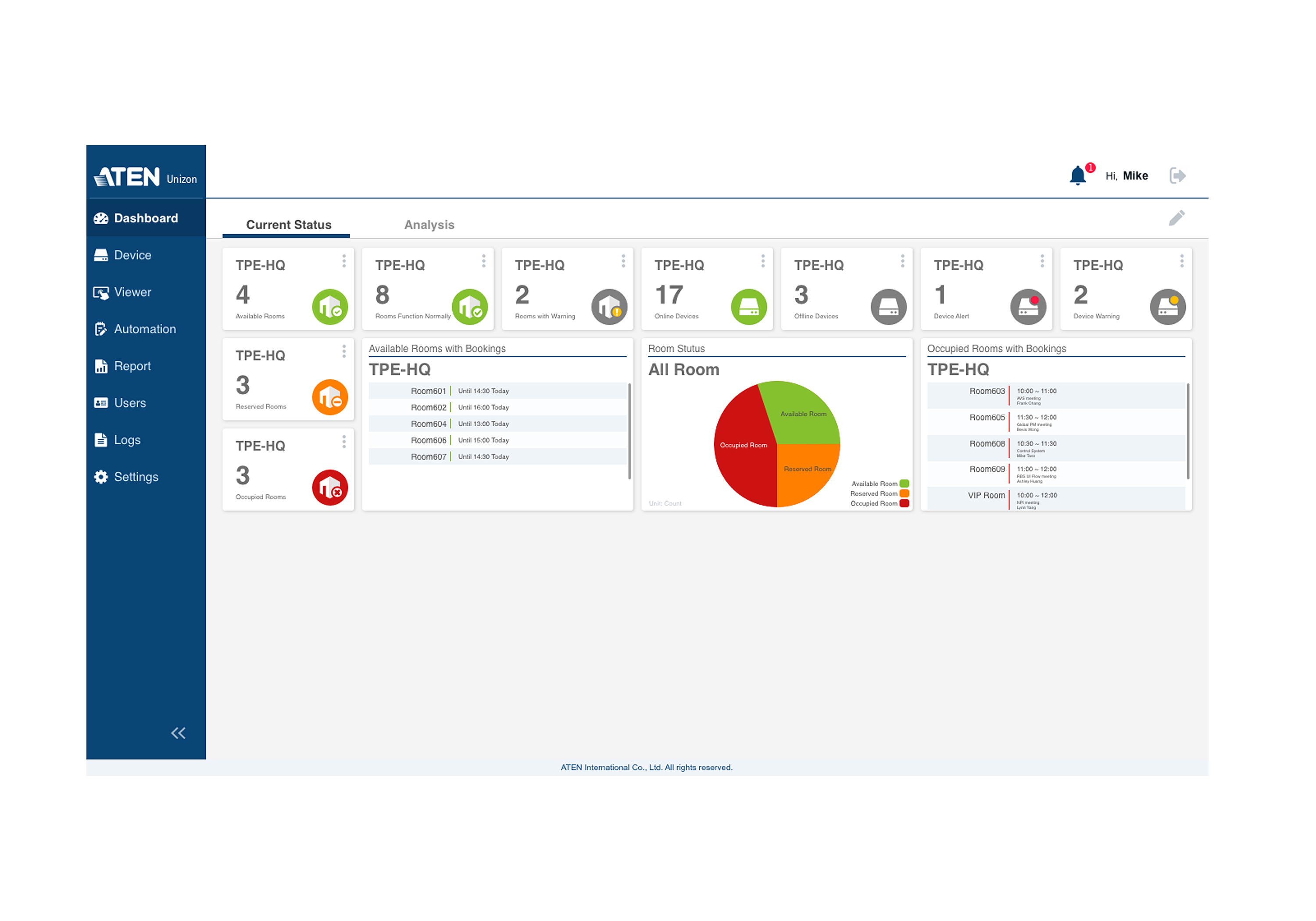

ATEN Room Booking System works perfectly with ATEN Unizon by providing room scenarios for automating the predefined actions of in-room devices to increase efficiency. Real-time usages of rooms are also recorded and presented on Dashboard in ATEN Unizon, which allows prompt maintenance and better space arrangement.

Accessories:
*The power adapter and power cord for this product are sold separately. For more information about this accessory, see Accessories.

Package Contents

  • 1 x VK430 10.1" RBS Panel with 2 x LED light bars
  • 1 x wall mount kit
  • 2 x 3M glass mount tape
  • 1 x 90° RJ-45 cable adapter
  • 1 x user instructions
  • 10.1” capacitive touch-screen panel
  • Supports integration with calendar servers, such as Microsoft 365 Calendar, Google Workspace Calendar, and Microsoft Exchange Server

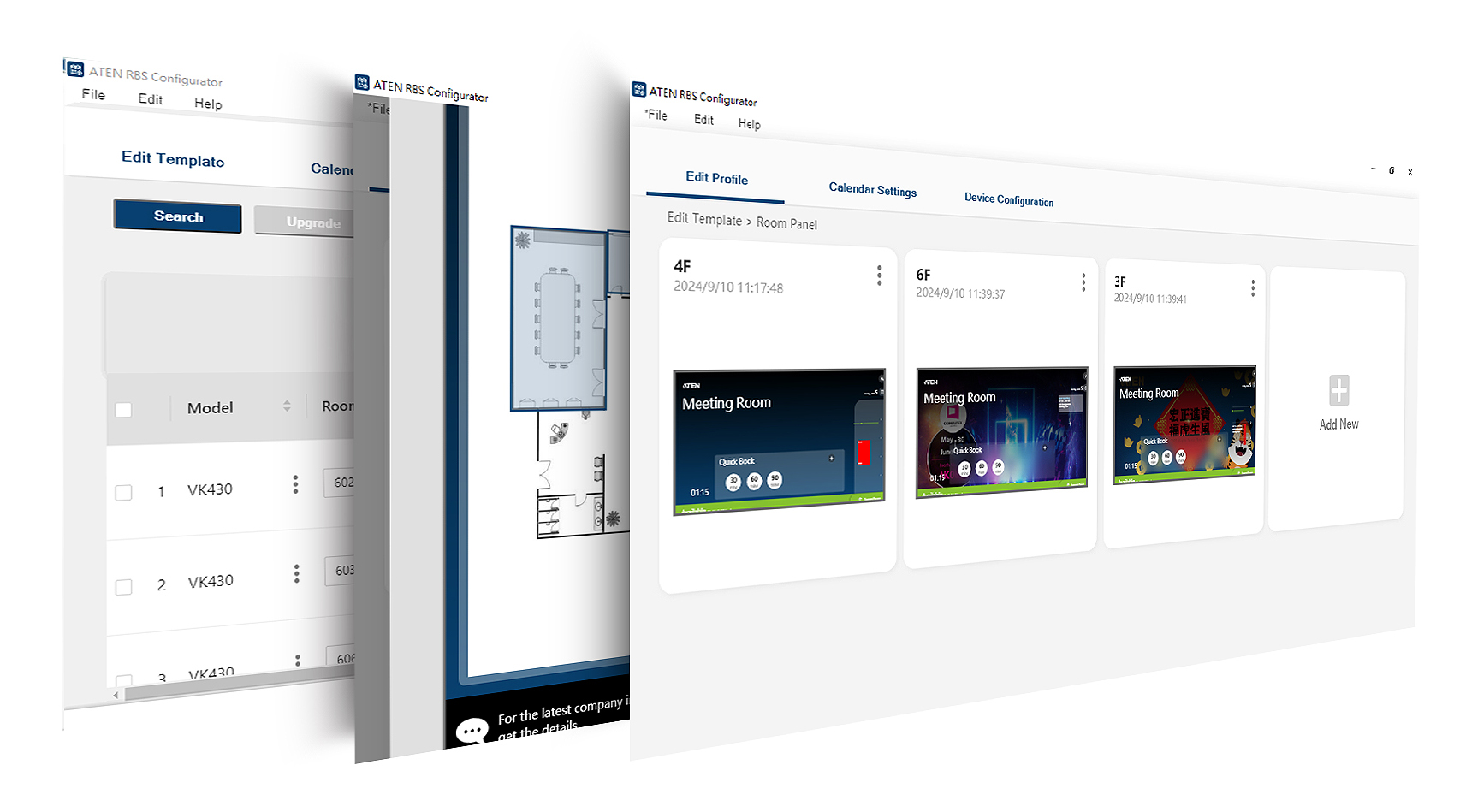

  • Supports RBS Configurator for batch upgrade, customizable booking options, and calendar settings

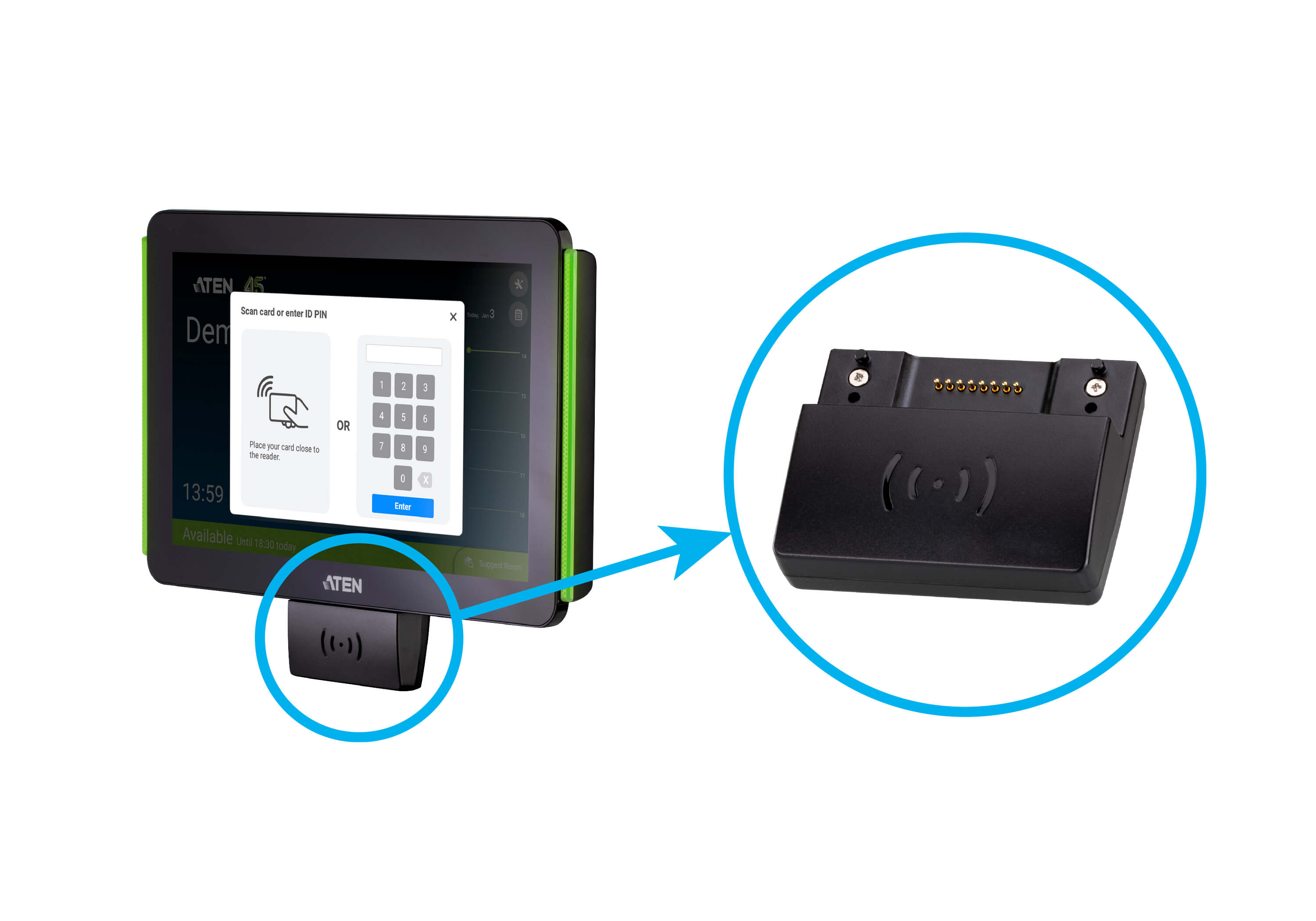

  • In conjunction with the VK401, the system enables exclusive card-access functionality; only authorized users can scan cards to book and check in meeting rooms and facilitate conference room automation
  • Supports central management through ATEN Unizon to allow administrators to monitor managed devices in real time, generate room usage analyses, and update app in batch
  • Support TCP protocol for third-party system integration
  • Supports Power over Ethernet (PoE), which allows it to receive power and communication over a single Ethernet cable
  • LED light bars illuminating user-defined colors to indicate the room’s availability at a glance
  • Preinstalled with a wall mount kit and provided with 3M VHB™ Tape for easy mounting onto a hard or glass wall
  • 75*75 mm VESA-compliant for flexible mounting across various installation scenarios
ProcessorQuad-core
Memory
SDRAM2GB
Flash16GB
Panel Spec
Display TypeTFT-LCD
Size10.1"
Touch ScreenCapacitive
Resolution1280 x 800
Aspect Ratio16 : 10
Color Depth8 bit
Contrast Ratio800 : 1
BacklightLED
Viewing Angle± 85° (H), ± 85° (V)
Luminance500 cd/m²
Interfaces
Ethernet1 x RJ-45 Female, 10 / 100 / 1000 BaseT
USB1 x USB Type A
Power Inputs
Power over Ethernet (PoE)802.3 at PoE+
Power ConsumptionDC12V:17.8W:60.70BTU/h
POE:20W:68.24BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 – 40°C
Storage Temperature–10 – 55°C
Humidity10 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.68 kg ( 1.5 lb )
Dimensions (L x W x H)26.30 x 17.78 x 2.45 cm
(10.35 x 7 x 0.96 in.)
NoteNo license is required for running ATEN Room Booking System. However, additional costs may be charged for the resource accounts by the calendar service provider.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





DescriptionVer.Release DateFile Name
Firmware Upgradev1.11.17q2024-04-19 vk430-v1.11.17q-1.6.153.zip
Firmware Upgradev1.11.17j2023-12-26 vk430-v1.11.17j-1.5.143.zip
ОSDescriptionVer.Release DateFile Name
Apps
Software Upgradev1.6.1532024-03-22 RBS-APP-v1.6.153.zip
IP Installer & Utility
IP Installerv1.4.1322014-09-23 IPInstaller_v1.4.132.zip
Software Upgrade
Software Upgradev1.6.1532024-03-22 RBS-Configurator-Setup-v1.6.153.zip
