CE820
KE8900SR

USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)


CE920
USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)-1
USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)-2
USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)-3
USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)-4
USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)-5
USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)-6
USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)-7
MSRP: Quote Upon Request

Add to Quote Cart
  • Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
  • EDID Buffer for smooth power-up and the highest quality display
  • Long distance with superior video quality
    - HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
    - HDBaseT™ Long-Reach mode up to 1080P @ 150m
  • Supports individual 2-channel stereo audio and USB 2.0 full speed ports
4K
HDBaseT
ROHS
Weee
hdbaset
Product_sBanner_HDBaseT

Buy from your favorite store now:

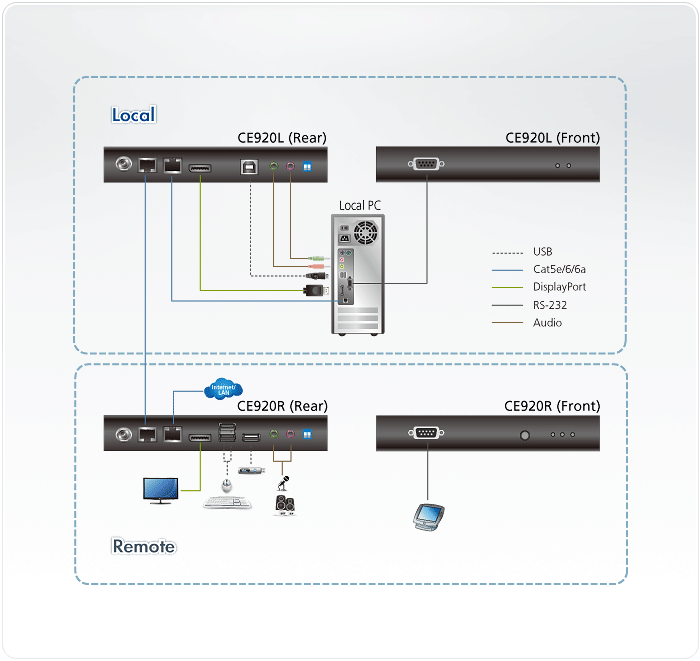

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Package Contents

  • 1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
  • 1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
  • 1x Microphone Cable
  • 1x Speaker Cable
  • 1x USB Type-A to Type-B Cable
  • 1x DisplayPort Cable
  • 2x Mounting Kits
  • 2x Power Adapters
  • 1x User Instructions
  • Supports HDBaseT™ 2.0 technology
    - Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
    - Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
    - Status detection and LED indication for HDBaseT™ signal transmission on remote unit
  • EDID Buffer for smooth power-up and the highest quality display
  • Long distance with superior video quality
    - HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
    - HDBaseT™ Long-Reach mode up to 1080P @ 150m
  • Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
  • USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
  • HDCP Compatible
  • Supports individual 2-channel stereo audio for high-quality audio applications
  • Supports PC wakeup function via single pushbutton
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)


FunctionCE920LCE920R
Connectors
Console PortsN/A1 x DisplayPort Female (Black)
3 x USB Type A Female
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x RJ-45 Female (Black)
KVM Ports1 x DisplayPort Female (Black)
1 x USB Type B Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x RJ-45 Female (Black)		N/A
RS-2321 x DB-9 Female (Black)1 x DB-9 Male (Black)
Power1 x DC Jack with locking1 x DC Jack with locking
Unit To Unit1 x RJ-45 Female (Black)1 x RJ-45 Female (Black)
LEDs
Power1 (Green)1 (Green)
Link1 (Orange)1 (Orange)
Video OutputN/A1 (Orange)
Switches
Long Reach Mode Switch1 x Slide Switch1 x Slide Switch
Firmware Upgrade1 x Slide Switch1 x Slide Switch
Pushbuttons
Wakeup buttonN/A1 x Push button
VideoUp to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Power ConsumptionDC5V:3.99W:19BTUDC5V:6.74W:47BTU
Environmental
Operating Temperature0–40°C0–40°C
Storage Temperature-20–60°C-20–60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight0.63 kg ( 1.39 lb )0.64 kg ( 1.41 lb )
Dimensions (L x W x H)18.20 x 12.19 x 2.87 cm
(7.17 x 4.8 x 1.13 in.)		18.20 x 12.19 x 2.87 cm
(7.17 x 4.8 x 1.13 in.)
NoteDisplayPort v1.1 supports up to 4Kx2K @ 30Hz.DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

ce920_extender_ds_en.pdf (1.21 MB)
