8" Touch Panel


VK320
MSRP: Quote Upon Request

Add to Quote Cart
  • 8“ touch panel with narrow bezel modern design
  • Natively installed with ATEN Control System app and designed for the integrated use with ATEN Control System
  • Supports Power over Ethernet (PoE), which allows it to receive power and data over a single Ethernet cable
  • In-wall design for perfectly fitting in building decoration or integrated with VK102 for desktop usage
RC-Icon_62-App-Switching
RC-Icon_63-RBS-Integration
RC-Icon_64-Video-Streaming-Preview
RC-Icon_65-Multi-Room-Centralized-Control
RC-Icon_67-US-EU-Mounting
/au/en/supportcenter/service/warranty-policy-new/a-product-warranty/
RBS_Room-Booking-System
ATEN Unizon

The VK320 8” Touch Panel centralizes system control through an intuitive, responsive interface, allowing quick switching between the ATEN Control System app and third-party applications. Integrated with ATEN’s Room Booking System, it also enables room status updates directly from the panel, streamlining meeting setup. Its compact 8" design and PoE capability make it ideal for space-efficient installations such as digital podiums and lecterns, where minimal footprint and simplified cabling are essential.

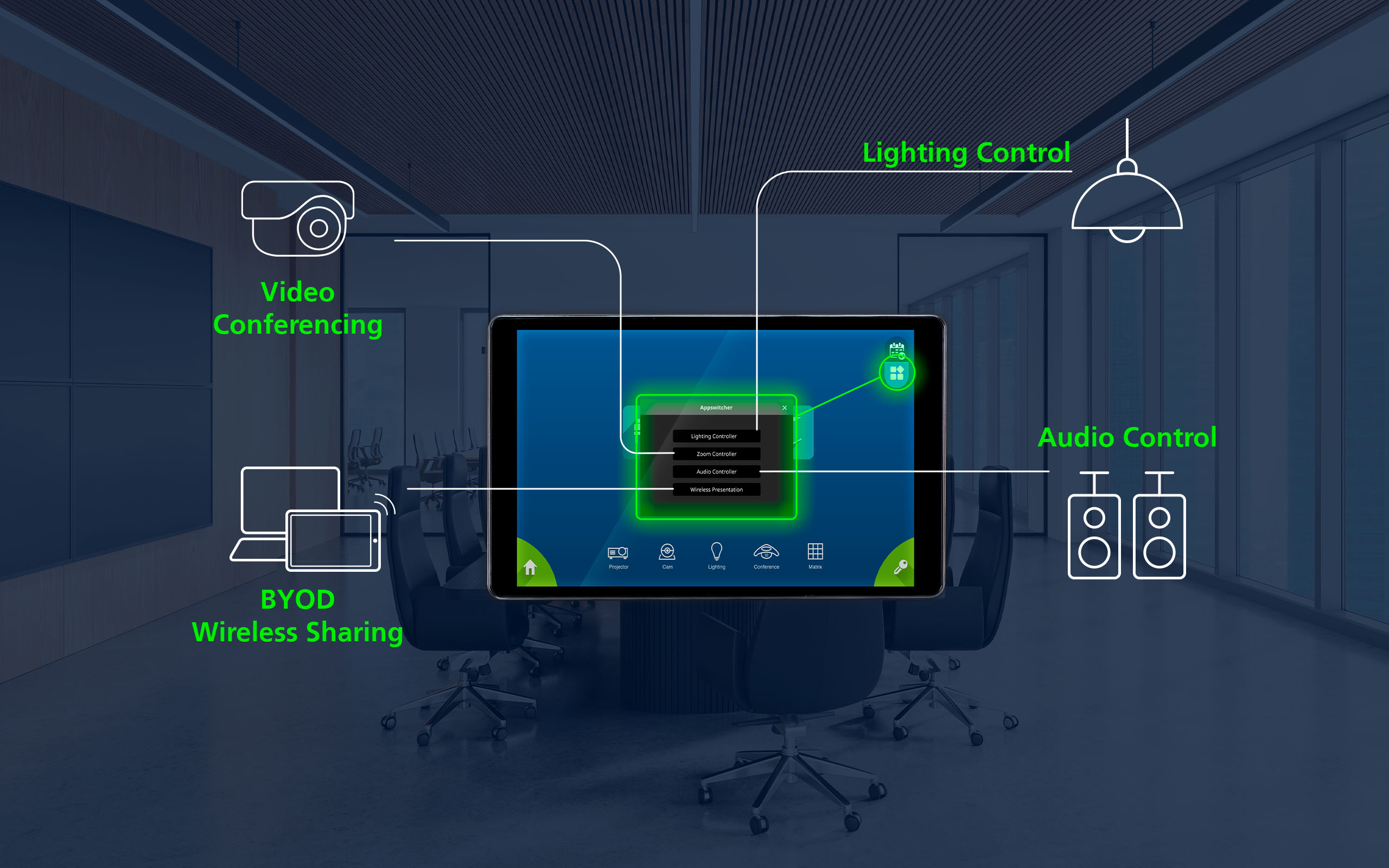

Third-Party Application Control with AppSwitcher

In addition to interfacing with the ATEN Control System, the VK320 also serves as a dedicated, cost-effective touch panel for third-party apps such as video conferencing, device control, or custom room apps, enabling direct control without a separate controller.

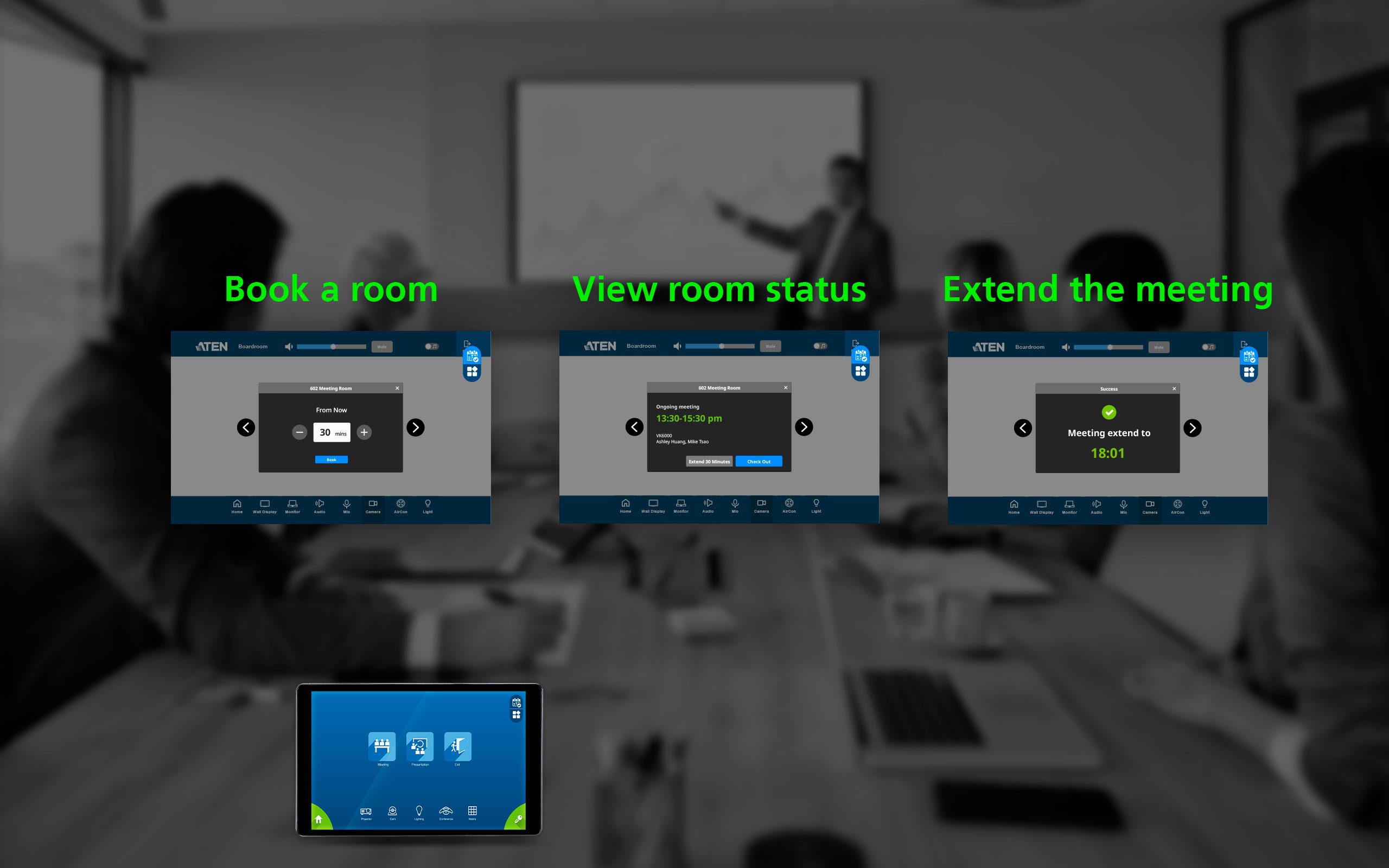

Streamlining Access with In-Room Booking Control

With integration into ATEN Unizon and the Room Booking System, booking a room, checking in or out, viewing room status, and extending a meeting are all just a few taps away on the panel – anytime during a meeting.

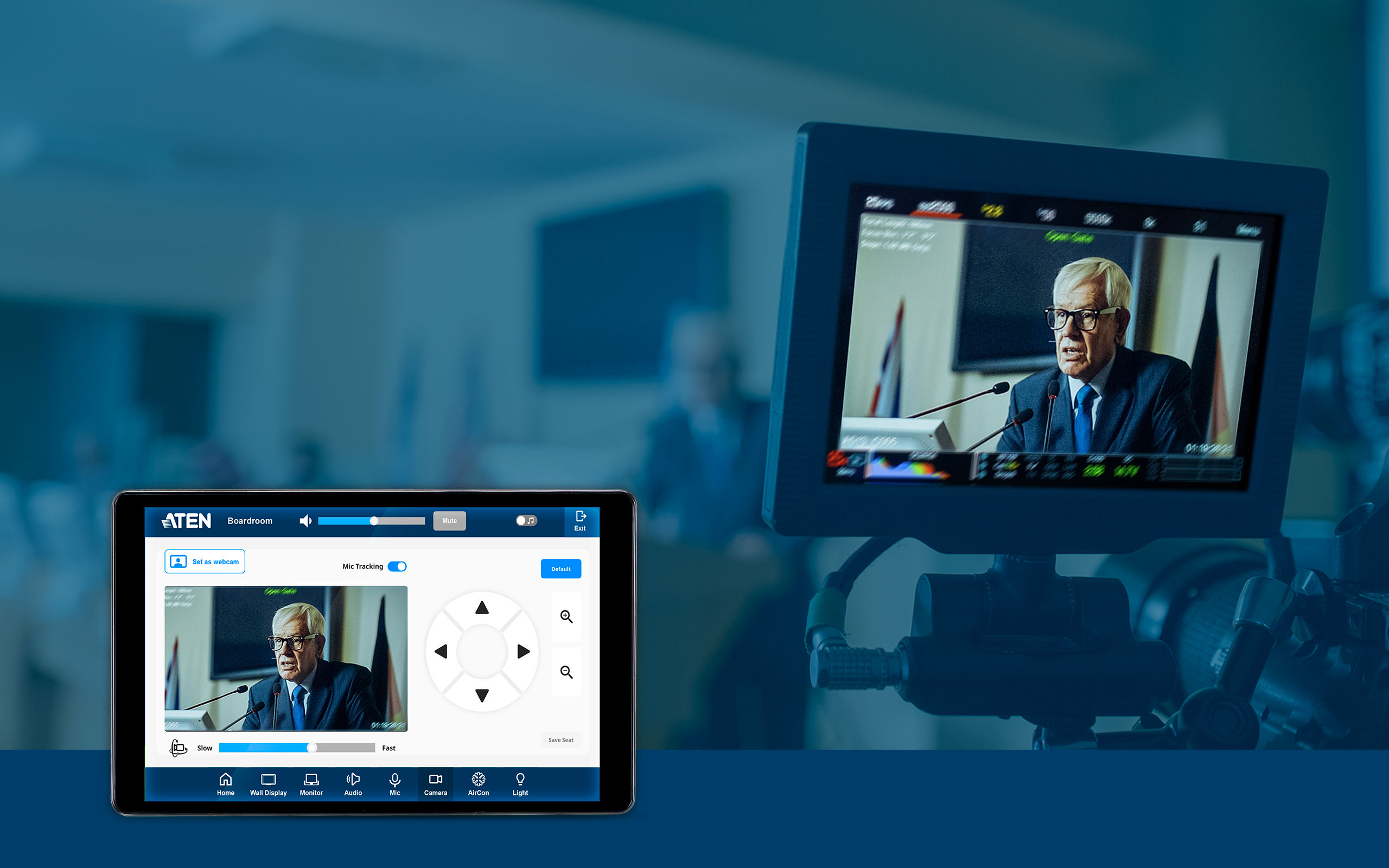

Real-Time Video Streaming Preview

The VK320 displays real-time feeds from IP cameras and ATEN VE89 series video over IP transmitters via native RTSP/ONVIF protocols, enabling direct preview and seamless switching of video sources from the panel.



Centralized Room Management

With multi-viewer support, multiple rooms can be monitored and controlled from a single VK320 panel, with the entire environment easily managed through seamless switching between different room views.

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1x VK320 8“ Touch Panel
  • 1x 86-type junction box with screws
  • 1x 90° RJ-45 cable adapter
  • 1x user instructions

The ATEN VK320 is an 8” Touch Panel featuring capacitive multi-touch IPS-LCD screen with a narrow bezel. Natively installed with the ATEN Control System app, the touch panel is compatible with ATEN Control Boxes and Control Pads.

The VK320 supports Power over Ethernet (PoE), which allows power and data to be carried over a single Ethernet cable to the touch panel, making it perfect for applications that require solid and wired connections.

The Touch Panel VK320 features an in-wall design and a sophisticated touch panel that comes complete with an 86-type junction box, ensuring a versatile and efficient solution. The VK320 is also perfectly suitable for the smaller and compact scenarios such as digital podiums or lecterns. It is worth noting that the VK320’s mounting plate is compatible with standard decorator-style, 1-gang junction boxes of the US, EU, and MK type; it is also compatible with VK101 and VK102 Tabletop Kits to support desk mounting and wall mounting to meet versatile installation needs. The uniform equilateral design is suitable for flexible placement in either horizontal or vertical orientation.



  • 8” touch panel with narrow bezel modern design
  • Natively installed with ATEN Control System app and designed for the integrated use with ATEN Control System
  • Supports AppSwitcher to allow multiple apps to be switched and operated
  • Integrated with ATEN Unizon and ATEN Room Booking system to display room usage and operating status
  • Allows administrators for central control of multiple rooms via profiles
  • Restricts user access to profiles via password authentication
  • Synchronization of system control among multiple ATEN Touch Panels, mobile devices, and tablet computers
  • Demo mode enables demonstration without connecting a controller while familiarizing users with the solution’s most important functions
  • Screen Saver helps energy saving and prolongs the device lifetime
  • Allows for Display Real-time Streaming Protocol (RTSP), ONVIF, and ATEN VE89 series video preview*
  • Supports Power over Ethernet (PoE), which allows it to receive power and data over a single Ethernet cable
  • Side power LED – features the indicator in the dark place
  • In-wall design – perfectly fits in building decoration
  • Compatible with VK101 and VK102 Tabletop Kits for desk mounting and wall mounting

    *Note: The function is applicable to VK2200 / VK1200.
ProcessorQuad-core
Memory
SDRAM2GB
Flash32GB
Panel Spec
Display TypeIPS-LCD
Size8"
Touch ScreenCapacitive
Resolution1280 x 800
Aspect Ratio16 : 10
Color Depth8 bit
Contrast Ratio800 : 1
BacklightLCD
Viewing Angle± 85° (H), ± 85° (V)
Luminance300 cd/m²
Interfaces
Ethernet1 x RJ-45 Female, 10 / 100 BaseT
USB1 x USB Type C
Power Inputs
Power over Ethernet (PoE)802.3 at PoE+
Power ConsumptionDC12V:12W:40.95BTU/h
POE:14.1W:48.1BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 – 40°C
Storage Temperature–10 – 55°C
Humidity10 - 75% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.33 kg ( 0.73 lb )
Dimensions (L x W x H)20.01 x 12.46 x 3.77 cm
(7.88 x 4.91 x 1.48 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

vk320-8-Touch-Panel-datasheet-en.pdf (1.1 MB)
ОSDescriptionVer.Release DateFile Name
Apps
Software Upgradev4.0.3912025-07-17 vk320-v4.0.391.zip
Software Upgradev3.9.3812025-06-06 vk320-v3.9.381.zip
Software Upgradev3.8.3762025-04-07 vk320-v3.8.376.zip
Software Upgradev3.7.3662024-08-16 vk320-v3.7.366.zip
