HDMI & VGA HDBaseT Transmitter with US Wall Plate (4K@100m)


VE2812UST
MSRP: Quote Upon Request
  • Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • Superior video quality:
     • HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
     • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
  • Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
  • Supports Auto Switch – automatically switches to a newly plugged-in source
4K
HDBaseT
HDMI
ROHS
Weee

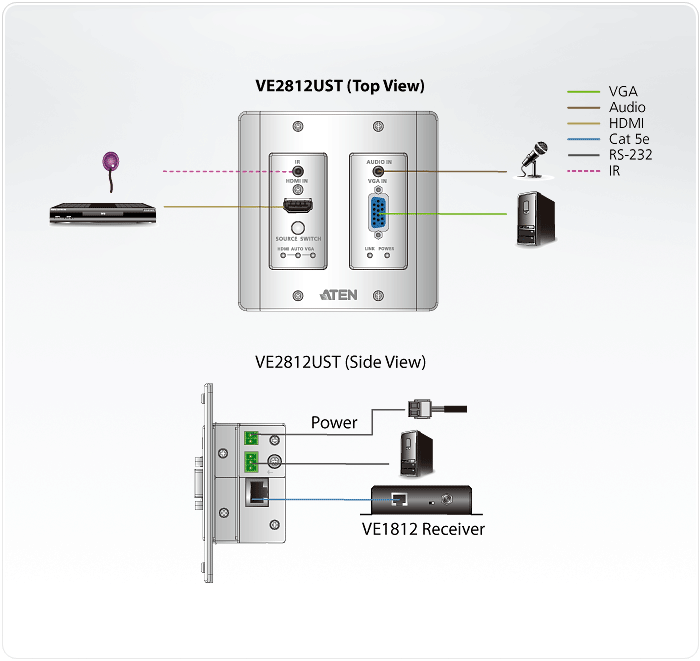

ATEN VE2812UST is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. With US Wall Plate design, the VE2812UST can be conveniently mounted in a two-gang junction box. The VE2812UST guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.

For utility flexibility, the VE2812UST can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation. Therefore, The VE2812UST is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.

Package Contents

  • 1x VE2812UST HDMI & VGA HDBaseT Transmitter with US Wall Plate
  • 1x 3 Pin RS-232 Terminal Block
  • 1x 2 Pin Power Terminal Block
  • 1x Faceplate
  • 1x Power Adapter
  • 1x User Instructions
  • Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • Designed to mount in two- gang junction box
  • HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant
  • Superior video quality:
     • HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
     •VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
  • Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
  • Supports Auto Switch – automatically switches to a newly plugged-in source
  • Functions as a switch or a converter
     • A Switch: Connects two sources (HDMI or VGA)
     • A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
  • Supports RS-232 channel transmission or command mode for source switch control
  • Compatible Receivers – VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R or future ATEN HDBaseT Receivers
  • Plug-and-play
  • Built- in 8KV / 15 KV ESD protection
  • LED indication of sources and device status


Video Input
Interfaces1 x HDMI Type A Female (Black)
1 x HDB-15 (VGA) Female (Blue)
ImpedanceHDMI: 100 Ώ
HDB-15 (VGA): 75 Ώ
Max. Distance1.8 m
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceHDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Connectors
Unit To Unit1 x RJ-45 Female
Power1 x Terminal Block, 2 pole (Green)
Control
RS-232Connector: 1 x Terminal Block, 3 pole (Green)
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR1 x Mini Stereo Jack Female (Black)
Switches
Video Input Port Selection1 x Push Button - HDMI, VGA and AUTO
Long Reach Mode Switch1 x Slide Switch - ON/OFF
Firmware Upgrade1 x Slide Switch - ON/OFF
Power ConsumptionDC5V:3.04W:14.25BTU
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.29 kg ( 0.64 lb )
Dimensions (L x W x H)10.42 x 8.79 x 5.19 cm
(4.1 x 3.46 x 2.04 in.)
Faceplate Dimension (L x W x H)11.43 x 11.43 x 0.60 cm
(4.5 x 4.5 x 0.24 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
