2-Port USB VGA/Audio Cable KVM Switch (1.8m)

Discontinued Suggested Replacement Model
CS62U

Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
Computer Selection via hotkey and USB mouse
Multiplatform support – Windows, Linux, Mac, and Sun
Built-in 1.8 m cables and bus-powered design

MSRP: Quote Upon Request

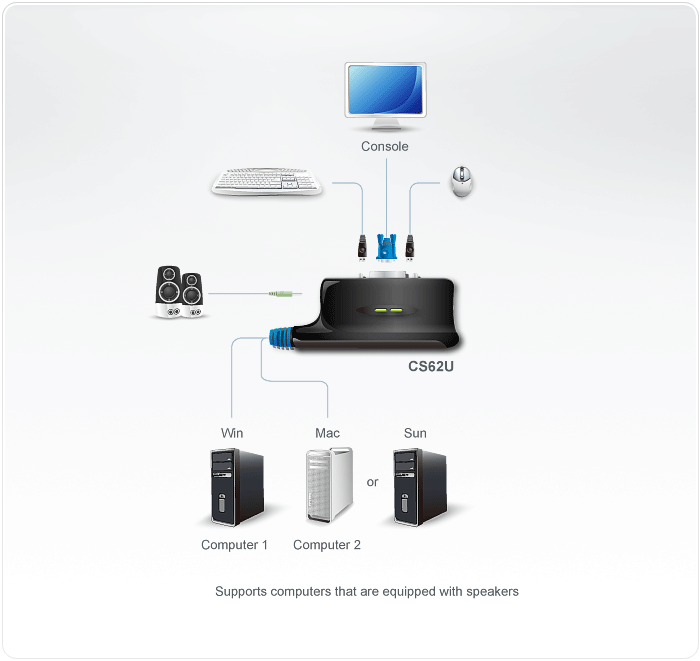

The compact CS62U allows quick switching between 2 VGA-interfaced PCs via one KVM console and helps to expand your desktop workspace while keeping it tidy and organized for improved productivity. With the shared speaker set, multitasking between computers can be more enjoyable.

Smooth Cross-Platform Integration

The CS62U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.

Plug in. Power on.

The CS62U supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Applications

Product Comparison

Package Contents

1x 2-Port USB KVM Switch with Attached Cables
1x User Guide

ATEN provides total USB KVM solution. CS62U links two USB computers to one USB console for a complete USB system compatible with all operating platforms, including Windows, Mac, Linux and Sun.

One USB console controls two USB computers
Compact design, built-in 1.8 m cables
Hotkey selection for OS and keyboard languages
Computer Selection via hotkey and USB mouse
Multiplatform support – Windows, Linux, Mac, and Sun
Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Console mouse port emulation / bypass feature supports most mouse drivers
USB mouse port can be used for USB hub and USB peripheral sharing*
Supports gaming keyboards
Supports multifunction and wireless keyboards and mice
All-in-one design
Supports speaker functions
Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
Auto Scan function to monitor computer operation
Bus-Powered
Sun/Mac keyboard support and emulation

* To use the USB mouse port as a USB hub, users must first disable mouse emulation mode.

Computer Connections	2
Port Selection	Hotkey, Mouse
Connectors
Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
KVM Ports	2 x HDB-15 Male (Blue) 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green)
LEDs
Selected	2 (Green)
Cable Length
Computer	2 x 1.8 m
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536 @ 60Hz; DDC2B
Scan Interval	5 seconds
Power Consumption	DC5V:0.328W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.37 kg ( 0.81 lb )
Dimensions (L x W x H)	8.75 x 6.08 x 2.80 cm (3.44 x 2.39 x 1.1 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

We are here to help! Please visit ATEN eService for technical assistance.
