4-Port PS/2 VGA KVM Switch


Discontinued Suggested Replacement Model
CS9134
  • One PS/2 console controls 4 computers; Cascadable up to 3 levels - provides up to 64 computers.
  • Superior video quality: up to 1920 x 1440; DDC2B.
  • Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).
  • Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
MSRP: Quote Upon Request

CS9134 is a KVM Switch with built-in PS/2. It can control 4 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hotkey configuration on the console keyboard. It is the simplest and most convenient most convenient solution for multi-computer management. Moreover, it supports 3-tier connection via cascade. With 21 sets of CS9134, users can control 64 computers.

Package Contents

  • 1x 4-Port PS/2 KVM Switch
  • 1x 0AD6-1909-03EG Power Adapter
  • 1x Rack Mount Kit
  • 1x User Instructions
  • One PS/2 console controls 4 computers.
  • Cascadable up to 3 levels - provides up to 64 computers.
  • Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).
  • Keyboard and mouse emulation for error free booting.
  • Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.
  • OSD automatically adjusts to resolution changes.
  • Auto Scan function to monitor computer operation.
  • Superior video quality: up to 1920 x 1440; DDC2B.
  • Available in silver and black.
  • Special design for easy stacking.
  • Rack mountable in 19" (1U) system rack.
  • Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
  • For more information about KVMs which can connect to CS9134, see Compatible KVM Table.

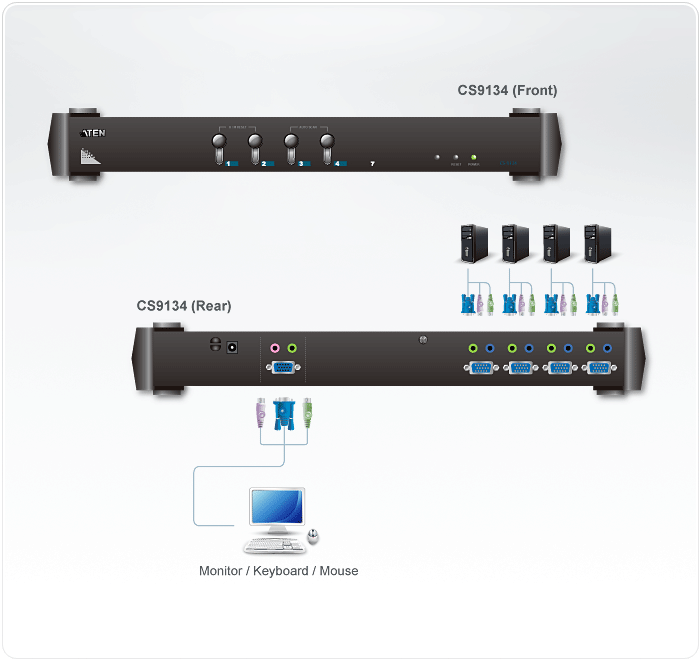

Computer Connections
Direct4
Maximum64 (via Cascade)
Port SelectionOSD, Hotkey, Pushbutton
Connectors
Console Ports1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
KVM Ports4 x HDB-15 Male (Blue)
4 x 6-pin Mini-DIN Female (Purple)
4 x 6-pin Mini-DIN Female (Green)
Power1 x DC Jack (Black)
Switches
Power4 x Pushbutton
LEDs
Online4 (Green)
Selected4 (Orange)
Power1 (Blue)
Emulation
Keyboard / MousePS/2
Video1920 x 1440; DDC2B
Scan Interval3 ,5, 10, 15, 20, 30, 40, 60 seconds
Power ConsumptionDC9V: 2.07w:10BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-50˚C
Storage Temperature-20-60˚C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal
Weight2.55 kg ( 5.62 lb )
Dimensions (L x W x H)43.72 x 16.29 x 4.40 cm
(17.21 x 6.41 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
