100W 4-Port Smart Display Charger

New Coming soon
UP5100
  • Delivery of up to 100W across four ports
  • Smart display that visualizes charging status and fits your vibe
  • CoreShield™ – multiple protection mechanisms guarantee safe and stable performance
  • Powered by GaN technology
  • Foldable plug and portable construction

Add to Quote Cart
MSRP:Quote Upon Request

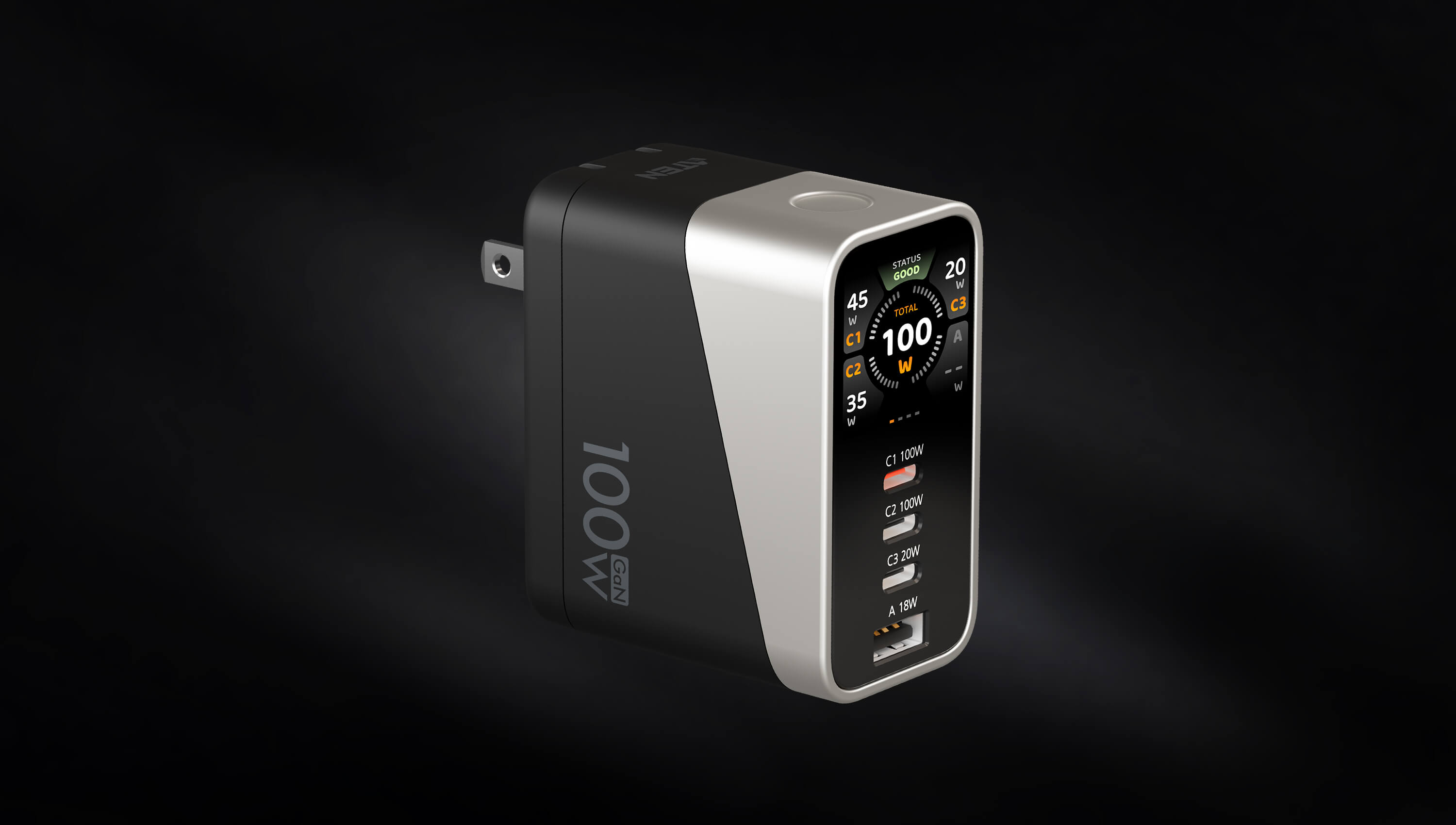

Meet the ultimate charging companion for your modern, multi-device lifestyle. It delivers up to 100W across all ports to let you to fuel up to four devices simultaneously. The built-in smart display with three selectable themes doesn’t just allow you to personalize your experience, but also keeps you informed with wattage output of each port and other operating status in real-time. Advanced GaN technology ensures efficient charging and excellent heat management, while CoreShield™ system providing multiple layers of protection for safe and stable performance. The compact enclosure with a foldable plug makes it easy to carry wherever you go. An 1m 240W USB-C to USB-C charging cable in included in the package, meaning you have everything needed for instant, dependable charging.

Power Plug
Model
UP5100-US
UP5100-EU
UP5100-KR
Plug Type
US Plug - Foldable
EU Plug - Foldable
KR Plug - Foldable
Dimensions(W x D x H)
35.6 x 58.9 x 72.2mm
35.6 x 70 x 70.2mm
35.6 x 70 x 70.2mm
Weight
190g
200g
200g
Input
Input Frequency Range50Hz / 60Hz
Rated Input current1.5A max.
Output
WattsUSB-C1: 100W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A)
USB-C2: 100W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A)
USB-C3: 20W max. (5V⎓3A, 9V⎓2.22A, 12V⎓1.67A)
USB-A: 18W max. (5V⎓3A, 9V⎓2A, 12V⎓1.5A)
USB-C1+C2: 65W+35W max.
USB-C1/C2+C3: 65W+20W max.
USB-C1/C2+A: 65W+18W max.
USB-C3+A: 15W max. (5V⎓3A)
USB-C1+C2+C3: 45W+35W+20W max.
USB-C1+C2+A: 45W+35W+18W max.
USB-C1/C2+(C3+A): 65W+15W max.
USB-C1+C2+(C3+A): 45W+35W+15W max.
Total outputs: 100W max.
Physical Properties
Output Type3x USB-C
1x USB Type-A
Power Indicator1x TFT Smart Display
Environmental
Operating Temperature0 ~ 35℃
Operating Humidity5 ~ 90 % RH (no condensation)
