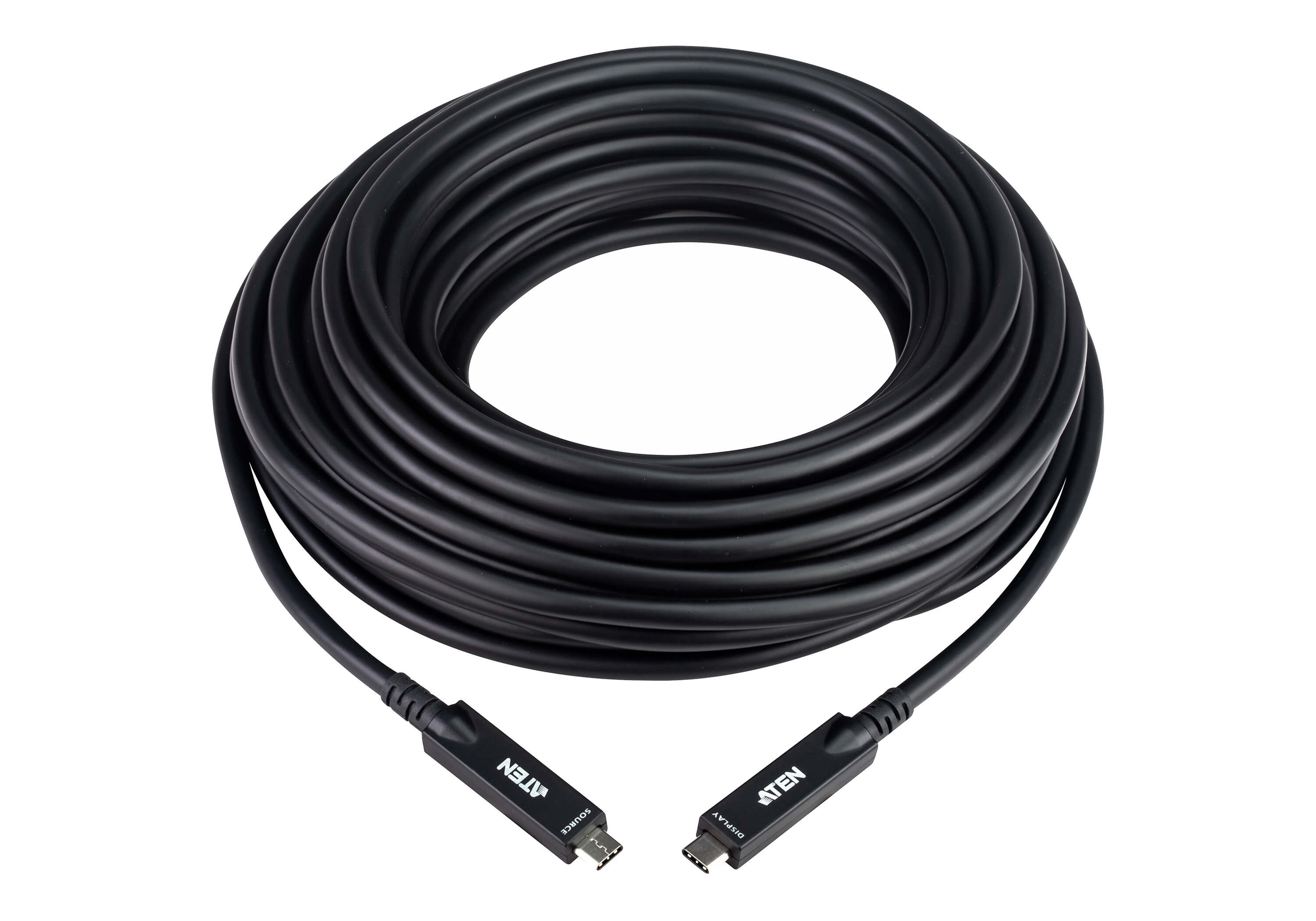

15 m Ultra HD USB-C Active Optical Cable

New Coming soon
UE3415F
  • Extends distance between PCs and USB-C peripherals up to 15 m
  • Supports either 4-lane DP 2.1 + USB 2.0 (480 Mbps) or 2-lane DP 1.4 + USB 3.2 Gen 2 (10 Gbps) depending on the requirements of the connected device
  • Supports video resolutions up to 4K @ 60 Hz
  • Supports 60W power delivery
40-4K (True)
Features-Icon_02-15m-Long-Distance-Transmission
Features-Icon_120-PD-60W
Features-Icon_18-USB3.2-gen2
Features-Icon_23-USB-C
MSRP: Quote Upon Request

Add to Quote Cart

The UE3415F is a USB-C 3.2 Gen 2 full-featured active optical cable that handles high-speed data and video transmission and up to 60W power delivery for a distance of up 15 m simultaneously. It supports 2-lane (DP 1.4 + USB 3.2 10 Gbps) and 4-lane (DP 2.1 + USB 2.0 480 Mbps) modes up to 4K @ 60 Hz. Cable construction using premium materials brings high resistance to EMI / RFI, making it suitable not just for educational and conference scenarios, but also sensitive applications in medical industry.

Connectors
USB Port1 x USB-C Male
Downstream1 x USB-C Male
Cable TypeHybrid type with optical fiber and copper wire
Cable Length15 m
Data RateUp to 10 Gbps
Power ConsumptionDC5V:2WBTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity10-80% RH
Jacketed
MaterialPVC
ColorBlack
Physical Properties
HousingConnector Case: Zinc-Alloy
Weight1.10 kg ( 2.42 lb )
Note1. Make sure to plug the SOURCE connector to the output port of a source device and the DISPLAY connector to the input port of a display device.
2. Bending radius of optical cable must exceed 65 mm when the conduit turns direction. Bending or intermediate splicing is absolutely not allowed.
3. Make sure that the two connectors on the cable are not heavily pressed or pressured. They are very fragile. Please handle with care.
4. When laying optical cables, special caution must be taken that the pulling force is within the tolerance range (<50kg). Lay the cable in even speeds to avoid any impact or sudden stop.
5. When laying optical cables, make sure the speed is controlled not to exceed 20m/minute.

Datasheet

UE3410F-UE3415F-10m-15m-Ultra-HD-USB-C-Active-Optical-Cable-Datasheet-en.pdf (835.01 KB)
