16-Port Short Depth PS/2-USB VGA Single Rail WideScreen LCD KVM Switch

New
CL3116
  • Exclusive LED illumination light
  • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console
  • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
ROHS
Weee

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

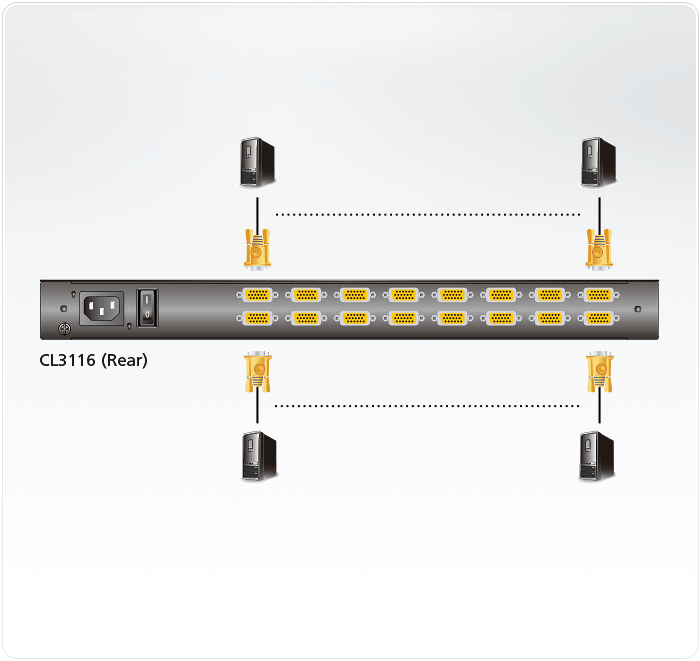

The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

Package Contents

  • 1x CL3116 LCD KVM Switch with Standard Rack Mounting Kit
  • 2x Custom KVM Cables (VGA, USB; 1.8m/6ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 1x User Instructions
  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Console lock – enables the console drawer to remain securely locked away in position when not in use



  • Reliability and Operational Versatility
    • Superior video quality - up to 1366 x 768 @60Hz; DDC2B
    • Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
    • Dual Interface – supports computers with PS/2 or USB keyboards and mice
    • Auto PS/2 and USB interface detection
    • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
    • Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
    • Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
    • Two level password security – only authorized users can view and control computers
    • Auto Scan mode – enables continuous monitoring of user-selected computers
    • Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
    • Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse



  • Installation Flexibility
    • Standard rack mount kit included
    • Optional Easy Installation Rack Mounting Kit available*
    • No software required
    • Firmware upgradable
    • Supports hot-plugging

      *The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information.


FunctionCL3116NX
Computer Connections
Direct16
Maximum256 (via Cascade)
Port SelectionOSD, Hotkey, Pushbutton
Connectors
KVM Ports16 x SPHD Female (Yellow)
Firmware Upgrade1 x 3.5mm Audio Jack Female (Black)
Power1 x IEC 60320/C14
External Mouse Port1 x USB Type A Female (Front)
Switches
Port Selection16 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
Power1 x Rocker Switch
LCD Control4 x Pushbutton
LCD Power1 x LED Pushbutton
LEDs
Online16 (Orange)
Selected16 (Green)
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light1 x LED Illumination Light
Panel Spec
LCD Module18.5" TFT-LCD
Resolution1366 x 768 @ 60 Hz
Response time5 ms
Viewing Angle170° (H), 160° (V)
Pixel Pitch0.3 mm x 0.3 mm
Support Color16.77M colors
Contrast Ratio1000 : 1
Luminance250 cd/m²
Video
Input Video Resolutionup to 1920 × 1200 @ 60 Hz;
1366 × 768 @ 60 Hz, DDC2B
Scan Interval1-255 seconds
Emulation
Keyboard / MousePS/2, USB
Maximum Input Power Rating100–240 V AC, 50-60 Hz, 1 A
Power ConsumptionAC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal + Plastic
Rail TypeSingle Rail
Weight10.60 kg ( 23.35 lb )
Dimensions (L x W x H)48.06 x 63.17 x 4.28 cm
(18.92 x 24.87 x 1.69 in.)
Body Dimensions(L x W x H)44.92 x 58.4 x 4.28 cm
(17.69 x 22.99 x 1.69 in.)
NoteBody Dimensions exclude I/O ports, handles, and mounting brackets.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
