2-Port USB 5K DisplayPort/HDMI Dual Display Universal Secure KVM Switch with CAC (PSD PP v4.0 In Evaluation) -TAA

New Coming soon
CS1142DPH4C
  • Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements.
  • Superior ultra-high video quality – up to 5K (5120 x 2880 @ 60Hz)
  • DisplayPort / HDMI combo connectors support DisplayPort and HDMI video interfaces (both PC and Console sides)
  • Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Universal Secure KVM Switch series inoperable when physical tampering is detected
  • Production in Taiwan
5K
MSRP: Quote Upon Request

ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To fulfill different customer demands, ATEN PSD PP v4.0 Universal Secure KVM Switches offer a wide range of options, including 2-port and 4-port, CAC and Non-CAC models, and support for DisplayPort or HDMI interfaces through a single combo connector. ATEN PSD PP v4.0 Universal Secure KVM Switches also provide customers with the flexibility to connect single or dual displays, providing superior video quality up to 5K (5120 x 2880 @ 60Hz) 1.

To enhance security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 2. With multi–layered security, ATEN PSD PP v4.0 Universal Secure KVM Switch CS1142DPH4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking & finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Note:
1. Supports video output resolutions up to 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz.
2. The Remote Port Selector is not supplied in the package and requires a separate purchase.

Package Contents

  • 1x CS1142DPH4C 2-Port USB 5K DisplayPort/HDMI Dual Display Universal Secure KVM Switch with CAC
  • 1x power adapter
  • 1x foot pad set
  • 1x port name labels
  • 1x HDMI cable lock set
  • 1x user instructions
  • DisplayPort / HDMI combo connectors support DisplayPort and HDMI video interfaces (both PC and Console sides)
  • Superior ultra-high video quality – up to 5K (5120 x 2880 @ 60Hz)1
  • Port selection via pushbuttons / Remote Port Selector (RPS)2 only to enhance security
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources
  • Configurable Port LED color and Port Name Labels – easier identification between ports connected to different security classification levels.
  • Supports enable/disable CAC function3 by port
  • LED indicators for peripheral filtering and KVM security status
  • Rugged metal enclosure
  • Supports analog audio (speaker only)4

    Note:
    1. Supports video output resolutions up to 5120 × 2880 @ 60Hz, 5120 × 2160 @ 60Hz, 5120 × 1440 @ 60Hz/120Hz/144Hz, 3840 × 2160 @ 60Hz/120Hz/144Hz.
    2. The Remote Port Selector is not supplied in the package and requires a separate purchase.
    3. Not all models support CAC function.
    4. Only analog speaker data input is supported.
Computer Connections2
Port SelectionPushbutton, Remote Port Selector

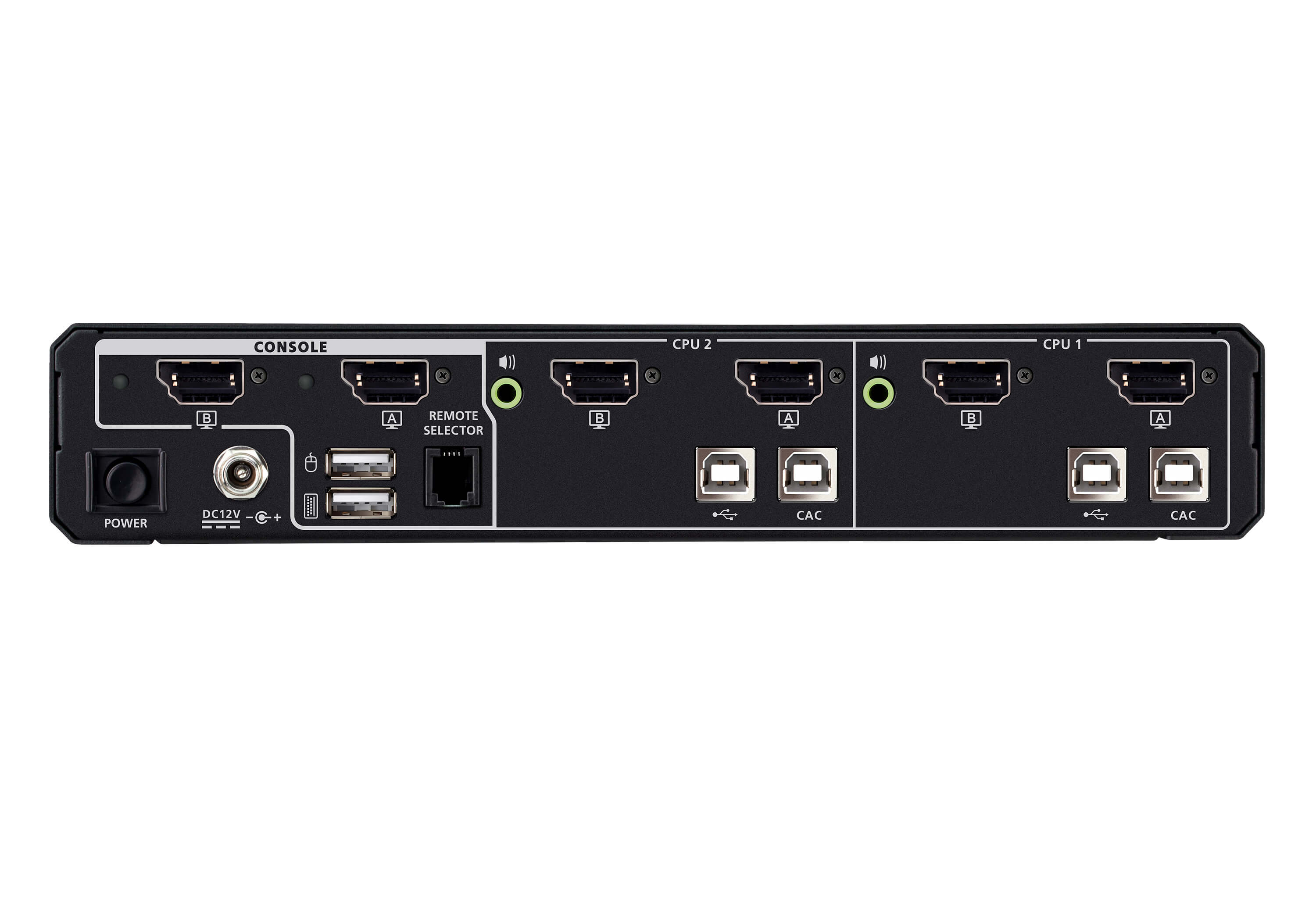

Connectors
Console Ports2 x DP/HDMI Female (Black)
2 x USB Type-A Female (White)
1 x Mini Stereo Jack Female (Green; 1 x front)
KVM Ports4 x DP/HDMI Female (Black)
4 x USB Type-B Female (White)
2 x Mini Stereo Jack Female (Green)
Power1 x DC Jack
USB CAC Port1 x USB Type-A Female (White; 1 x front)
Remote Port Selector1 x RJ-11 (Black; 1 x rear)
Switches
Port Selection2 x Pushbuttons
Reset1 x Semi-recessed Pushbutton
Power1 x Pushbutton
LEDs
Power1 (Green)
Online / Selected (KVM Port)2 (Orange / Green)
Online / Selected (CAC Port)2 (Orange / Green)
Video2 (Green)
Key Lock3 (Green)
Emulation
Keyboard / MouseUSB
VideoMax. 5120 x 2880 @ 60 Hz, 3840 x 2160 @ 144 Hz
Maximum Input Power Rating100–240V~; 50-60 Hz; 1.2A
Power ConsumptionDC12V:19.56W:142BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight1.21 kg ( 2.67 lb )
Dimensions (L x W x H)24.50 x 14.36 x 4.30 cm
(9.65 x 5.65 x 1.69 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
