VGA/Audio to HDMI Converter


VC180
  • Converts VGA signals to HDMI output
  • Supports analog stereo audio input
  • Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
  • Superior video quality – up to 1080p, WUXGA
Features-Icon_59-Resolution-1920x1080
Features-Icon_78-HDB-15-Video-in
Features-Icon_79-HDB-15-Video-out
HDMI
MSRP: Quote Upon Request

Add to Quote Cart

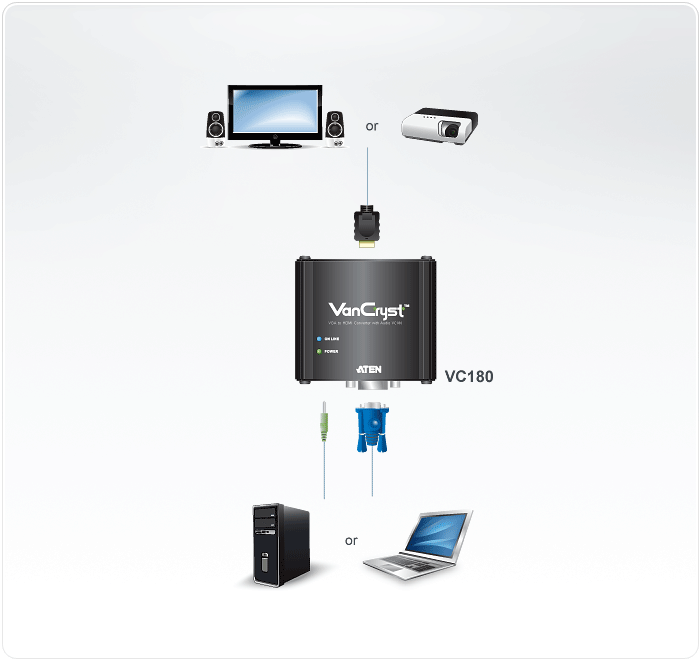

The VC180 converts VGA video to  HDMI digital video to connect your computer to monitors, projectors, or Televisions.

Small yet powerful,  the VC180 is easy to install and offers resolutions up to 1920 x 1200 including 1080p. The VC180 provides video alignment adjustments and will memorize the settings making it a one time operation.
In addition to the VGA to HDMI conversion, the VC180 provides Stereo HDMI audio to the destination device by integrating your computer’s audio output into the HDMI signal

The VC180 will extend your converted video up to 50 ft from its output connection to the destination’s input.


Maximum Distance:
Source to VC180 = 6 ft
VC180 to destination = 50 ft

Package Contents

  • VC180 VGA to HDMI / Audio Converter
  • Power Adapter
  • User Guide
  • No software / drivers to install
  • Convert VGA signal to HDMI signal output
  • Support up to 1080p(HDTV) and 1920x1200
  • Support Stereo Audio Input and high quality audio output
  • Support dual power source (VGA port or DC adapter)
  • LED indicator for input video signal detection
  • Output screen position adjustment function with memory
  • Support Windows and Mac OS
Video Input
Interfaces1 x HDB-15 Female (Blue)
Impedance75 Ω
Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ω
Video
Max. Pixel Clock165 MHz
Max. ResolutionUp to 1080p
Audio
Input1 x Mini Stereo Jack Female (Green)
Connectors
Power1 x DC Jack
Power ConsumptionDC5V:2.62W:12BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 - 50 ºC
Storage Temperature-20 - 60 ºC
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.16 kg ( 0.35 lb )
Dimensions (L x W x H)7.90 x 7.81 x 2.44 cm
(3.11 x 3.07 x 0.96 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
