StreamLive HD All-in-one Multi-channel AV Mixer

New
UC9020
  • All-in-one design to simplify streaming workflow–Integrates 1080p video capture, video switch, streaming encoder, video converter, video splitter, and audio mixer
  • Professional-quality live streaming to global audiences by any CDN platform , with a low entry threshold, even entry-level users can quickly get started
  • Intuitive app for preview and program monitoring, change video layout in Full Screen/PBP/PIP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish
  • Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
ROHS
Weee


All-in-one, Made as Simple as Possible

Create a professional, dynamic multi-camera production with the UC9020 StreamLIVE™ HD. It is the simplest, all-in-one TV-quality livestreaming studio that is small in size and big on capability. Everything you need for livestreaming is ready to just plug-n-play. No computer, monitor, or complicated software settings necessary. Capture, stream, and switch between two full HD video inputs over the Internet and instantly take your video production to the next level.

Intuitive, from Start to Finish

Every inch of StreamLIVE™ HD has been optimized for the easiest operation, including the hardware control panel and the powerful yet sophisticated control APP, that turns your iPad* into a touch interface for controlling, preview monitoring, real-time editing, and arranging multi-elements into program mixing. You can switch and mix video/audio, change settings and effects, and save up to 8 scenes for quick switching.

For detailed iPad compatibility please refer to specifications.



Go LIVE, to Every Major Platform Anywhere

With the built-in encoder and streaming server, all you need to do is connect to your video sources and network. StreamLIVE™ HD is compatible with every major platform and can livestream to two platforms at the same time virtually anywhere, including Facebook, YouTube, Vimeo, Livestream or any custom RTMP destination, all in high-quality full HD.

Facebook . Youtube . Live Stories . Periscope . Meerkat . YouKnow . Twitter . Vimeo

Goodbye, Post-Production

Your iPad becomes your personal video editing suite. With the ATEN OnAir™ App, you can design and preset up to 8 custom scenes with the intuitive touchscreen interface and custom scene editor. Combine, crop, and scale video to make outstanding PnP layouts. Add transparent png images, backgrounds, and text overlays with professional-looking effects. The scene presets can be exported and shared with your community to other StreamLIVE™ HD systems.

1.9kg, That’s Everything You Need for Streaming

Designed to simplify your video production workflow, StreamLIVE™ HD is not only all-in-one to reduce equipment and cabling that you need to carry for streaming, but also compact in size with extreme portability. It is just so easy to setup and transport. You will be relieved from heavy equipment and complex setups. Use StreamLIVE™ HD whenever you need to stream and it will become your indispensable companion for live video production.






Package Contents

  • 1x StreamLIVE™ HD
  • 1x USB-A to USB-C Cables
  • 1x USB-A to USB-A Cables
  • 1x AC Power Cable
  • 1x User Instructions

The StreamLIVE™ HD is a portable, all-in-one, multi-channel audio/video mixer device that integrates a 1080p video capture, video switch, stream broadcaster, video converter, video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE™ HD makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook,and Twitch.

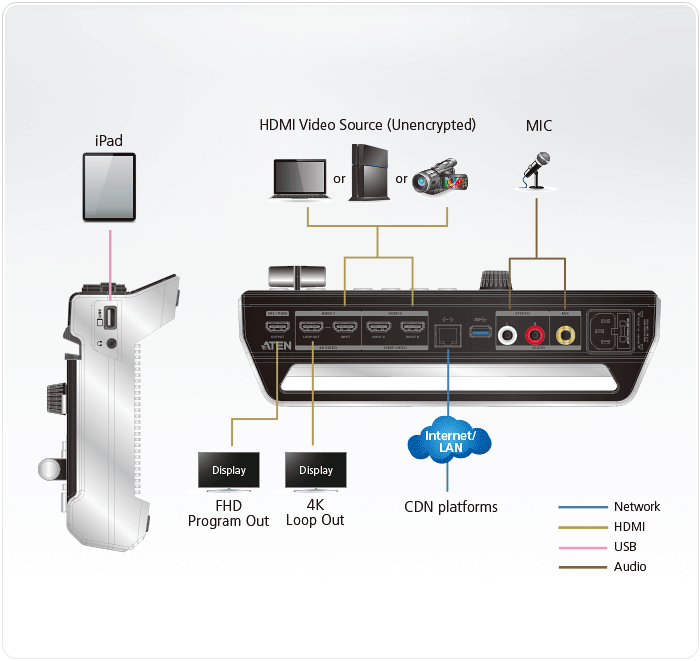

For added convenience, the StreamLIVE™ HD provides an intuitive app, making it easy to monitor, edit image layouts, and adjust PIP settings. The StreamLIVE™ HD is PC and software-free, and with its well-designed control panel, it makes livestreaming operations smooth and effortlessly. You can even preview video and monitor audio levels before going live with your web broadcast! To get started, simply connect video/audio sources, and an Ethernet with an ATEN app-installed iPad, and you are ready to roll.

Whether you're capturing, editing or streaming, the StreamLIVE™ HD with its ergonomic and practical design, it is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, the StreamLIVE™ HD addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.



  • All-in-one design to simplify streaming workflow–Integrates 1080p video capture, video switch, streaming encoder, video converter, video splitter, and audio mixer
  • Professional-quality live streaming to global audiences by any CDN platform , with a low entry threshold, even entry-level users can quickly get started
  • PC-free and software-free with plug-n-roll capability
  • Intuitive app for preview and program monitoring, change video layout in Full Screen/PBP/PIP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish
  • Storyboard-like management – preset up to 8 scenes for later while streaming and during performances to reduce the need to interact with hardware
  • Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
  • Fanless and optimized thermal air flow system for quiet operation
  • Multitask designed handle-stand to enhance portability and ergonomic comfort angle


Video Input
Interfaces1 x 4K HDMI Type-A Female
(up to 4K@60, no HDCP support)
2 x HDMI Type-A Female
(up to 1080p@60, switcher, no HDCP support )
Video Output
Interfaces1 x 4K Loop-Thru HDMI Type-A Female
(up to 4K@60, no HDCP support)
1 x PGM HDMI Type-A Female
(up to 1080p@60, no HDCP support)
Video Sampling4:2:2 8-bit
Color Space4:2:2 YUV
Video Resolution////////////////////// Input Resolution /////////////////////////
HDMI1

VGA: 640x480, 480p: 720x480, SVGA: 800x600, XGA: 1024x768, 720p: 1280x720, SXGA: 1280x1024, WXGA+:1440x900, UXGA: 1600x1200 (RB), WUXGA+:1680x1050, 1080p: 1920x1080, 4K UHD: 3840x2160, 4K DCI : 4096x2160

HDMI2 A/B*

VGA: 640x480, 480p: 720x480, SVGA: 800x600, XGA: 1024x768, 720p: 1280x720, SXGA: 1280x1024, 1360x768, WXGA+: 1440x900, UXGA: 1600x1200(RB), 1080p: 1920x1080

*Only selected port show video, another one show non-video photo or graph.

///////////////////////// Output Resolution /////////////////////////


SRC/PGM HDMI

480p: 720x480, 576p: 720x576, 720p: 1280x720, 1080p: 1920x1080

HDMI Loop-Through

VGA: 640x480, 480p: 720x480, SVGA: 800x600, XGA: 1024x768, 720p: 1280x720, SXGA: 1280x1024, WXGA+:1440x900, UXGA: 1600x1200 (RB), WUXGA+:1680x1050, 1080p: 1920x1080, 4K UHD: 3840x2160, 4K DCI : 4096x2160
Audio Inputs
InterfacesHDMI captured inputs (stereo)
1 x Mic input, 6.5mm jack (dual mono)
1 x Line input, RCA jack, signal level: -10 dBV
Audio Outputs
InterfacesHDMI outputs (stereo)
1x Line output, 3.5mm Jack (stereo)
Network ProtocolMulti-Publish to Streaming Server / CDN (RTMP/RTMPS)
-------------------------------------------------------
Video Encoding

Format: H.264
Bit rate: 512Kbps~10Mbps
Color Format: YUV420
Resolution: 1080p30, 720p30, 480p30
-------------------------------------------------------------------
Audio Encoding

Format: AAC
Sampling Rate: 48kHz
Bit rate: 128kbps
Connection1x USB 3.1 Gen1 Type-A Female (Blue)
1x USB2.0 Type-A(White)
1x GbE LAN port
Environmental
Operating Temperature0 - 40 ºC
Storage Temperature-20 – 60 ºC
Humidity0 - 80% RH, Non-Condensing
OS Support• iPad Pro (3rd gen) with iOS 11 or later
The following iPad with iOS 11 or later (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st gen) • iPad Pro (1st gen) • iPad Pro (2nd gen) • iPad Pro (2nd gen)
• iPad (5th gen) • iPad (6th gen) • iPad Air (3rd gen) • iPad Mini (5th gen)
Power
Maximum Input Power RatingIEC C14, 100-240 Vac (w/250V fuse)
Power Consumption110V:12.9W:80BTU
220V:12.7W:79BTU
Physical Properties
HousingMetal
Weight1.89 kg ( 4.16 lb )
Dimensions (L x W x H)28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
