2-Port USB-C Gen 1 Dock Switch with Power Pass-through

New
US3310

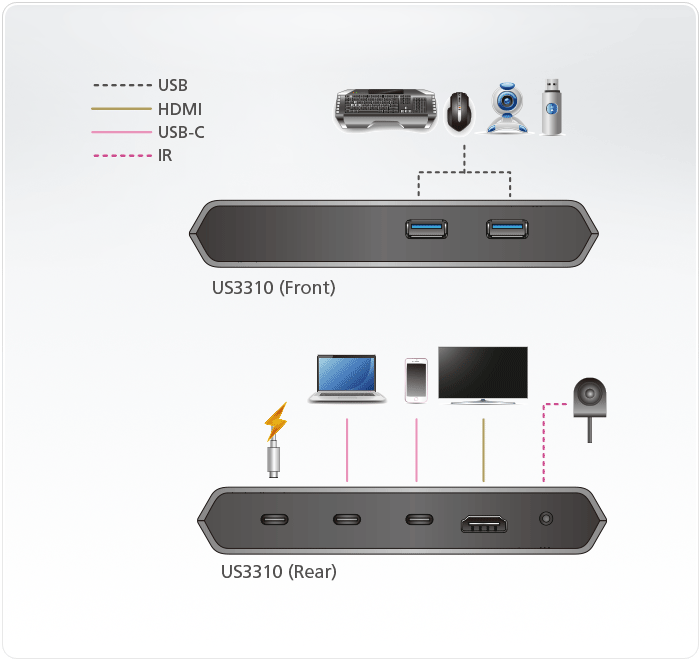

  • Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals
  • Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter needed)
  • Supports 4K resolutions – up to 3840 x 2160 @ 30Hz
  • Video DynaSync – allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching
4K
ROHS
Weee
MSRP: Quote Upon Request

Buy from your favorite store now:


Expand What Your Mobile Device Can Do

No more dealing with plugging and unplugging. Dock your USB-C smartphone, iPad Pro , and laptop, or two USB-C laptops, to US3310 and share a display and peripherals.* Use only one set of display, keyboard, and mouse to seamlessly control two systems and save desk space. Put the remote port selector in the most convenient place or even hide it under your desk for quick switching.

*Compatible with smartphones launched in 2018 or later that feature video output (DP Alt Mode) over USB-C.



2-sec Speedy Switching to Stay Efficient

There’s no time to waste on switching lag. Thanks to exclusive ATEN technology that eliminates lag and resolution issues, switching between two systems only take two seconds, making your workflow more efficient. Your HDMI connection will stay active without disrupting the layout when switching. The USB connection works as a USB hub, which means you can keep all the functionality of a keyboard and mouse, such as media keys or extra mouse buttons.

Superior Video Quality and Ultra-fast USB 3.2 Data Transfer Speed

Support maximum resolution up to 4K@30Hz for 4K TVs or ultra-wide and gaming monitors. USB 3.2 provides data transfer speed up to 5Gb/s allowing you to share external storage devices for swapping data between two systems quickly and easily.




Extend the Desktop Environment to your Phone

Nowadays a smartphone can act like a PC. Use your smartphone to work, watch, and play on the go. Once back to the office or home you can connect it with US3310 to build a workstation in Samsung DeX mode for multitasking, and switch to a laptop once you have heavy tasks to do.

Charge your Phone, iPad, Laptop, and Power-hungry Devices

The 85W USB C power delivery 3.0 pass-through charges your phone, and laptop simultaneously and also provides enough power for power-hungry devices such as external hard drives or gaming devices. You can use your favorite keyboard and mouse to work and play, even with a power-hungry RGB gaming rig.




Package Contents

  • 1x US3310 2-Port USB-C Gen 1 Dock Switch with Power Pass-through
  • 2x USB-C Cables
  • 1x Remote Port Selector
  • 1x User Instructions

The US3310, 2-port USB-C Dock Switch with Power Pass-through, features the combination of a multiport dock and allows one button switching between two sources – laptop and Android smart phone. Use only one set of display, keyboard, and mouse to seamlessly control two different systems and save desk space. With the remote port selector, you can put it on the most convenient place or hide it under the desk to do the quick switching.

Featured with the superior HDMI video resolutions up to 4K (3840 x 2160) @ 30Hz, the US3310 delivers high quality video with minimal latency when switching and your HDMI connection will keep active without destroying the layout when switching. In addition, the USB 3.2 Gen1 provides data transfer speed up to 5Gb/s allowing to share external storage devices for swapping data between two systems easily.

The 85W USB C power delivery 3.0 pass-through can keep charging your phone and laptop simultaneously and also provides the enough power for power-hungry devices, such as external hard drives or gaming devices. You can connect smartphone with US3310 to build a workstation in Samsung DeX mode or Huawei Desktop mode for multitasking, and switch to laptop once you have heavy loading task to do.

With US3310, users can save desk space, and switch host devices directly, and creates a personalized desktop environment.



  • Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals*
  • Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter needed)**
  • Supports 4K resolutions – up to 3840 x 2160 @ 30Hz
  • Supports Samsung DeX mode or Huawei Desktop mode***
  • Video DynaSync – allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching
  • Switch device via remote port selector by pressing a button
  • Plug and play – no drivers or external power adapter needed
  • Multiplatform support – Windows, Mac, Android & iPad Pro (2018)
    *For video output to work through a USB-C port, it must support DP Alt Mode.
    **For device charging, a Limited Power Source (LPS) certified USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A.
    ***Compatible with smartphones launched in 2018 or later that feature video output DP Alt Mode over USB-C. For a list of supporting mobile device, refer to US3310's user manual


Computer Connections2
Connectors
ComputerUSB 3.2 Gen 1 Type-C Port 1 (Laptop)
USB 3.2 Gen 1 Type-C Port 2 (Android : Samsung Dex or Huawei Desktop mode)
Device2 x USB 3.2 Gen 1 Type-A Female
Video Output1 x HDMI Female
Power1 x USB-C DC-in Female*

Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output*
Port 2 : Supports max. 5V, 2A output

*Supports maximum 100W USB-C PD power adapter input.
*For device charging, a Limited Power Source (LPS) certified USB-C PD Power Adapter over 65 Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A.
*The first 15W will supply the US3310, the next 10W will supply USB-C device connected to Port 2, and the balance power will supply USB-C device connected to Port 1.
Port Selection
InputRemote port selector
Video ResolutionUp to 3840 x 2160@30hz
System RequirementsWindows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 and above, USB-C enabled computer

Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode**
**Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3310's user manual.

iOS 12.1 and above, iPad Pro 3rd generation (2018)***
*** For better HID experience, iPad OS 13 and above is recommended.
Power ConsumptionDC5V:1.24W:406BTU
LEDs
Selected2 (White)
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingAluminum
Weight0.33 kg ( 0.73 lb )
Dimensions (L x W x H)14.30 x 11.90 x 2.38 cm
(5.63 x 4.69 x 0.94 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
