2-Port DVI/Audio Splitter


VS162
  • Connects computers with DVI graphics to two DVI compatible monitors or projectors.
  • Fully compliant with DVI-Digital and DVI-Analog.
  • Maintains highest single link video resolution (up to 1920 x 1200).
  • Speaker enabled for audio enjoyment.
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request
Features-Icon_64-DVI-I-video-out
Features-Icon_65-DVI-I-video-in
Features-Icon_71-HDCP
Features-Icon_83-Stereo-audio

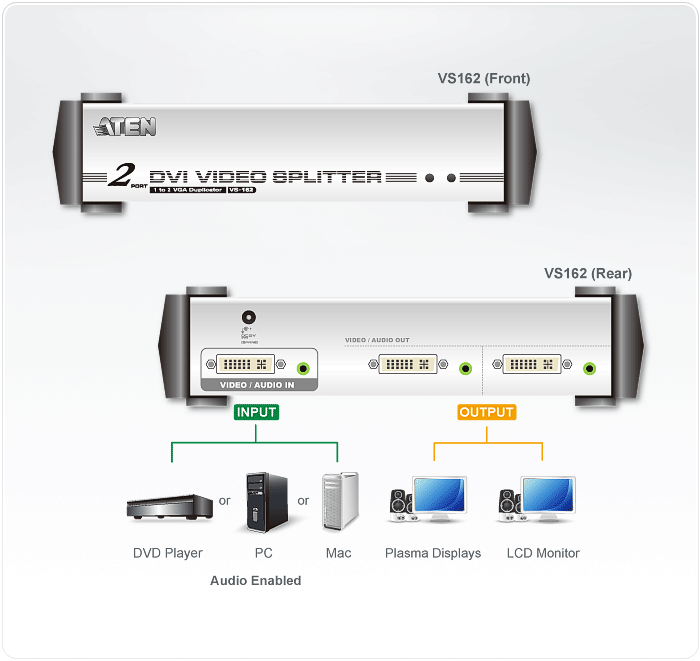

VS162 Video Splitter provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.

Package Contents

  • 1x 2-Port DVI Video Splitter
  • 1x 0AD6-1605-24EG Power Adapter
  • 1x User Instructions
  • Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
  • Fully compliant with DVI-Digital and DVI-Analog.
  • Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
  • Speaker enabled for audio enjoyment.
  • Cascadable to 3 levels - provides up to 8 video signals.
  • Cascade distance: Source to Device -1.8m, Device to Device-5m,Device to Display-5m.
  • Installs in minutes.
  • Maintains highest single link video resolution (up to 1920 x 1200).
  • DDC, DDC2, DDC2B Compatible (Port 1 only).
  • HDCP Compliant.
  • OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Video Input
Interfaces1 x DVI-I Female (White)
Impedance100 Ω
Max. Distance1.8 m
Video Output
Interfaces2 x DVI-I Female (White)
Impedance100 Ω
Video
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz
ComplianceHDCP Compatible
Max. ResolutionUp to 1920 x 1200
Max. DistanceUp to 5 m
Audio
Input1 x Mini Stereo Jack Female (Green)
Output2 x Mini Stereo Jack Female (Green)
Connectors
Power1 x DC Jack
Power ConsumptionDC5.3V:2.36W:11BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.62 kg ( 1.37 lb )
Dimensions (L x W x H)21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
Carton Lot5 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

vs162_164_video_splitter_ss_en.pdf (1.08 MB)
File NameRelease Date
vs162-vs164-user-manual-w.pdf (368.72 KB) 2026-09-03
