2-port True 4K DisplayPort Splitter

Name: VS192
Brand: ATEN

VS192

MSRP: Quote Upon Request

Add to Quote Cart

Connects one DisplayPort source to two DisplayPort monitors
Supports DisplayPort 1.2a; HDCP 1.3
Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
Supports MST/ Extend Mode and SST/ Split Mode*MST/ Extend Mode:Extend a video source across 2 displays with a maximum resolution of 4K.SST/ Split Mode: Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor

The VS192 2-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to 2 DisplayPort displays. The VS192, not only splits but also expands DisplayPort audio/video signals on 2 DisplayPort monitors, is ideal for any multi-display application.

The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in corporate, educational, and commercial settings.

Package Contents

1x VS192 2-port True 4K DisplayPort Splitter
1x 0AD6-1005-26EG Power Adapter
1x User Instructions

Connects 1 DisplayPort source to 2 DisplayPort monitors
Supports DisplayPort 1.2a; HDCP 1.3
Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz

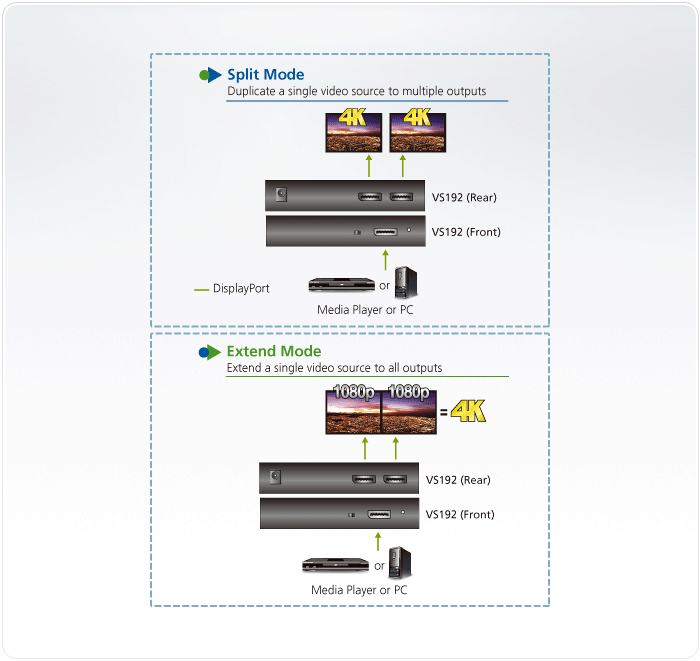

Supports MST/ Extend Mode and SST/ Split Mode*
MST/ Extend Mode:
Extend a video source across 2 displays with a maximum resolution of 4K.
SST/ Split Mode:
Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor
Supports Linkrate: HBR2 (High Bit Rate 2)
Note:
* The VS192 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1.

Video Output
Interfaces	2 x DisplayPort Female (Black)
Max. Distance	4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz) *tested with 2L-7D04DP
Video Input
Interfaces	1 x DisplayPort Female (Black)
Max. Distance	4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz) *tested with 2L-7D04DP
Video
Compliance	DP 1.2a; HDCP 1.3
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz
Max. Data Rate	21.6 Gbps (5.4 Gbps per lane)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:1.185W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0-40 °C
Storage Temperature	-20 - 60 °C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.30 kg ( 0.66 lb )
Dimensions (L x W x H)	12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
Carton Lot	20 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
