Solutions for the Control Room of the Future

The ATEN KVM over IP Matrix System combines KVM over IP Extenders with KE Matrix Management Software (CCKM) to extend, control, monitor and access DisplayPort/HDMI/DVI-interfaced computers across an independent network with flexible configurations. Over IP solutions allow operators to be separated from servers, while secure, remote access is made easy, and servers remain centrally manageable.

Effortless over IP Extension

Eliminates the distance restrictions of control room management, enabling a faster response to mission-critical data center emergencies.

Exceptional 4K Video Quality

3840x2160 @ 30HZ (KE9952 / KE9950 / KE8952 / KE8950) at 36-bit color depth / 1920x1200 @ 60Hz (KE6940 / KE6900 series) at 24-bit color depth.

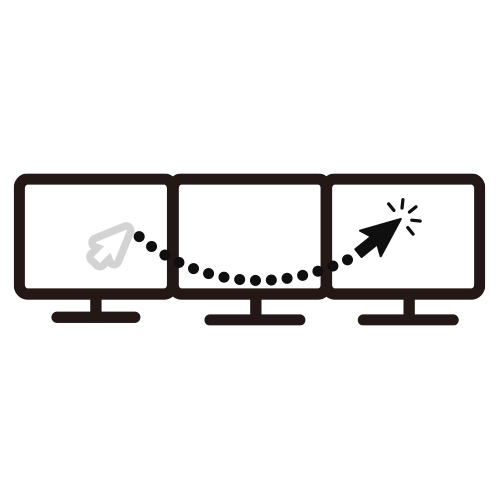

Intuitive Boundless Switching

An intuitive way to switch control to another receiver by moving your mouse cursor across the screen border and onto the target computer display.

Powerful Centralized Control

ATEN's KE Matrix Management Software (CCKM) makes it easy to define connections and manage all KE devices over a network with an intuitive user-friendly web based GUI.

Secure Data Transmission

The KVM over IP Extender utilizes AES-128 bit encryption to secure all data before it’s transmitted over a network and decrypts the data on the receiver.

Fast Switching

ATEN's unique Fast Switching technology switches between different transmitter video resolutions on a receiver display within 0.3 seconds.

Unbeatable Video Wall Versatility

Native video wall functionality allows users to create multiple video walls with up to 8 x 8 displays in each layout in various configurations without need for a separate video wall processor.

Push & Pull

Shares content instantly to/from a single Rx or video wall with just one click.

Applications

Facility Situation Rooms
Network Operation Centers
Utilities Process Control Centers
Traffic Management Centers
Retail Surveillance Centers
Broadcasting Distribution Monitoring Systems
Command Control Centers
Emergency and Rescue Command Centers
Operation Control Centers

Solutions in Action



Air Traffic Control

KE6910/KE6912/KE6920/KE6922/KE6900A/KE6940A models are especially suited for the air traffic control (ATC) industry, with relevant features listed as follows:

  • 2K x 2K resolution
  • Adaptive Fast Switching within 0.3 secs
  • Authentication lock for automatic logins
  • Connection redundancy
  • Power and network redundancy
  • Disconnection alert


Remote Work

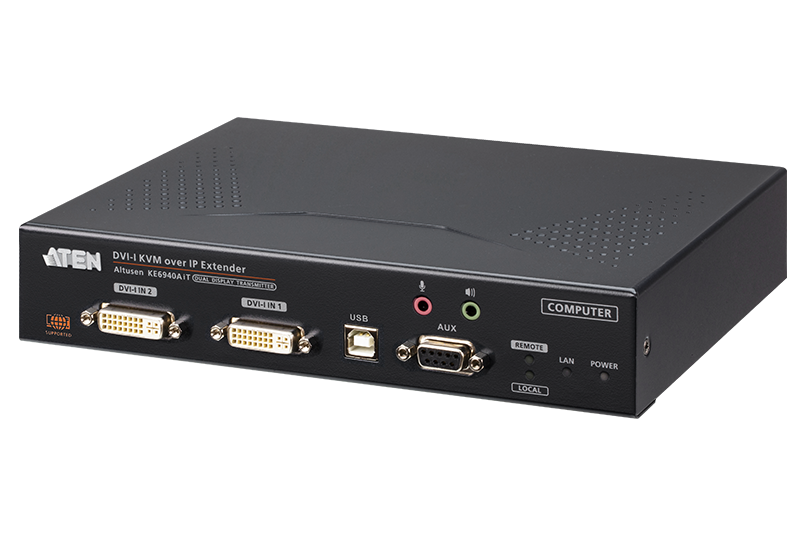

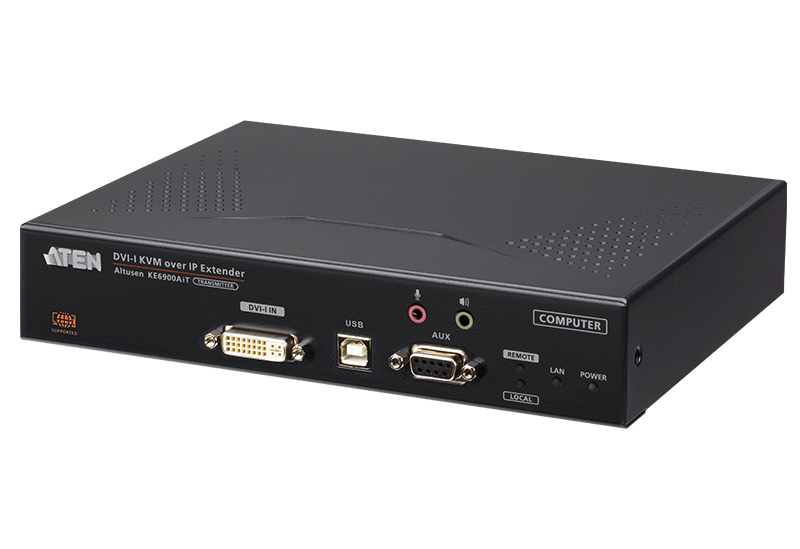

KE6900AiT/KE6940AiT models are specially designed to help facilitate remote access to systems at work for those who cannot be in the office but need to record the screen and mouse operations of remote and local sites.

  • Provides a dedicated RJ-45 Internet port for user session recording with CCVSR / remote client access
  • Supports power / network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
  • Supports CCVSR to record user sessions at local sites, as well as remote sites via Winclient/JavaClient

KE Series Models

DisplayPort

Product Comparison

ModelKE9950KE9952KE9900ST
Support InterfaceDisplayPortDisplayPortDisplayPort
Max. Video Resolution3840 x 2160
@30Hz
3840 x 2160
@30Hz
1920 x 1200
@60Hz
HDCP1.31.31.3
Audio● (Digital)
Mouse Emulation
Tx Local ConsoleN/A
Boundless Switching
Fast Switching *
Dual Video OutputN/AN/AN/A
Video Wall *
RS-232
OSDN/A
Virtual Media
Virtual USBN/A
PoEN/AN/A
LAN1 Gbps1 Gbps1 Gbps
Network InterfaceRJ45 + SFPRJ45 + SFPRJ45
* Supported by KE Matrix Management Software (CCKM)
ModelKE8950KE8952KE8900S
Support InterfaceHDMIHDMIHDMI
Max. Video Resolution3840 x 2160
@30Hz
3840 x 2160
@30Hz
1920 x 1200
@60Hz
HDCP1.41.41.4
Audio● (Digital)
Mouse Emulation
Tx Local ConsoleN/A
Boundless Switching
Fast Switching *
Dual Video OutputN/AN/AN/A
Video Wall *
RS-232
OSD
Virtual Media
Virtual USBN/A
PoEN/AN/A
LAN1 Gbps1 Gbps1 Gbps
Network InterfaceRJ45 + SFPRJ45 + SFPRJ45
* Supported by KE Matrix Management Software (CCKM)
ModelKE6900AiTKE6940AiTKE6910 / KE6912KE6920 / KE6922KE6900AKE6940AKE6900ST
Support InterfaceDVI-IDVI-IDVI-DDVI-DDVI-I2*DVI-IDVI-D
Max. Video Resolution1920 x 1200
@60Hz
1920 x 1200
@60Hz
2560 x 1600
@60Hz
2560 x 1600
@60Hz
1920 x 1200
@60Hz
1920 x 1200
@60Hz
1920 x 1200
@60Hz
HDCPN/AN/AN/AN/AN/AN/AN/A
AudioN/A
Mouse Emulation
Tx Local ConsoleN/A
Boundless Switching
Fast Switching *
Dual Video OutputN/AN/AN/AN/AN/A
Video Wall *
RS-232
OSDN/A
Virtual Media
Virtual USBN/A
PoEN/AN/AKE6912KE6922N/AN/AN/A
LAN1 Gbps1 Gbps1 Gbps1 Gbps1 Gbps1 Gbps1 Gbps
InternetN/AN/AN/AN/AN/A
Network InterfaceRJ45 + SFPRJ45 + SFPRJ45 + SFPRJ45 + SFPRJ45RJ45RJ45
* Supported by KE Matrix Management Software (CCKM)

KE Matrix Management Software

The KE Matrix Management Software (CCKM) allows you to define connections and manage, customize and control KVM over IP Extender pairings in a matrix configuration with features such as auto-detection of KVM over IP Extenders, username/password authentication, switching and sharing of connections, scheduling, permissions, and more. Whether you're extending computer access for monitoring, broadcasting, editing, or workstation setup, the KVM over IP Matrix System gives you the flexibility and control to manage one or hundreds of extended connections. Furthermore, you can take advantage of CCKM's Instant Link function to perform instant, real-time port and profile switching on an iPad. Simply download the KE Link app on an iPad and you're good to go.

  • Intuitive Dashboard


    Displays real-time preview of System Status, Device Connections, Scheduled Profiles, and User Sessions.
  • Primary-Secondary Architecture


    Offers centralized management redundancy with real-time database updating (up to 5 secondary servers can be connected).
  • Instant Link


    Provides real-time connections, allowing users to select or drag/drop a transmitter to a receiver.
  • Unbeatable Video Wall Versatility


    Allows the creation of multiple video wall layouts with up to 8 x 8 displays (64 displays max.).
  • Boundless Switching


    Enables quick move of the mouse cursor across screen boundaries to switch between different receivers.
  • SNMP Agent / SNMP Trap


    Automatically sends out SNMP Traps as warning messages when specific events occur and GET/SET specific configurations from the SNMP manager about pre-defined OIDs stored in the MIB file.
  • Authentication Lock


    Allows automatic logins when the system power or network connection is resumed after an accidental power-off or network disconnection.
  • Connection Redundancy


    Allows automatic connection to another transmitter after disconnection with the original one, ensuring constant access to servers.
