2 x 4 USB 2.0 Sharing Switch

New
US4224

Enables sharing of four USB peripherals at 480 Mbps between two PCs at a press of the pushbutton.

  • Four USB device sharing across two computers
  • 480 Mbps transfer with USB 2.0
  • Quick switch via built-in pushbutton
  • Compact enclosure with accent lighting
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request

Share 4 USB Peripherals
between 2 PCs with One-Button Switching

Instantly Manage Four Peripherals with a Single Press

The US4224 is a 2-Port USB Sharing Switch tailored for professional and personal workspaces where peripheral sharing between computers is essential. Featuring InstaSync™, you can easily switch control of up to four USB peripherals between two computer systems in an instant. This ensures a quick, streamlined workflow for any task while keeping your workstation tidy, clutter-free, and manageable at all times.

Sleek.
Compact.
Portable.

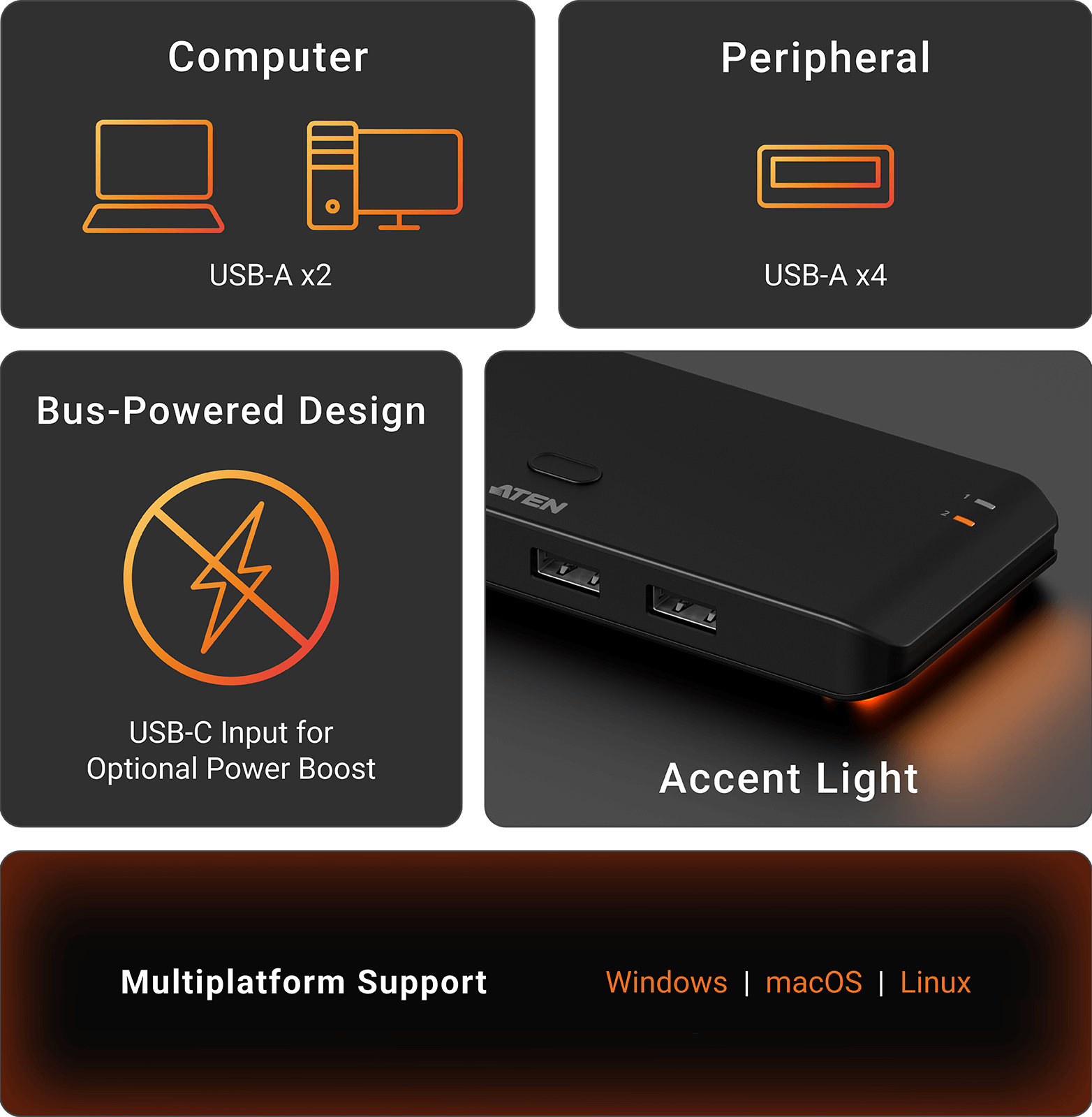

Accent Light

Stay in Sync with a Stylish Glow

Share All Devices with One-Button Switch

Flexible Bus-Powered Design

The switch automatically powers on when connected to a computer. For setups involving power-intensive peripherals, an auxiliary USB-C port is available to connect a power adapter, guaranteeing stable performance and reliability.

One Switch. Unlimited Possibilities.

Slide Content

Home Office

Slide Content

Commercial Office

Slide Content

Shared Workstation

Previous Next

What’s in the Box

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1 x US4224 2 x 4 USB 2.0 Sharing Switch
  • 2 x USB Type-A to USB Type-A cables
  • InstaSync ™ Technology
    • Fast USB switching capability that keeps the flow smooth and uninterrupted



  • Four USB Device Sharing Across Two Computers
    • Farewell to the need of swapping cables and peripherals between two separate computers



  • 480 Mbps Transfer with USB 2.0
    • Up to 480 Mbps data transfer rates ensure quick and efficient file transfer performance



  • Quick Switch via Built-In Pushbutton
    • Enjoy the hassle-free experience of switching USB peripherals between two systems with just one single button press



  • Compact Enclosure with Accent Lighting
    • Aesthetically pleasing with its accent lighting and a casing so compact that it occupies very little space



  • Hot Pluggable
    • Allows adding / removal of the peripherals/computers connected to the installation without having to power down the switch. Besides, no drivers or software is required



  • OS Independent
    • Compatible with mainstream operating systems including Windows, macOS, and Linux
Computer Connections2
Port SelectionPushbutton
Connectors
Computer2 x USB Type-A Female (Black)
Device4 x USB Type-A Female (Black)
Power (Optional)1 x USB Type-C Female (Black)
Cable Length
USB Cable2 x USB 2.0 Type-A to Type-A Cable (1.5m)
LEDs
Selected2 (Orange)
Power2 (Orange, Bottom Side)
Environmental
Operating Temperature0-40°C
Storage Temperature-20–60°C
Humidity10-80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.07 kg ( 0.17 lb )
Dimensions (L x W x H)14.50 x 5.65 x 1.52 cm
(5.71 x 2.22 x 0.6 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

US4224-essentials-datasheet-en.pdf (1.39 MB)
