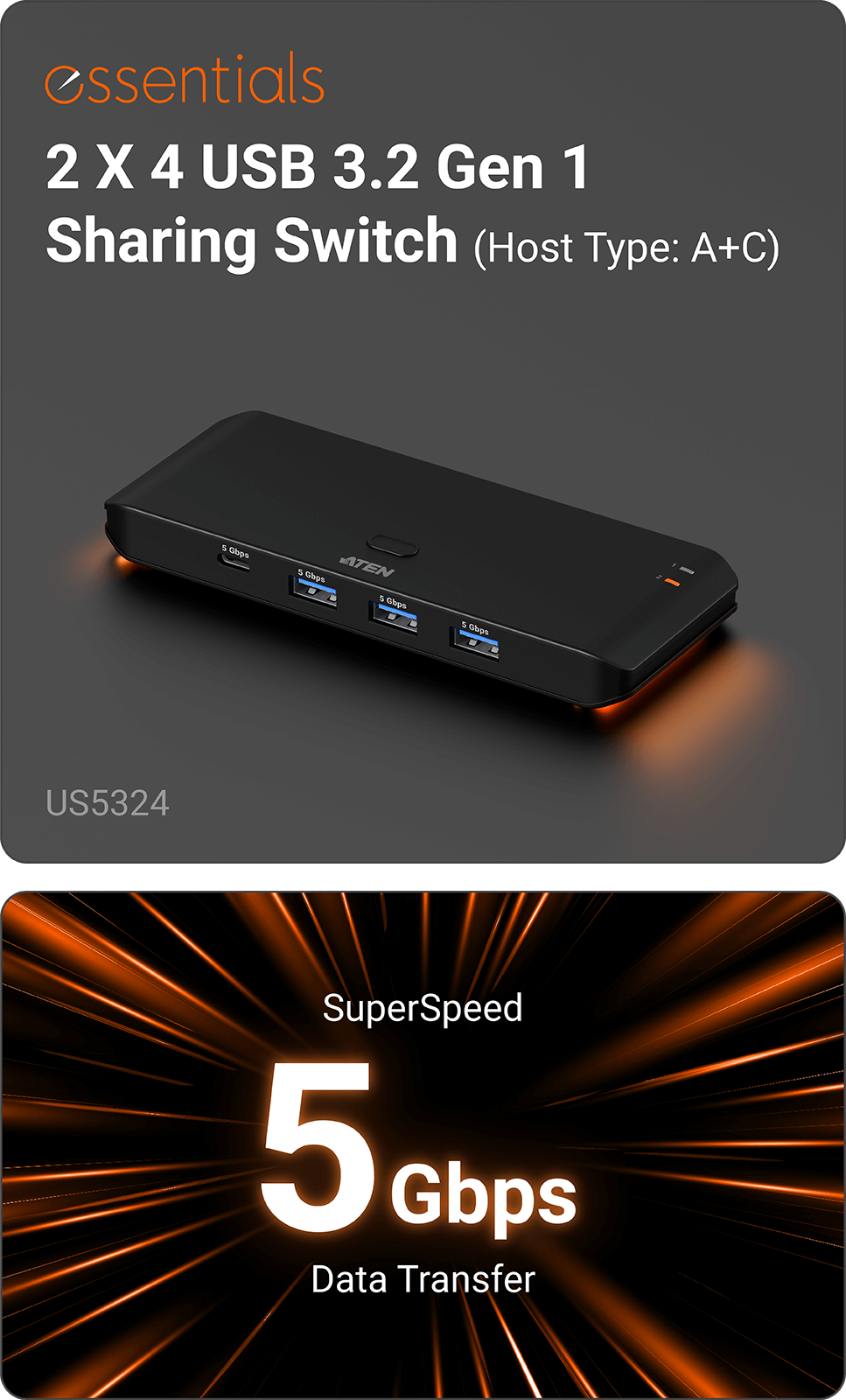

2 x 4 USB 3.2 Gen1 Sharing Switch (Host Type: A+C)

New
US5324

Enables sharing of four USB peripherals at blazing-fast 5 Gbps between one USB Type-A host and one USB Type-C host at a press of the pushbutton or the remote port selector.

  • Four USB device sharing across one USB Type-A and one USB-C computers
  • 5 Gbps data transfer with USB 3.2 Gen 1
  • Quick switch via built-in pushbutton and remote port selector
  • Compact enclosure with accent lighting
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request

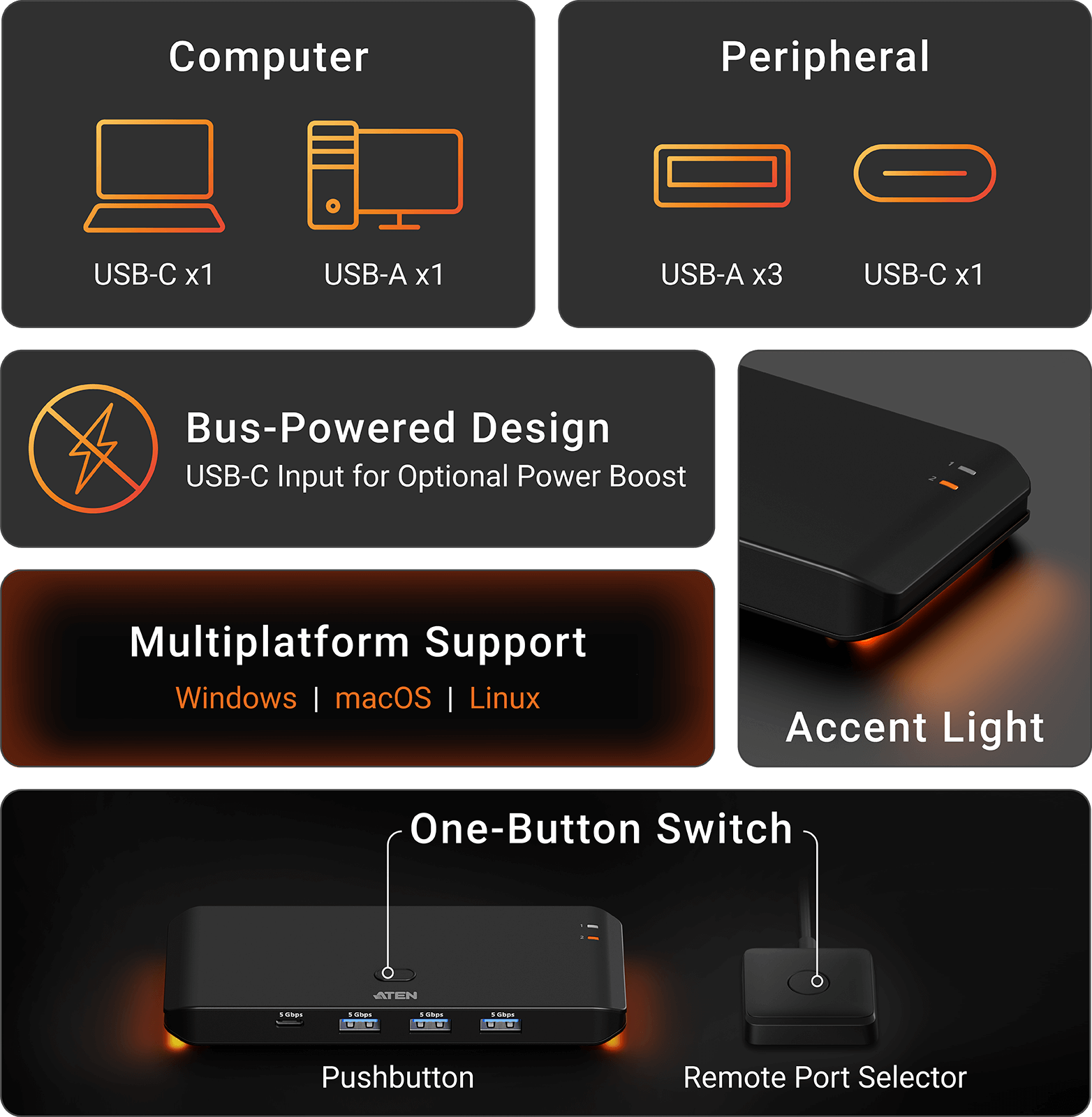

4 Peripherals (USB-A + USB-C), 2 PCs,
One-Button Switching

Four Peripherals, Instantly In Command

The US5324 is a 2-Port USB 3.2 Gen 1 Sharing Switch designed to simplify data sharing between computers using both USB-A and USB-C peripherals, making it ideal for professional and personal workspaces. With an intuitive plug-and-play experience and a space-efficient design, the US5324 is your best companion for any dual-computer desktop setup—whether you're working, creating, or multitasking. Featuring InstaSync™, you can easily switch control of up to three USB-A peripherals and one USB-C peripheral between two computer systems, all while keeping your desktop tidy and clutter-free.

Sleek.
Compact.
Portable.

Accent Light

Stay in Sync with a Stylish Glow

Share All Devices with One-Button Switch

Flexible Bus-Powered Design

The switch automatically powers on when connected to a computer. For setups involving power-intensive peripherals, an auxiliary USB-C port is available to connect a power adapter, guaranteeing stable performance and reliability.

Save Time with 5 Gbps
SuperSpeed Data Transfer

One Switch. Unlimited Possibilities.

Slide Content

Home Office

Slide Content

Commercial Office

Slide Content

Shared Workstation

Previous Next

What’s in the Box

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1 x US5324 2 x 4 USB 3.2 Gen 1 Sharing Switch (Host Type: A+C)
  • 1 x USB Type-C to USB Type-A cable
  • 1 x USB Type-C to USB Type-C cable
  • 1 x remote port selector
  • InstaSync ™ Technology
    • Fast USB switching capability that keeps the flow smooth and uninterrupted



  • Four USB Device Sharing Across One USB Type-A and One USB-C Computers
    • Farewell to the need of swapping cables and peripherals between two separate computers



  • 5 Gbps Data Transfer with USB 3.2 Gen 1
    • Up to 5 Gbps SuperSpeed data transfer rates, which is about 10 times faster than the USB 2.0 standard, allow users to transfer large files quickly and efficiently



  • Quick Switch via Built-In Pushbutton and Remote Port Selector
    • Enjoy the hassle-free experience of switching USB peripherals between two systems with just one single press to the button on US4324 or the remote port selector (package included)



  • Compact Enclosure with Accent Lighting
    • Aesthetically pleasing with its accent lighting and a casing so compact that it occupies very little space



  • Hot Pluggable
    • Allows adding / removal of the peripherals/computers connected to the installation without having to power down the switch. Besides, no drivers or software is required



  • OS Independent
    • Compatible with mainstream operating systems including Windows, macOS, and Linux
Computer Connections2
Port SelectionPushbutton / Remote Port Selector
Connectors
Computer2 x USB Type-C Female (Black)
Device3 x USB Type-A Female (Blue)
1 x USB Type-C Female (Black)
Power (Optional)1 x USB Type-C Female (Black)
Remote Port Selector1 x USB Type-C Female (Black)
Cable Length
USB Cable1 x USB 3.2 Gen 1 Type-C to Type-A Cable (1.5 m)
1 x USB 3.2 Gen 1 Type-C to Type-C Cable (1.5 m)
LEDs
Selected2 (Orange)
Power2 (Orange, Bottom Side)
Environmental
Operating Temperature0 – 40 °C
Storage Temperature-20 – 60 °C
Humidity10 – 80 % RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.07 kg ( 0.17 lb )
Dimensions (L x W x H)14.50 x 5.65 x 1.52 cm
(5.71 x 2.22 x 0.6 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
