2-Port True 4K HDMI Splitter

New
VS4812

Your go-to HDMI splitter for home entertainment, workstation, and professional AV.

  • EDID Sync™ – avoids boot-up display issues & optimizes resolutions
  • One HDMI source shares two True 4K displays
  • LPCM 7.1, Dolby® & DTS-HD Master Audio™
  • HDMI out 2 on/off via pushbutton
  • All Features
MSRP:Quote Upon Request

Effortless 2-Way HDMI Distribution Up to True 4K

Stunning True 4K Visuals-Stable, Reliable Dual-Display Output

The VS4812 is a 2-Port True 4K HDMI Splitter designed for home cinema setups, dual-monitor professionals, and localized professional AV applications. It distributes the video stream from a single HDMI source to two displays simultaneously without loss of quality. EDID Sync™ and HDCP 2.2 compliance ensure smooth, hassle-free multi-display operation. With support for HDR10+, 3D formats, and Deep Color, the VS4812 delivers richer contrast and a wider color spectrum for a truly immersive viewing experience.

Aesthetic.
Compact.
Portable.

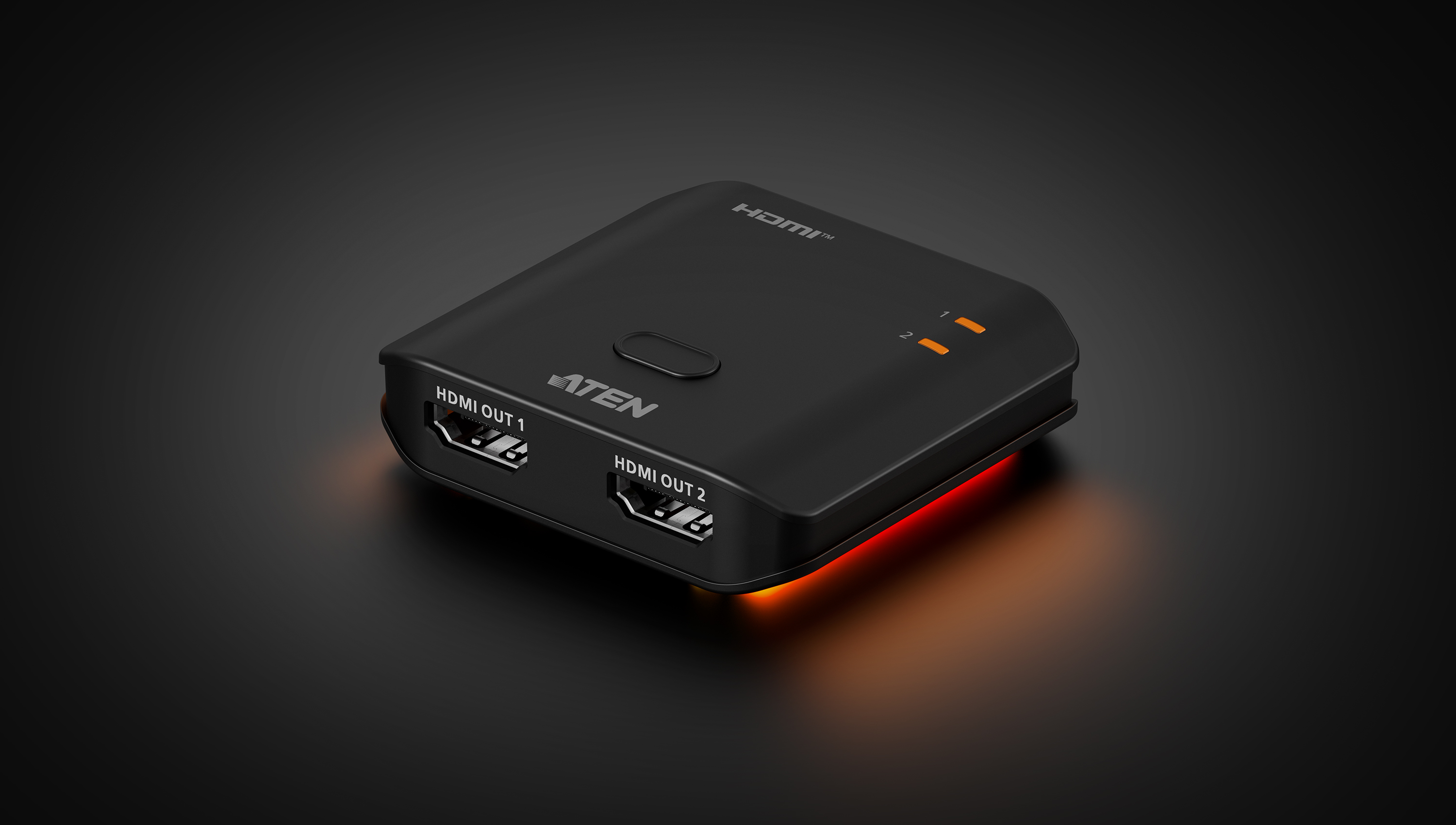

Accent Light

Stay in Sync with a Stylish Glow

True 4K + HDR

Crisp, Ultra High-Def Clarity

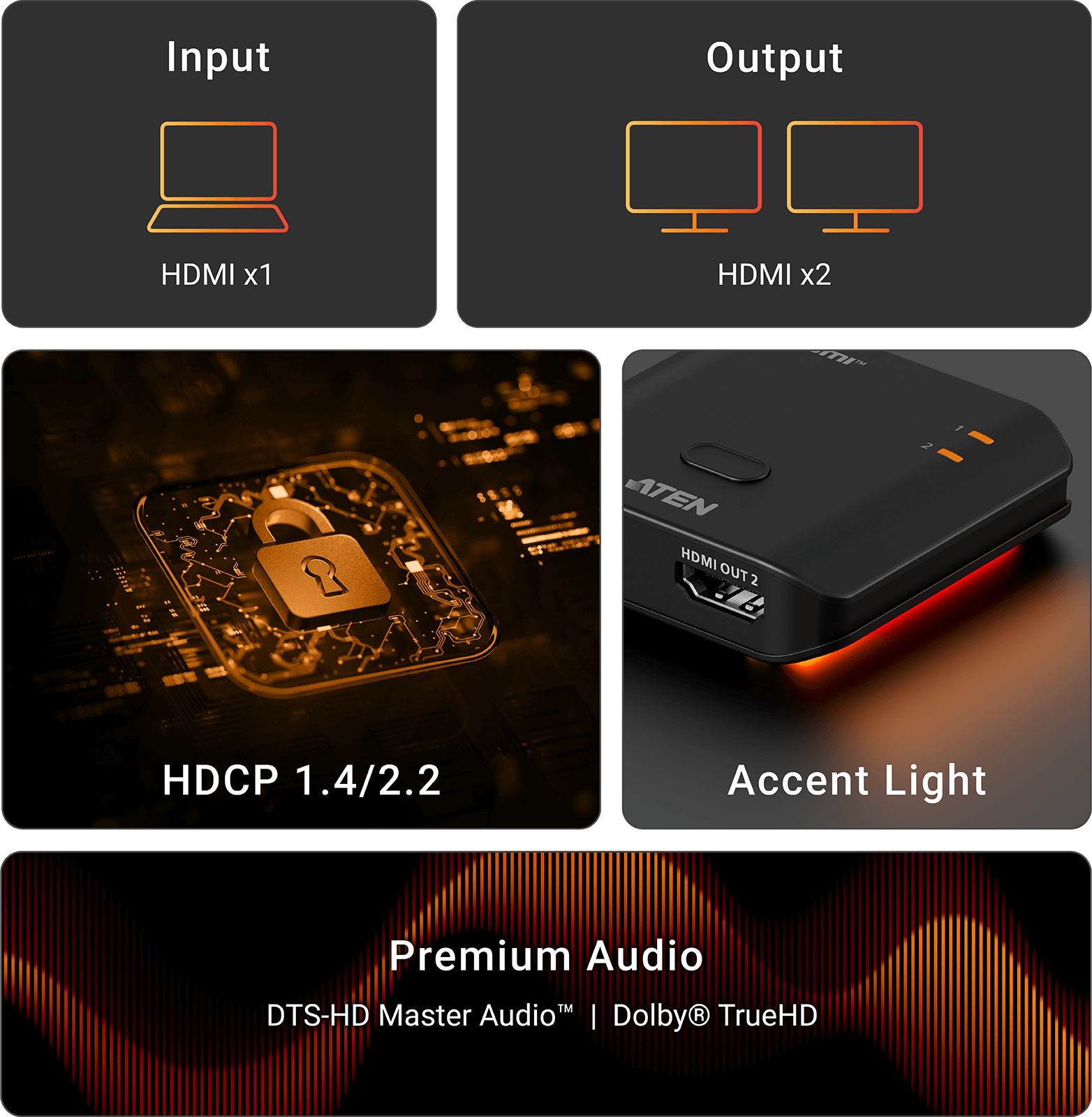

Broad Device Compatibility

Works with a wide range of input and output devices.

One-Touch Screen Off

Switch off the second display with a simple press of the pushbutton.

One Source, Double the Impact with True 4K

What’s in the Box

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1x 2-Port True 4K HDMI Splitter
  • 1x USB power cable (Type-C to Type-A) (1 m)
  • EDID Sync™ Smart Display Optimization
    • Automatically optimizes resolutions and prevents display issues for flawless display presentation



  • True 4K Dual-Display Sharing
    • Shares one HDMI source across two True 4K displays for double the visual impact with uncompromised quality



  • HDMI 3D/Deep Color, HDR10+, HDCP 2.2 Compatible
    • Guarantees stable performance, broad compatibility, and superior image quality



  • Master-Class Audio Immersion
    • Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound



  • Pushbutton Output Control
    • Instantly enables or disables HDMI out 2 with a press of the pushbutton for intuitive, hands-on display management



  • Aesthetic Compact Form
    • Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting

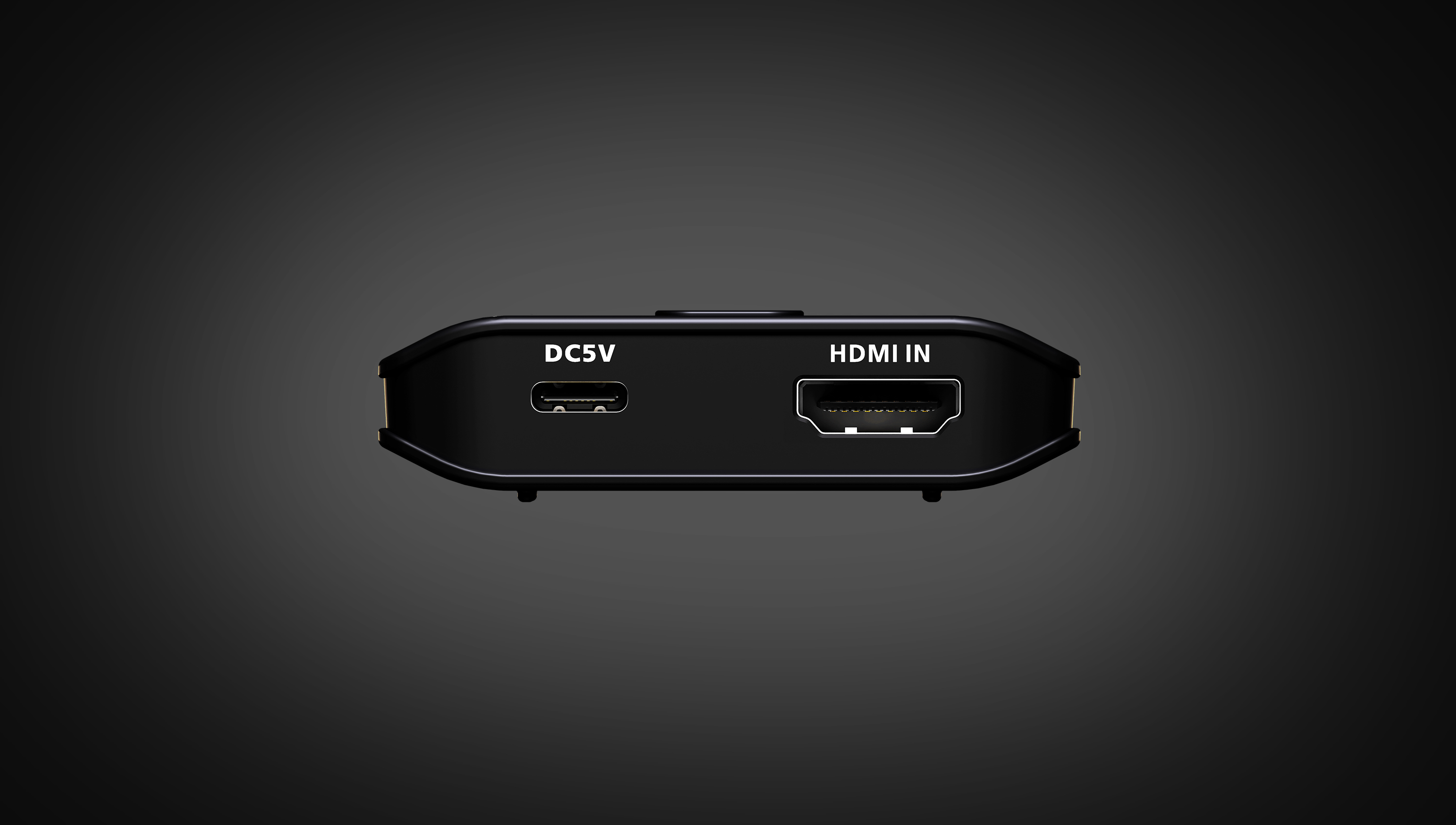

Video Input
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance3m at 3840x2160 @ 60Hz (4:4:4)

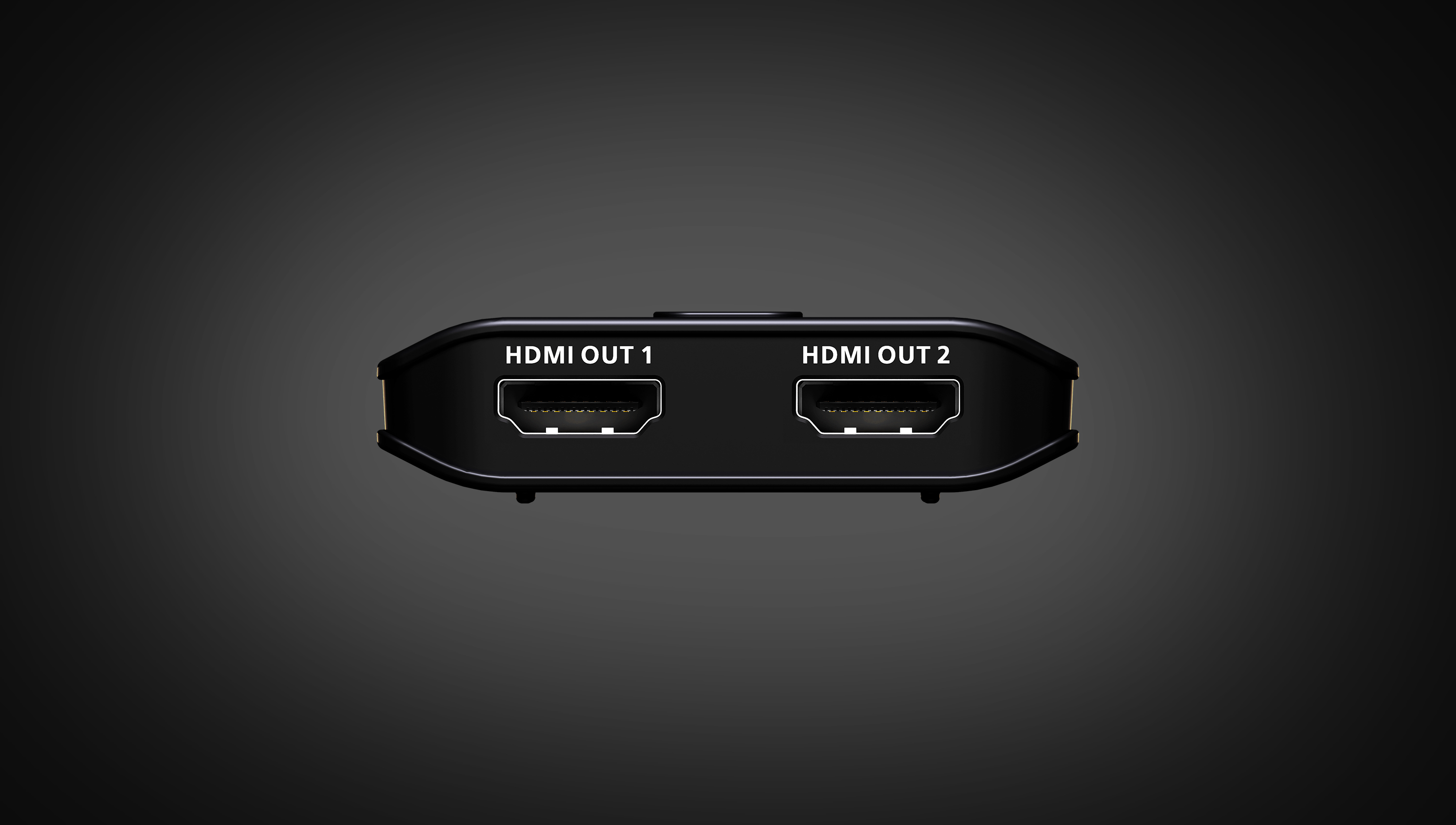

Video Output
Interfaces2 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance3m at 3840x2160 @ 60Hz (4:4:4)
Video
Max. Data Rate18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock600 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP 2.2 Compatible
Max. Resolution3840 x 2160 @ 60Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
Output2 x HDMI Type A Female (Black)
Connectors
Power1 x USB-C (5V/1A)
LEDs
LED Indicator2 x Port Indicator (Orange)
Power2 (Orange, Bottom Side)
Cable Length
USB Cable1 x USB Type-C to Type-A (1m)
Environmental
Operating Temperature0-40 °C
Storage Temperature-20 - 60 °C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPC
Weight0.03 kg ( 0.07 lb )
Dimensions (L x W x H)6.10 x 56.50 x 1.52 cm
(2.4 x 22.24 x 0.6 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
